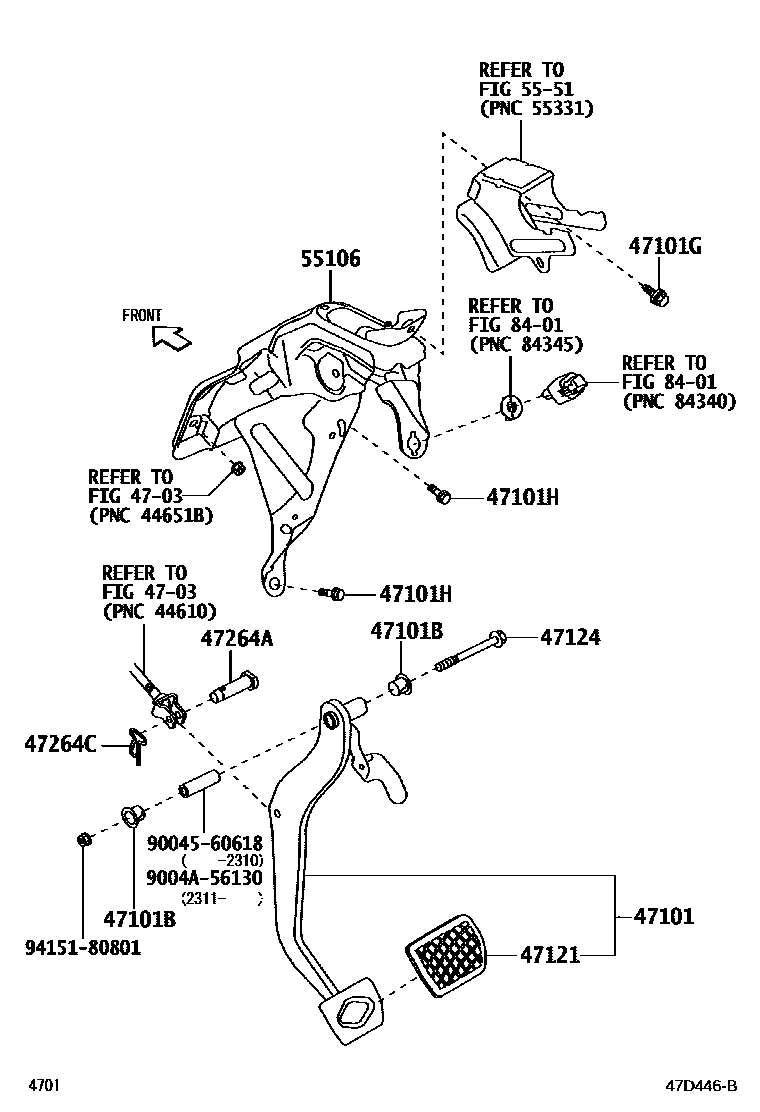

Toyota 618210 — BRAKE PEDAL & BRACKET
4703BRAKE BOOSTER & VACUUM TUBE
47101BBUSH(FOR BRAKE PEDAL)
47101GBOLT, BRAKE PEDAL STOP, NO.1
47101HBOLT, BRAKE PEDAL STOP, NO.2
47121PAD, BRAKE PEDAL
47124SHAFT, BRAKE PEDAL
47264APIN(FOR PUSH ROD)
47264CCLIP(FOR PUSH ROD CLEVIS PIN)
55106SUPPORT SUB-ASSY, BRAKE PEDAL
5551INSTRUMENT PANEL & GLOVE COMPARTMENT
8401SWITCH & RELAY & COMPUTER
9004560618
9004A56130
9415180801
15 parts on this diagram · 1 diagram in section
BRAKE PEDAL & BRACKET for Toyota 618210
This section contains 15 genuine Toyota parts for the BRAKE PEDAL & BRACKET system of the Toyota 618210. Key components include: BRAKE BOOSTER & VACUUM TUBE, PEDAL SUB-ASSY, BRAKE, BUSH(FOR BRAKE PEDAL), BOLT, BRAKE PEDAL STOP, NO.1, BOLT, BRAKE PEDAL STOP, NO.2.
