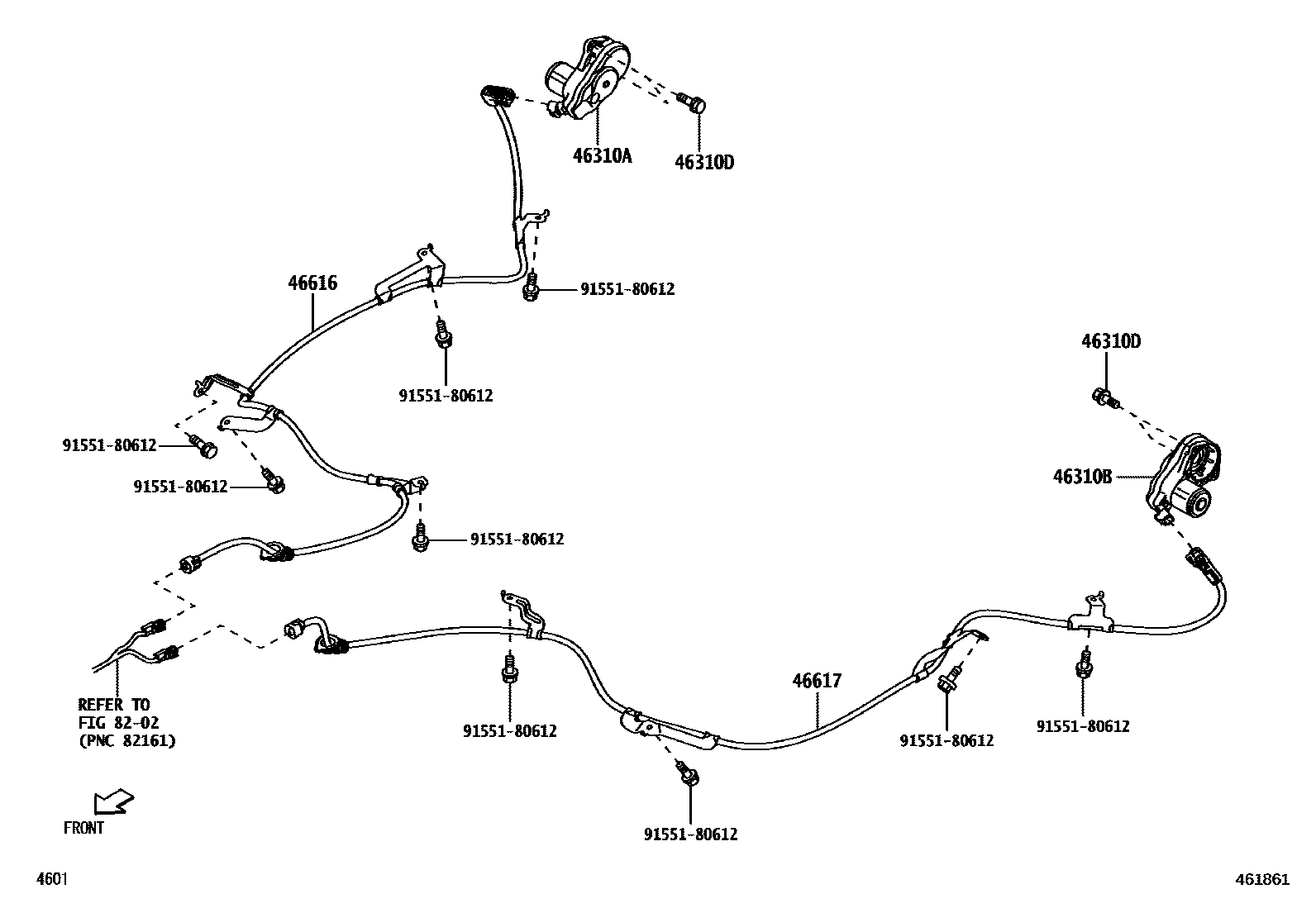

PARKING BRAKE & CABLE

46310AACTUATOR ASSY, PARKING BRAKE, RH

main46310-B1030iW151202206

46310BACTUATOR ASSY, PARKING BRAKE, LH

main46310-B1030iW151202206

46310DBOLT(FOR PARKING BRAKE ACTUATOR)

main46791-B1010×4iW151202206

46616WIRE, PARKING BRAKE, RH

main890C0-BZ010iW151202206

46617WIRE, PARKING BRAKE, LH

main890C0-BZ020iW151202206

8202WIRING & CLAMP

→ Go to FIG 82-02

9155180612

main91551-80612

7 parts on this diagram · 1 diagram in section
