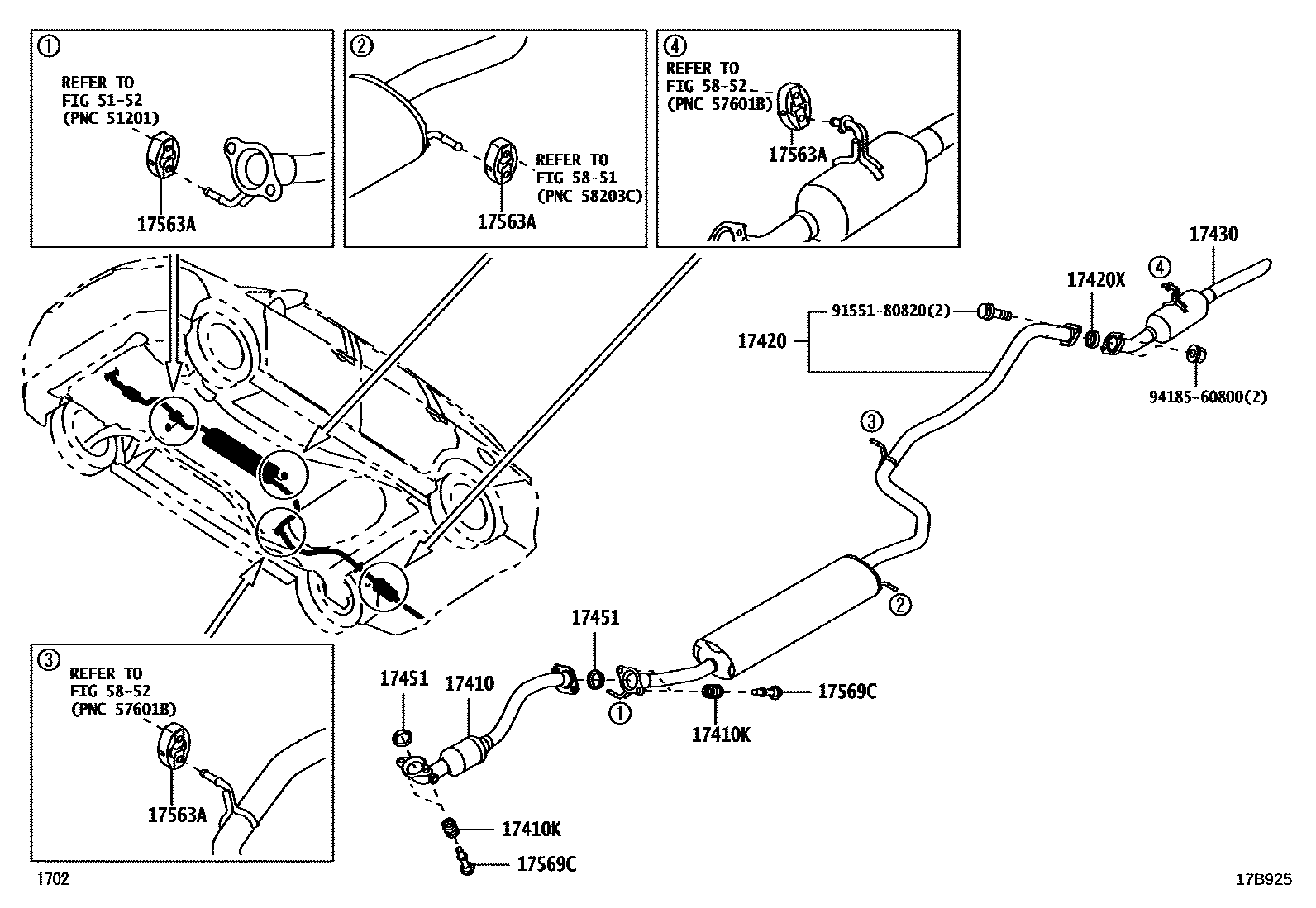

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-BZA90i2NRVE..W151202206

ID NO. = BZ510

17410KSPRING, EXHAUST PIPE

main17152-BZ010×4i2NRVE..W151202206

17420PIPE ASSY, EXHAUST, CENTER

main17420-BZ030i2NRVE..W151202206

17420XGASKET, EXHAUST PIPE, CENTER

main90917-06048i2NRVE..W151202206

17430PIPE ASSY, EXHAUST, TAIL

main17430-BZ550i2NRVE..W151202206

17451GASKET, EXHAUST PIPE

main17451-B1010×2i2NRVE..W151202206

17563ASUPPORT, EXHAUST PIPE, NO.3

main17567-B2020×4i2NRVE..W151202206

17569CBOLT, EXHAUST PIPE SUPPORT

main90901-05026×4i2NRVE..W151202206

5152SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-52

5851FRONT FLOOR PANEL & FRONT FLOOR MEMBER

→ Go to FIG 58-51

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

9155180820

main91551-80820

9418560800

main94185-60800

13 parts on this diagram · 1 diagram in section
