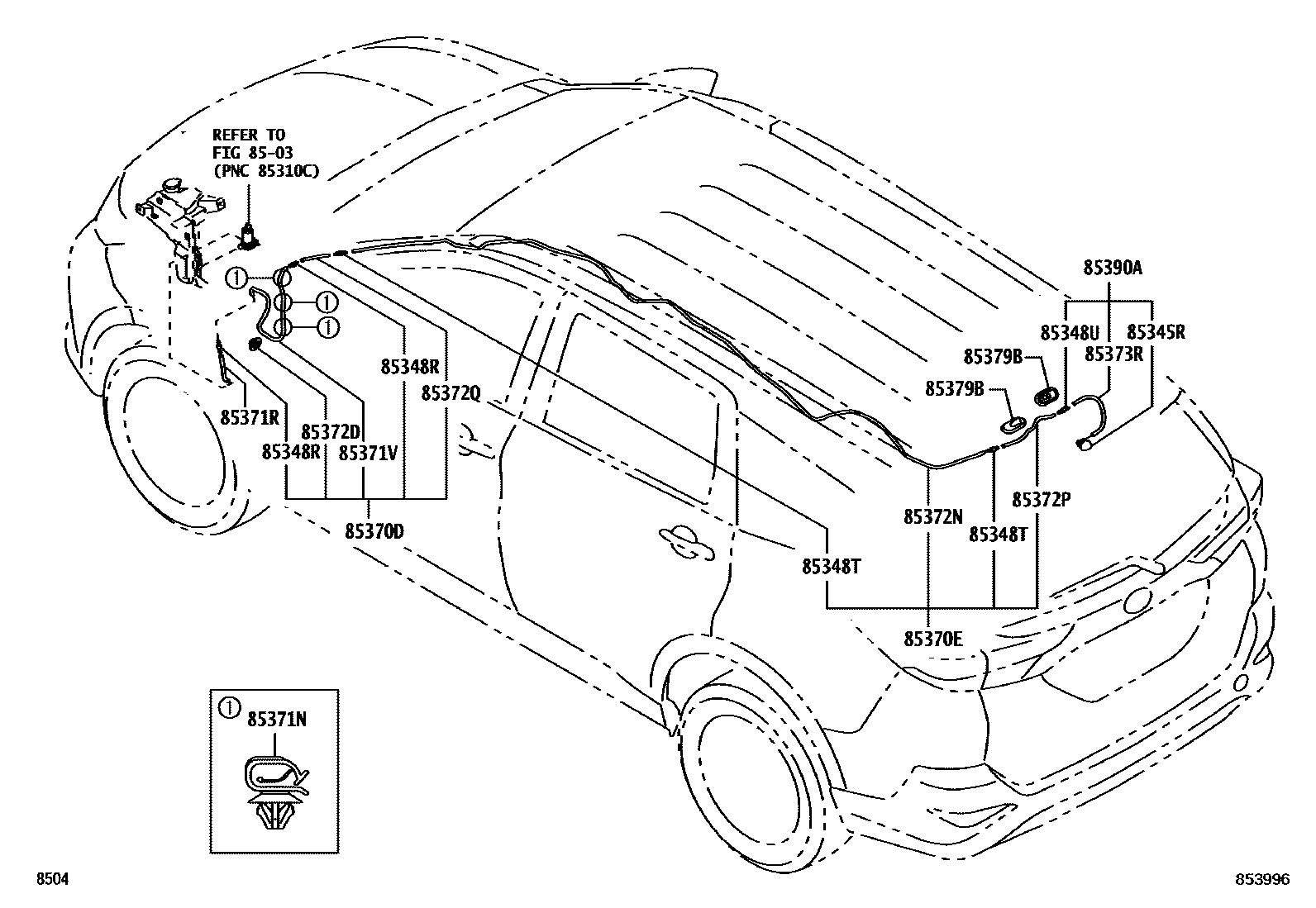

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85345RNOZZLE, REAR WASHER

main85391-BZ120iF850201812-202310

85348RJOINT, REAR WASHER HOSE, NO.1

main85317-BZ080×2iF850201812-202310

85348TJOINT, REAR WASHER HOSE, NO.2

main85317-BZ080×2iF850201812-202310

85348UJOINT, REAR WASHER HOSE, NO.3

main85317-BZ080iF850201812-202310

85370DHOSE ASSY, REAR WASHER, NO.1

main85370-BZB20iF850201812-202310

85370EHOSE ASSY, REAR WASHER, NO.2

main85370-BZB30iF850201812-202310

85371NCLAMP, REAR WASHER HOSE

main82711-B2010×3iF850201812-202310

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main85374-BZA60iF850201812-202310

*H,L=100

85371VHOSE, REAR WASHER (FROM JOINT TO JOINT)

main85374-BZE40iF850201812-202310

*H,L=690

85372DGROMMET, REAR WASHER HOSE

main90044-80126iF850201812-202310

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main85374-BZE60iF850201812-202310

*H,L=3000

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main85374-BZF60iF850201812-202310

*H,L=270

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main85374-BZE50iF850201812-202310

*H,L=110

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main85374-BZ370iF850201908-202310

*H,L=210

main85374-BZE80iF850201812-201907

*H,L=240

85379BGROMMET, WASHER, A

main85373-BZ070×2iF850201812-202310

85390ANOZZLE & HOSE ASSY, RR WASHER

main85390-BZ250iF850201812-202310

17 parts on this diagram · 1 diagram in section
