WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1DOOR & ROOF 0005 1FLOOR 0006 1FUEL

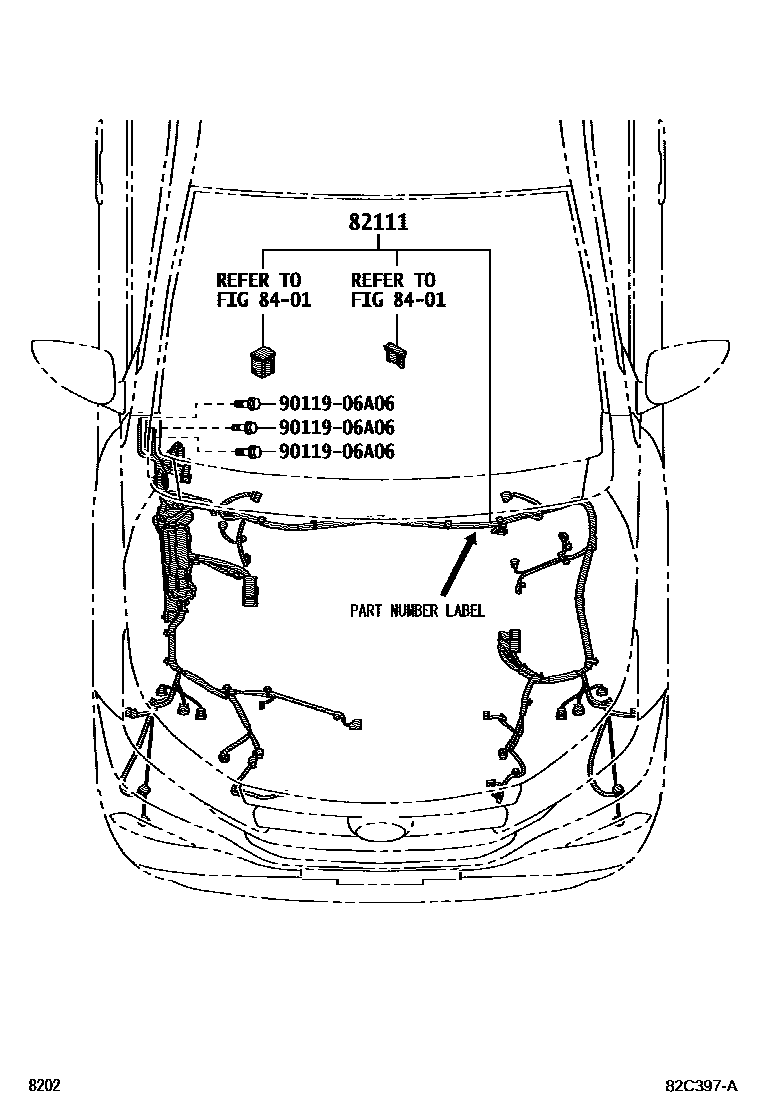

82111WIRE, ENGINE ROOM MAIN

main82111-BZZ80iF850201812-202201

main82111-BZZ81iF850202202-202310

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011906A06

main90119-06A06

3 parts on this diagram · 6 diagrams in section
