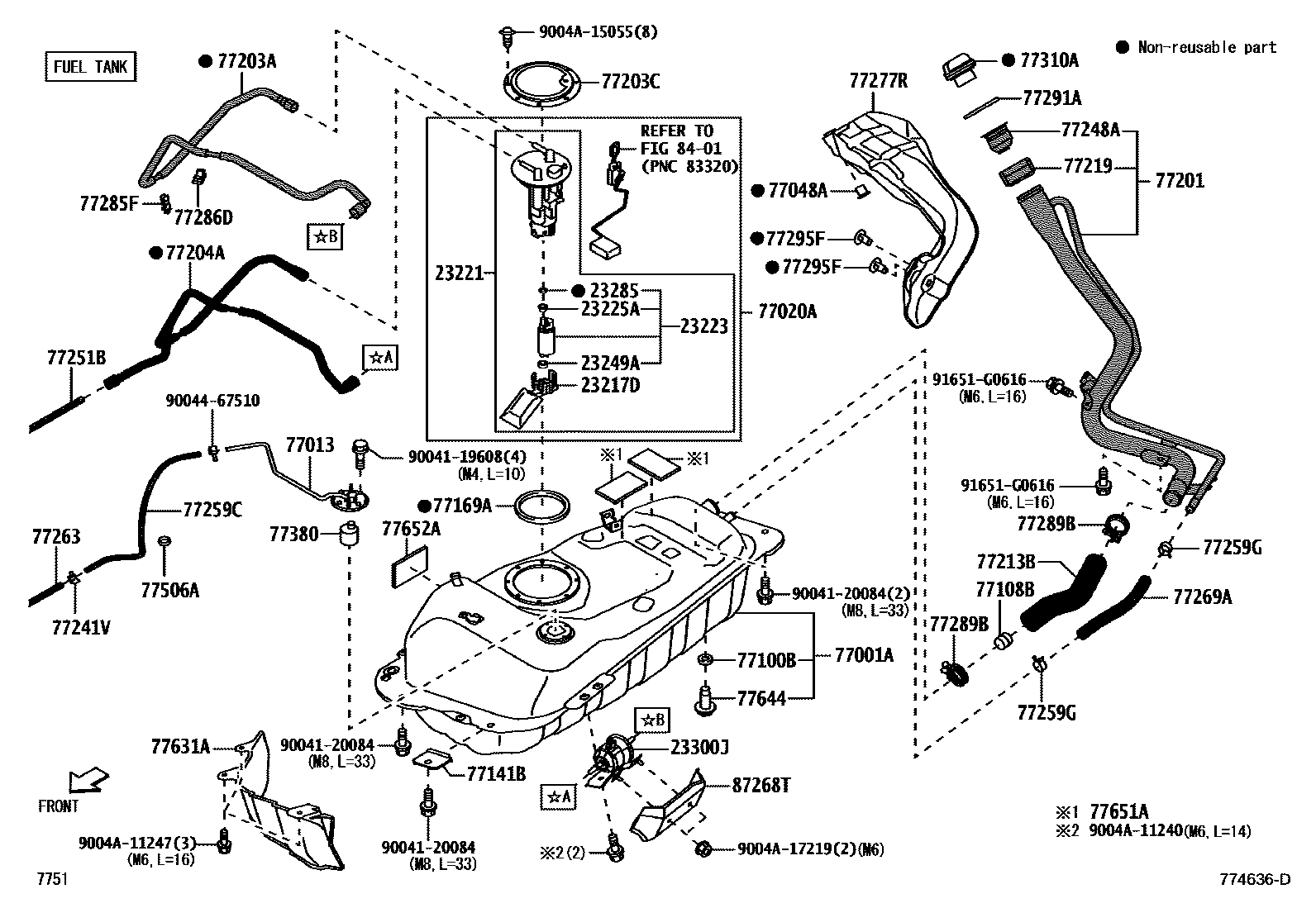

FUEL TANK & TUBE
23217DFILTER, FUEL PUMP
23221PUMP, FUEL
23223PUMP, FUEL, NO.2
23225ASPACER, FUEL PUMP
23249ARUBBER, CUSHION(FOR FUEL PUMP)
23285RING, O
23300JFILTER ASSY, FUEL
77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2
77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE
77048ACLIP (FOR FUEL INLET PIPE SEAL)
77100BGASKET(FOR FUEL TANK)
77108BVALVE SUB-ASSY, FUEL TANK FILLER CHECK
77141BREINFORCEMENT, FUEL TANK FLANGE, NO.1
77169AGASKET, FUEL SUCTION TUBE SET
77201PIPE SUB-ASSY, FUEL TANK INLET
77203ATUBE SUB-ASSY, FUEL SUCTION
77203CBRACKET, FUEL PUMP
77204ATUBE, FUEL TANK RETURN
77213BHOSE, FUEL TANK TO FILLER PIPE
77219COVER, FUEL TANK FILLER PIPE
77241VCLIP, TUBE JOINT
77248AHOLDER, FUEL TANK FILLER PIPE COVER
77251BTUBE, FUEL MAIN
77259CHOSE, FUEL
77259GCLIP, FUEL HOSE
77263TUBE, FUEL TANK TO CANISTER, NO.3
77269AHOSE, FUEL TANK BREATHER
77277RPROTECTOR, FUEL TANK FILLER PIPE
77285FCLAMP, FUEL TUBE, NO.1
77286DCLAMP, FUEL TUBE, NO.2
77289BCLAMP, FUEL TUBE, NO.3
77291ASHIELD, FUEL TANK FILLER PIPE
77295FGROMMET, FUEL HOSE
77310ACAP ASSY, FUEL TANK
77380VALVE ASSY, FUEL CUT OFF
77506ACLAMP, FUEL TANK BAND SHIM
77631APROTECTOR, FUEL TANK, LOWER CENTER
77644BOLT, FUEL TANK
77651ACUSHION, FUEL TANK, NO.1
77652ACUSHION, FUEL TANK, NO.2
8401SWITCH & RELAY & COMPUTER
87268TPROTECTOR, NO.1
9004119608
main90041-19608
9004120084
main90041-20084
9004467510
main90044-67510
9004A11240
main9004A-11240
9004A11247
main9004A-11247
9004A15055
main9004A-15055
9004A17219
main9004A-17219
91651G0616
main91651-G0616
51 parts on this diagram · 3 diagrams in section
