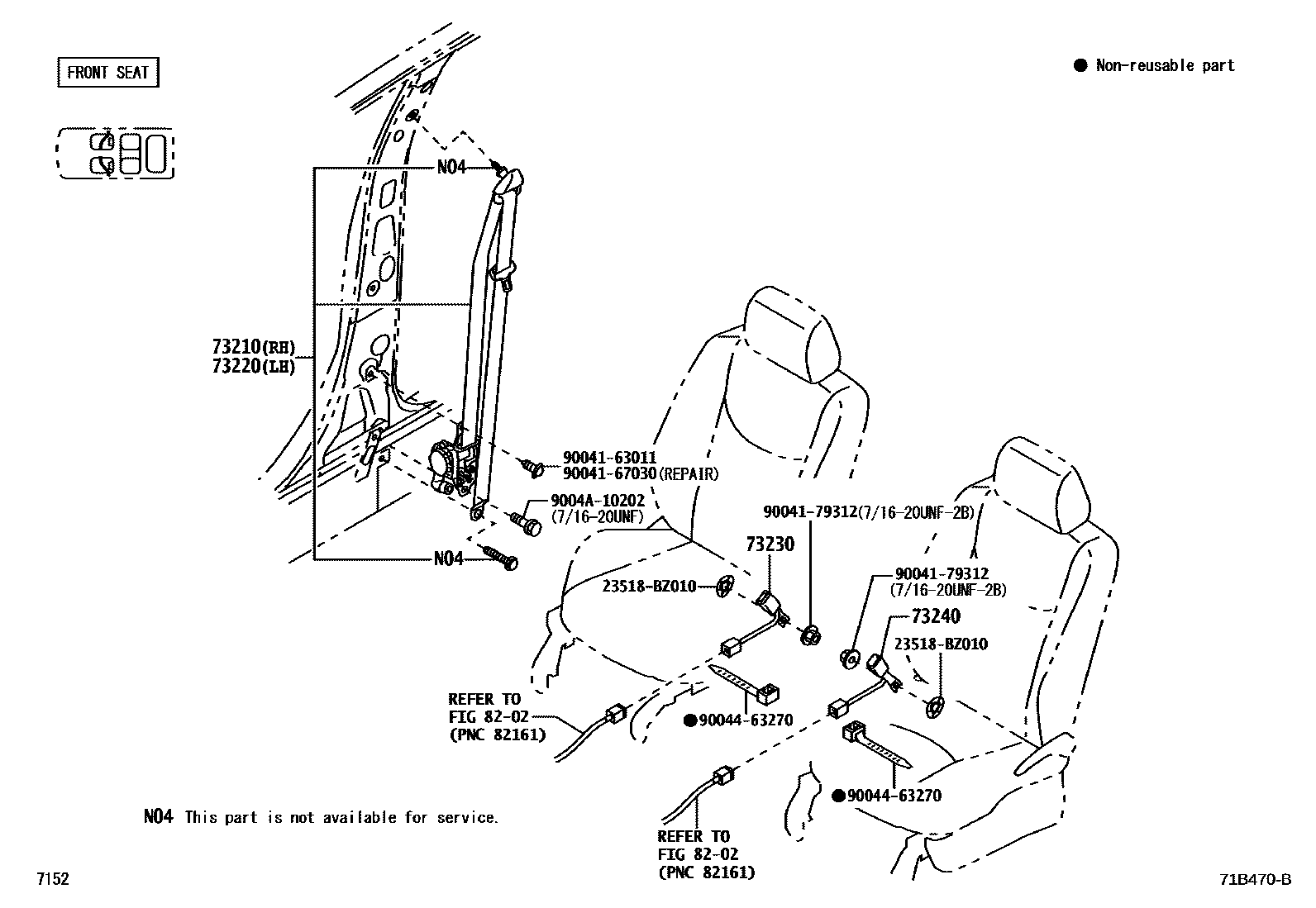

SEAT BELT

0001 1FRONT SEAT 0002 1REAR NO.1 SEAT 0003 1REAR NO.2 SEAT

73210BELT ASSY, FRONT SEAT OUTER, RH

main73210-BZ630-B2iF850201812-202310

SHADOW GRAY,TRIM1#

73220BELT ASSY, FRONT SEAT OUTER, LH

main73220-BZ610-B2iF850201812-202310

SHADOW GRAY,TRIM1#

73230BELT ASSY, FRONT SEAT INNER, RH

main73230-BZ710-C0iF850201812-202310

BLACK,TRIM1#

73240BELT ASSY, FRONT SEAT INNER, LH

main73230-BZA90-C0iF850201812-202310

BLACK,TRIM1#

8202WIRING & CLAMP

→ Go to FIG 82-02

23518BZ010WASHER, WAVE(FOR ELASTIC FACE VALVE SET)

main23518-BZ010

9004163011

main90041-63011

9004167030

main90041-67030

9004179312

main90041-79312

9004463270

main90044-63270

9004A10202

main9004A-10202

11 parts on this diagram · 3 diagrams in section
