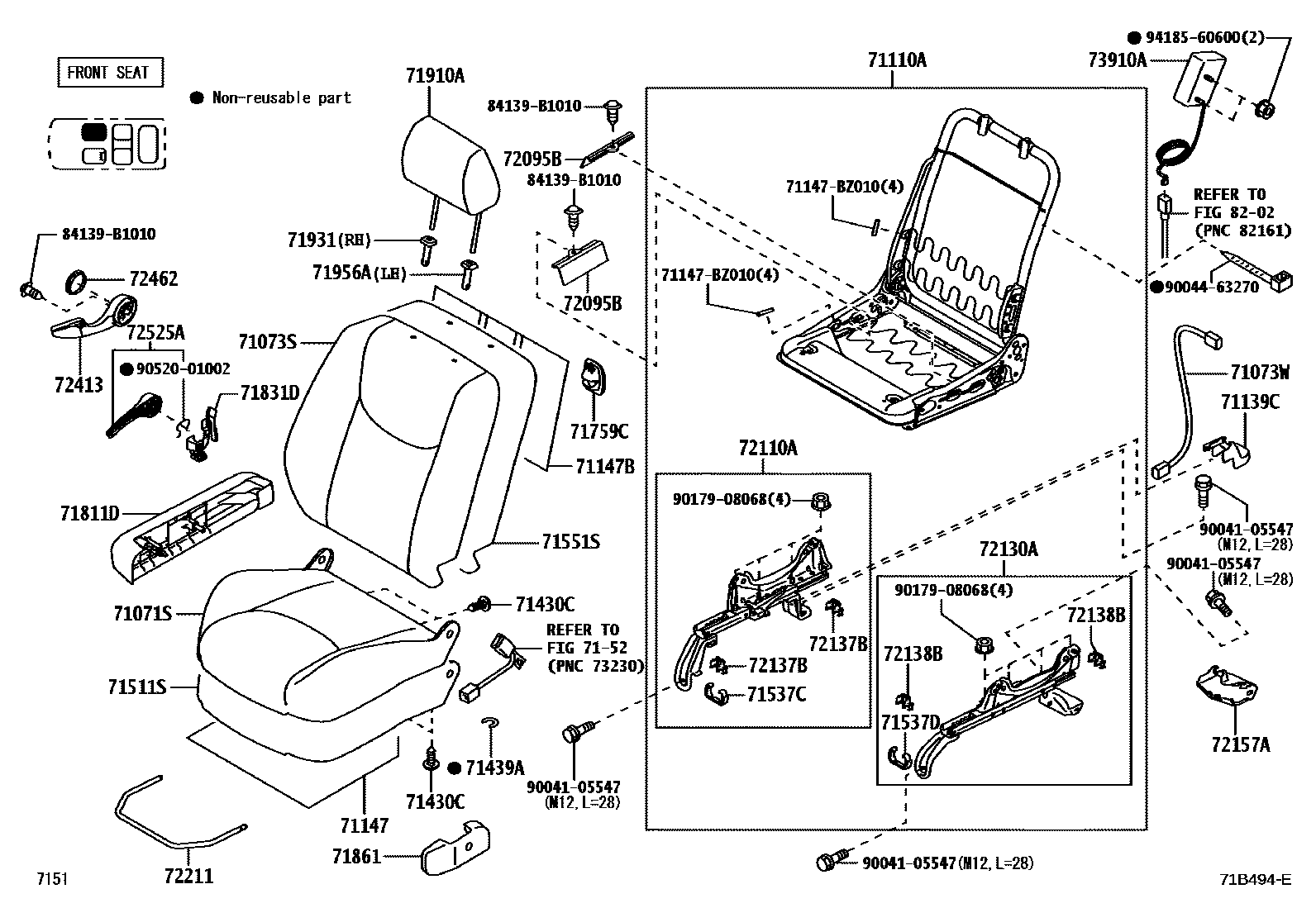

SEAT & SEAT TRACK

0001 1FR RH 0002 1FR LH 0003 1RR NO.1/RH 0004 1RR NO.1/LH 0005 1RR NO.2/RH 0006 1RR NO.2/LH

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-BZK90-C1iF850..EXT201812-202310

BLACK,TRIM1#

main71071-BZL90-C0iF850..HI201812-202310

BLACK,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-BZM00-C1iF850..EXT201812-202310

BLACK,TRIM1#

main71073-BZN10-C0iF850..HI201812-202310

BLACK,TRIM1#

71073WWIRE, FRONT SEATBACK COVER

main78757-BZ010iF850201812-202310

71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH

main71110-BZ290iF850201812-202310

71139CCOVER, FRONT SEAT LEG, RH

main71139-BZ050-C0iF850201812-202310

BLACK,TRIM1#

71147SILENCER, SEAT SPRING

main71147-B1020×2iF850201812-202310

71147BSILENCER, SEAT SPRING

main71147-B2030×2iF850..HI201812-202310

main71147-BZ071×2iF850..EXT201812-202310

71430CCLIP

main90044-68185-C1×8iF850..EXT; F850..HI201812-202310

BLACK,TRIM1#

71439ACLIP

main71812-87Z03×52iF850..EXT201812-202310

main9004A-46143×56iF850..HI201812-202310

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-BZ470iF850201812-202310

7152SEAT BELT

→ Go to FIG 71-52

71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH

main71537-BZ030iF850201812-202310

71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH

main71537-BZ030iF850201812-202310

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-BZ500iF850201812-202310

71759CHOOK, FRONT SEATBACK, NO.1

main71759-BZ010-C0×2iF850201812-202310

BLACK,TRIM1#

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-BZ030-C0iF850201812-202310

BLACK,TRIM1#

71831DCOVER, FRONT SEAT HINGE, RH

main71831-BZ040-C0iF850201812-202310

BLACK,TRIM1#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-BZ120-C0iF850201812-202310

BLACK,TRIM1#

71910AHEADREST ASSY, FRONT SEAT

main71910-BZE50-C1iF850..EXT201812-202310

BLACK,TRIM1#

main71910-BZF70-C0iF850..HI201812-202310

BLACK,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71931-BZ070-C0iF850201812-202310

W/O(LOCK),BLACK,TRIM1#,RH

71956SUPPORT, HEADREST

main71931-BZ070-C0iF850201812-202310

BLACK,TRIM1#,RH

71956ASUPPORT, FRONT SEAT HEADREST

main71930-BZ060-C0iF850201812-202310

W(LOCK),BLACK,TRIM1#,LH

72095BPLATE SUB-ASSY, FRONT SEAT, RH

main71127-BZ010×2iF850201812-202310

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-BZ210iF850201812-202310

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-BZ180iF850201812-202310

72137BCOVER, SEAT TRACK, RH

main72137-BZ040×2iF850201812-202310

72138BCOVER, SEAT TRACK, LH

main72137-BZ040×2iF850201812-202310

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-BZ070-C0iF850201812-202310

BLACK,TRIM1#

72211HANDLE, SEAT TRACK ADJUSTING

main72211-BZ140iF850201812-202310

72413LEVER, VERTICAL ADJUSTER LOCK

main72413-BZ030-C0iF850..HI201812-202310

BLACK,TRIM1#

main72413-BZ060iF850..EXT201812-202310

72462COVER, VERTICAL ADJUSTER RH

main72462-BZ050-C0iF850201812-202310

BLACK,TRIM1#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-BZ110-C0iF850201812-202310

BLACK,TRIM1#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-B1050iF850201812-202310

8202WIRING & CLAMP

→ Go to FIG 82-02

71147BZ010SILENCER, SEAT SPRING

main71147-BZ010

84139B1010

main84139-B1010

9004105547

main90041-05547

9004463270

main90044-63270

9017908068

main90179-08068

9052001002

main90520-01002

9418560600

main94185-60600

41 parts on this diagram · 6 diagrams in section
