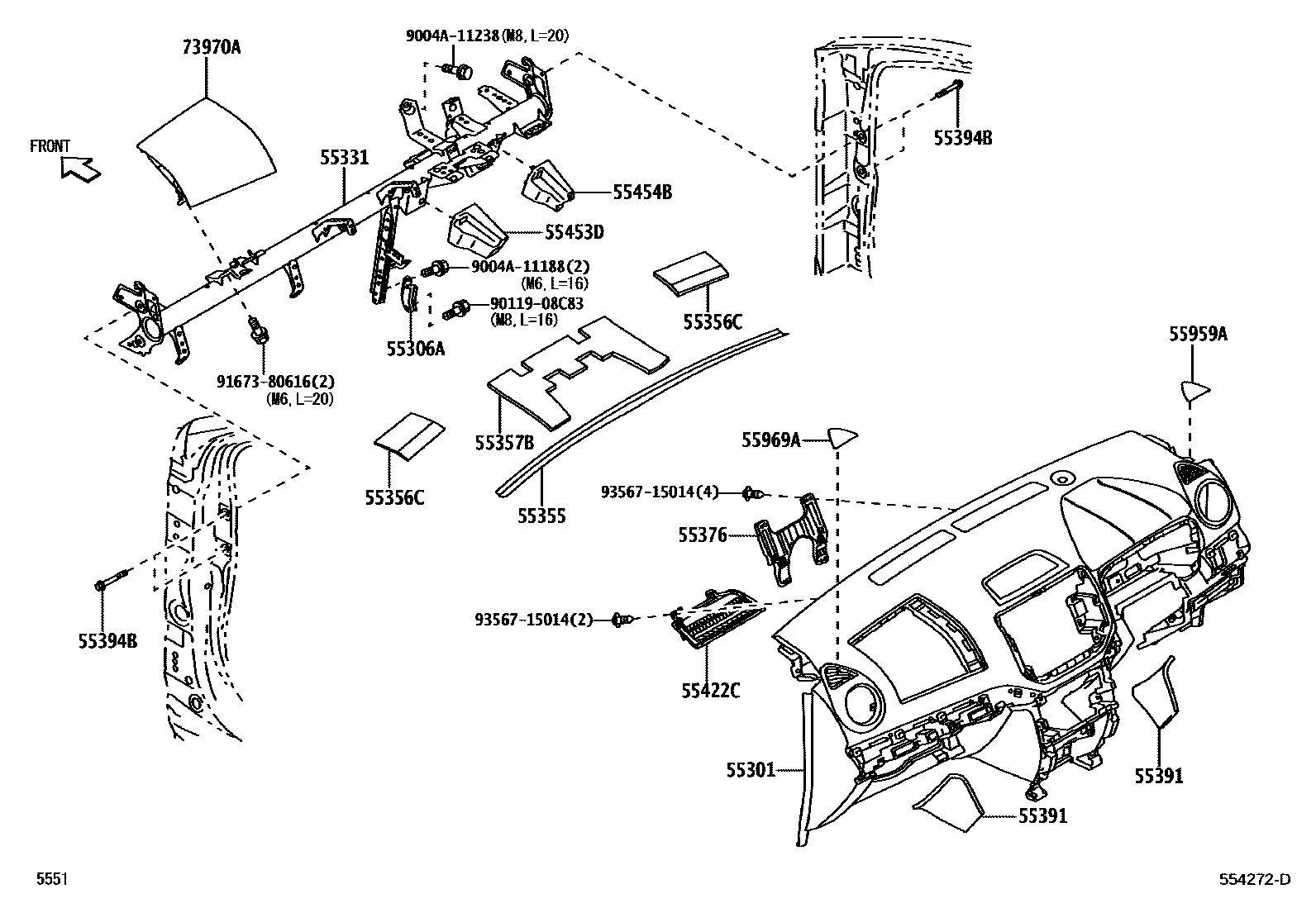

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1 0005 1

55301PANEL SUB-ASSY, INSTRUMENT

main55311-BZ660-C0iF850201812-202310

BLACK,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-BZ180iF850201812-202310

55331REINFORCEMENT, INSTRUMENT PANEL

main55305-BZ590iF850201812-202310

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-BZ110iF850201812-202310

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-BZ160×2iF850201812-202310

55357BCUSHION, INSTRUMENT PANEL, NO.3

main55357-BZ140iF850201812-202310

55376BRACKET, INSTRUMENT PANEL MOUNTING, NO.1

main55376-BZ150iF850201812-202310

55391CUSHION, INSTRUMENT PANEL, LOWER NO.1

main55391-BZ030×2iF850201812-202310

55394BBOLT, INSTRUMENT PANEL

main55394-BZ020×4iF850201812-202201

main90041-19A09×4iF850202202-202310

55422CPANEL, INSTRUMENT CLUSTER FINISH, CENTER UPPER

main55422-BZ070-C0iF850201812-202310

BLACK,TRIM1#

55453DPAD, INSTRUMENT PANEL SAFETY, NO.1

main55453-BZ040iF850201812-202310

55454BPAD, INSTRUMENT PANEL SAFETY, NO.2

main55454-BZ050iF850201812-202310

55959ACOVER, DEFROSTER NOZZLE OPENING, NO.1

main55959-BZ050-C0iF850201812-202310

BLACK,TRIM1#

55969ACOVER, DEFROSTER NOZZLE OPENING, NO.2

main55969-BZ030-C0iF850201812-202310

BLACK,TRIM1#

73970AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER

main73970-BZ240-C0iF850201812-202310

BLACK,TRIM1#

9004A11188

main9004A-11188

9004A11238

main9004A-11238

9011908C83

main90119-08C83

9167380616

main91673-80616

9356715014

main93567-15014

20 parts on this diagram · 5 diagrams in section
