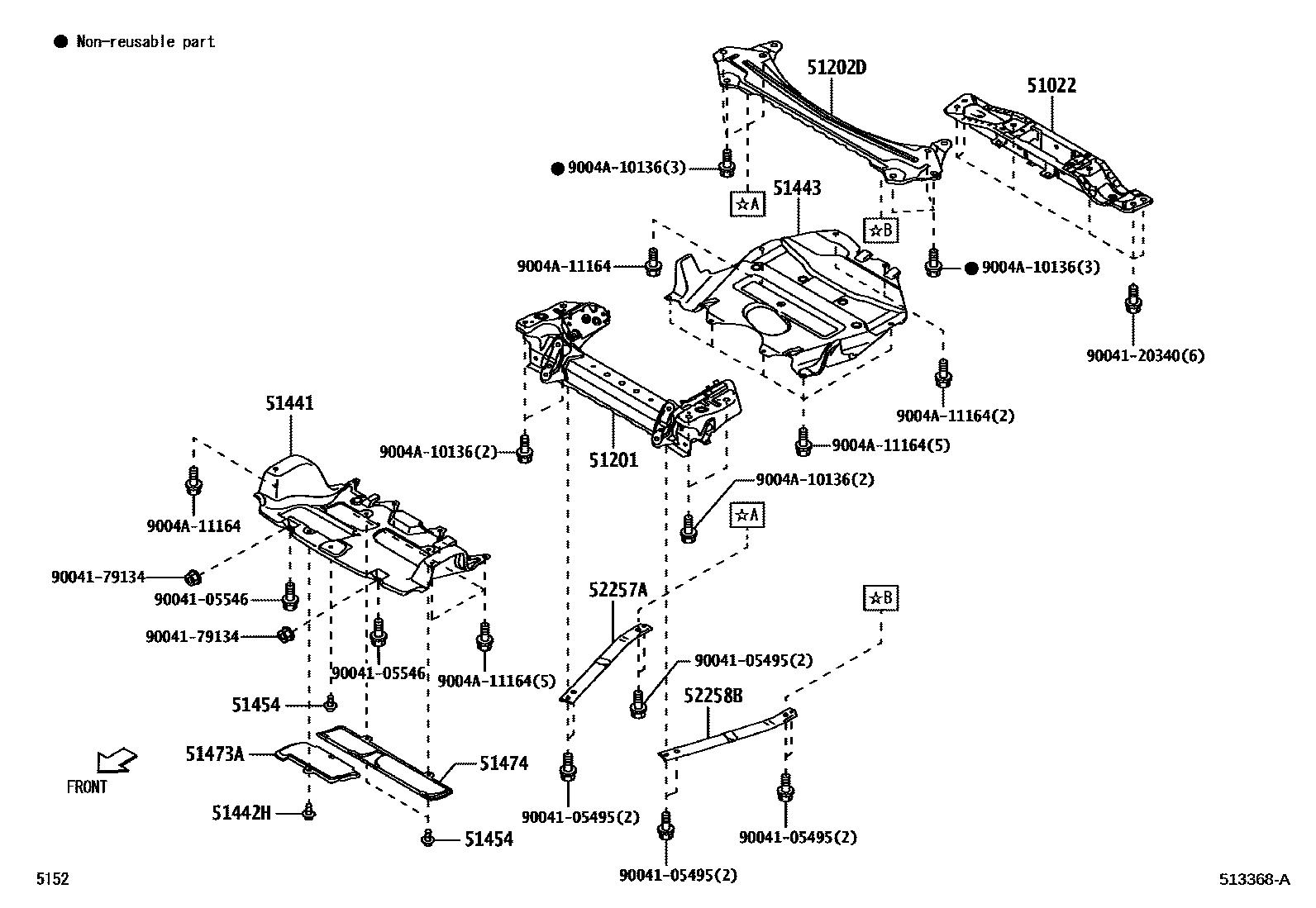

SUSPENSION CROSSMEMBER & UNDER COVER

51022MEMBER SUB-ASSY, ENGINE REAR SUPPORT

main51022-BZ030iF850201812-202310

51201CROSSMEMBER SUB-ASSY, FRONT SUSPENSION

main51210-BZ142iF850201812-202310

51202DCROSSMENBER SUB-ASSY, FRONT SUSPENSION, LOWER

main51202-BZ140iF850201812-202310

51441COVER, ENGINE UNDER, NO.1

main51441-BZ240iF850201812-202310

51442HCLIP, ENGINE UNDER COVER, NO.2

main9004A-46323iF850201812-202310

51443COVER, ENGINE UNDER, REAR RH

main51443-BZ080iF850201812-202310

51454CLIP

main9004A-46323×3iF850201812-202310

51473ACOVER SUB-ASSY, ENGINE SIDE, RH

main51473-BZ020iF850201812-202310

51474COVER SUB-ASSY, ENGINE SIDE, LH

main51474-BZ030iF850201812-202310

52257ABRACE, FRONT SUSPENSION MEMBER, REAR RH

main52257-BZ050iF850201812-202310

52258BBRACE, FRONT SUSPENSION MEMBER, REAR LH

main52258-BZ050iF850201812-202310

9004105495

main90041-05495

9004105546

main90041-05546

9004120340

main90041-20340

9004179134

main90041-79134

9004A10136

main9004A-10136

9004A11164

main9004A-11164

17 parts on this diagram · 1 diagram in section
