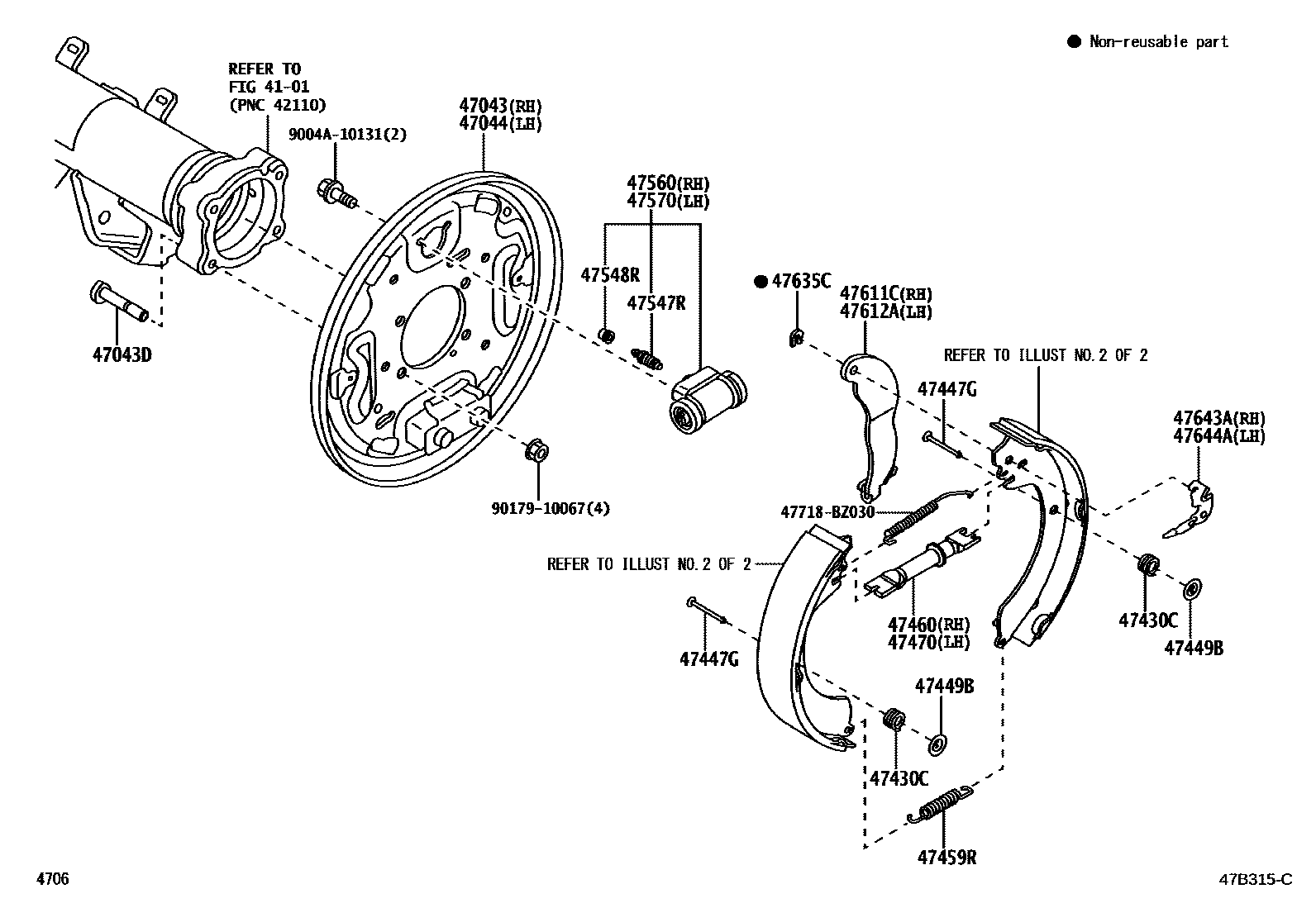

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

0001 1 0002 1

4101REAR AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 41-01

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-BZ150iF850201812-202310

47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main46791-BZ020×8iF850201812-202310

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-BZ160iF850201812-202310

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main47446-BZ070×4iF850201812-202310

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-87603×4iF850201812-202310

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-BZ030×4iF850201812-202310

47459RSPRING, SHOE RETURN(FOR REAR BRAKE)

main47459-BZ130×2iF850201812-202310

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47460-BZ050iF850201812-202106

main47460-BZ100iF850202107-202310

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47470-BZ050iF850201812-202106

main47470-BZ100iF850202107-202310

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-BZ120×2iF850201812-202310

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main47548-BZ080×2iF850201812-202310

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-BZ011iF850201812-202310

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47560-BZ011iF850201812-202310

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-BZ070iF850201812-202310

47612ALEVER, PARKING BRAKE SHOE, LH

main47612-BZ070iF850201812-202310

47635CRETAINER, ADJUSTING BOLT SPRING

main47635-BZ030×2iF850201812-202310

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-BZ040iF850201812-202310

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-BZ040iF850201812-202310

47718BZ030SPRING, FRONT DISC BRAKE CYLINDER SUPPORT

main47718-BZ030

9004A10131

main9004A-10131

9017910067

main90179-10067

22 parts on this diagram · 2 diagrams in section
