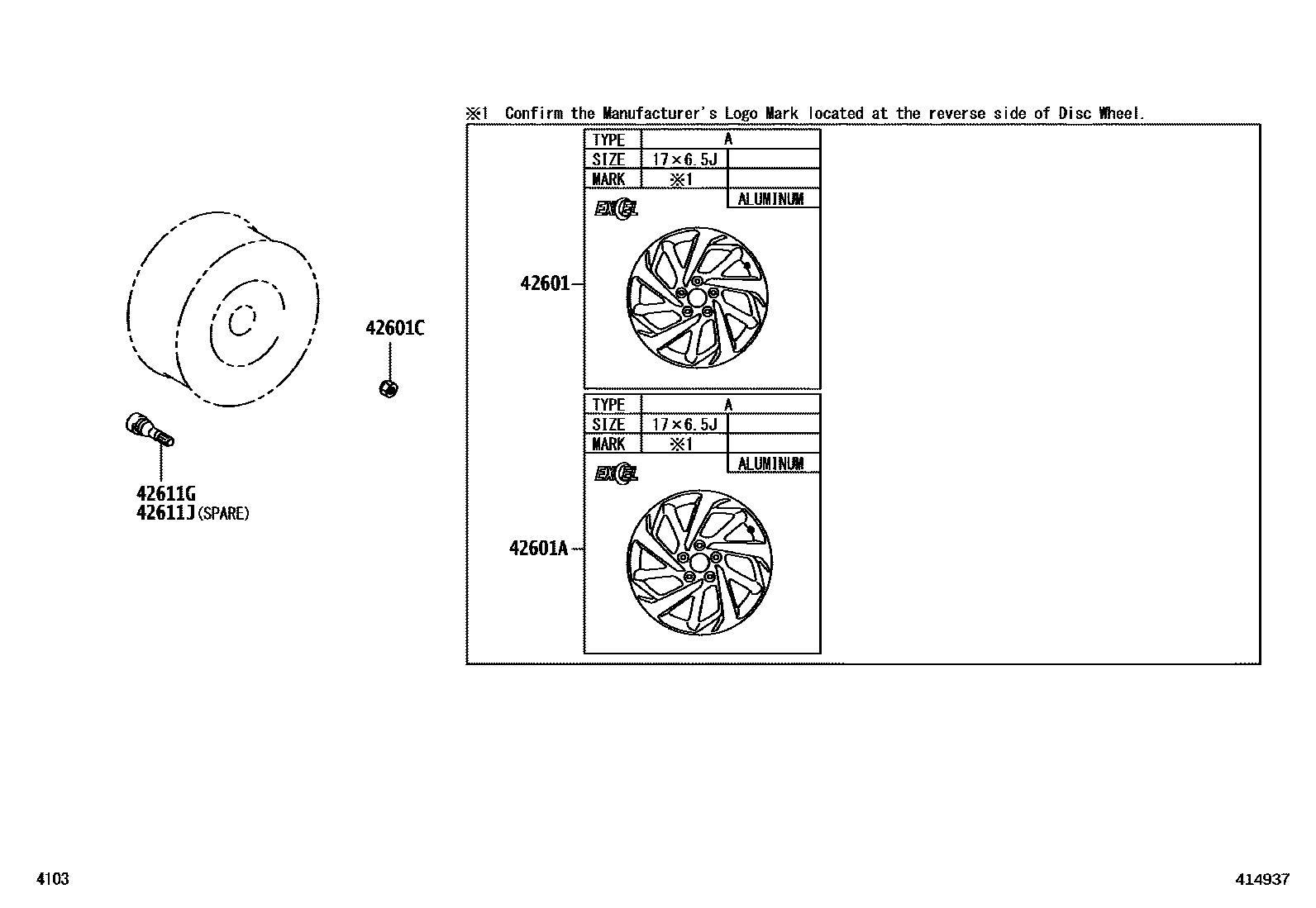

DISC WHEEL & WHEEL CAP

0001 1DISC WHEEL 0002 1ONAMENT 0003 1BALANCE WEIGHT

42601WHEEL, DISC

main42611-BZB70iF850201812-202310

17X6.5J(AL),TYPE A EXCEL

42601AWHEEL, DISC (FOR SPARE)

main42611-BZB70iF850201812-202310

17X6.5J(AL),TYPE A EXCEL

42601CNUT, HUB (FOR AXLE)

main9004A-94084iF850201903-202310

main9004A-94124iF850201812-201902

42611GVALVE (FOR TUBELESS TIRE)

main9004A-94004iF850201812-202310

42611JVALVE (FOR TUBELESS TIRE SPARE)

main9004A-94004iF850201812-202310

5 parts on this diagram · 3 diagrams in section
