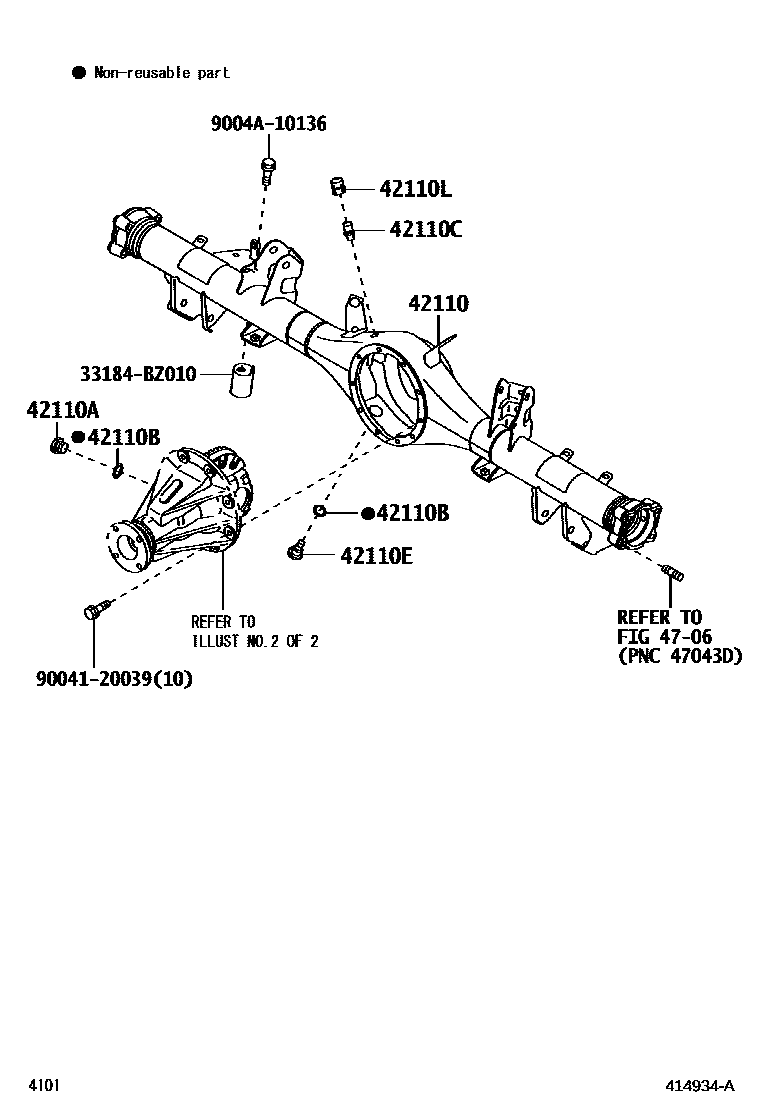

REAR AXLE HOUSING & DIFFERENTIAL

0001 1 0002 1

42110HOUSING ASSY, REAR AXLE

main42110-BZ330iF850201812-202310

42110APLUG (FOR REAR AXLE HOUSING FILLER)

main90043-41046iF850201812-202310

42110BGASKET (FOR REAR AXLE HOUSING FILLER PLUG)

main90044-30237×2iF850201812-202310

42110CPLUG, BREATHER (FOR REAR AXLE HOUSING)

main90049-15026iF850201812-202310

42110EPLUG (FOR REAR AXLE HOUSING DRAIN)

main90043-41068iF850201812-202310

42110LPLUG BREATHER, NO.2

main9004A-93004iF850201812-202310

4706REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

→ Go to FIG 47-06

33184BZ010WEIGHT, DYNAMIC DAMPER

main33184-BZ010

9004120039

main90041-20039

9004A10136

main9004A-10136

10 parts on this diagram · 2 diagrams in section
