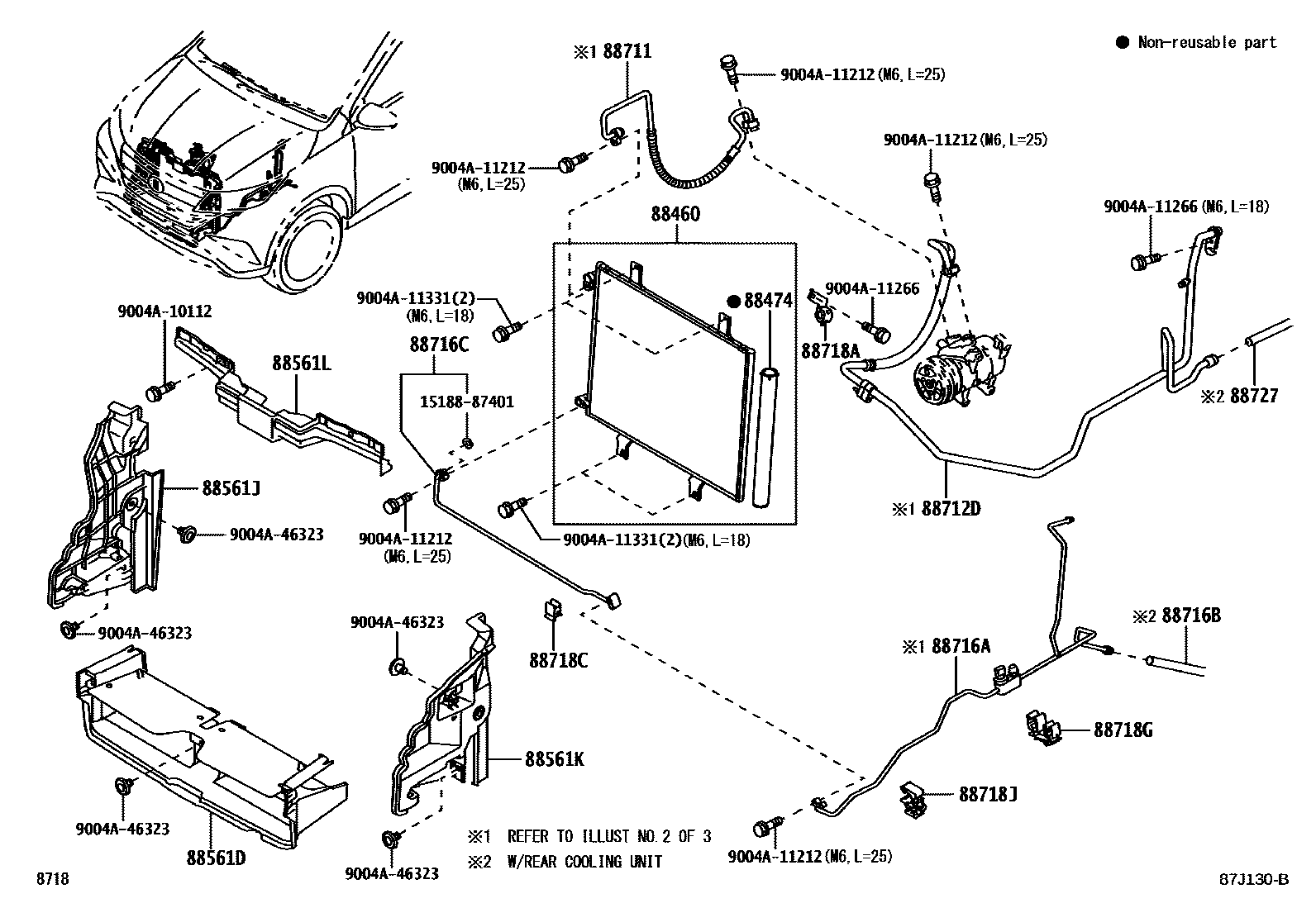

HEATING & AIR CONDITIONING - COOLER PIPING
88460CONDENSER ASSY, COOLER
88474DRYER, COOLER
88561DGRILLE, AIR INLET NO.3
88561JGRILLE, AIR INLET NO.1
88561KGRILLE, AIR INLET NO.2
88561LGRILLE, AIR INLET NO.4
88711HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88712DHOSE, SUCTION
88716APIPE, COOLER REFRIGERANT LIQUID, A
CONNECTOR GRAY
CONNECTOR BLACK
CONNECTOR BLACK
CONNECTOR GRAY
CONNECTOR BLACK
CONNECTOR BLACK
88716BPIPE, COOLER REFRIGERANT LIQUID, B
88716CPIPE, COOLER REFRIGERANT LIQUID, C
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718CCLAMP, NO.3(FOR COOLER REFRIGERANT PIPE)
88718GCLAMP, NO.2(FOR COOLER REFRIGERANT HOSE)
88718JCLAMP, NO.4(FOR COOLER REFRIGERANT HOSE)
88727TUBE, SUCTION, NO.2
1518887401GASKET, OIL PUMP
main15188-87401
9004A10112
main9004A-10112
9004A11212
main9004A-11212
9004A11266
main9004A-11266
9004A11331
main9004A-11331
9004A46323
main9004A-46323
22 parts on this diagram · 5 diagrams in section
