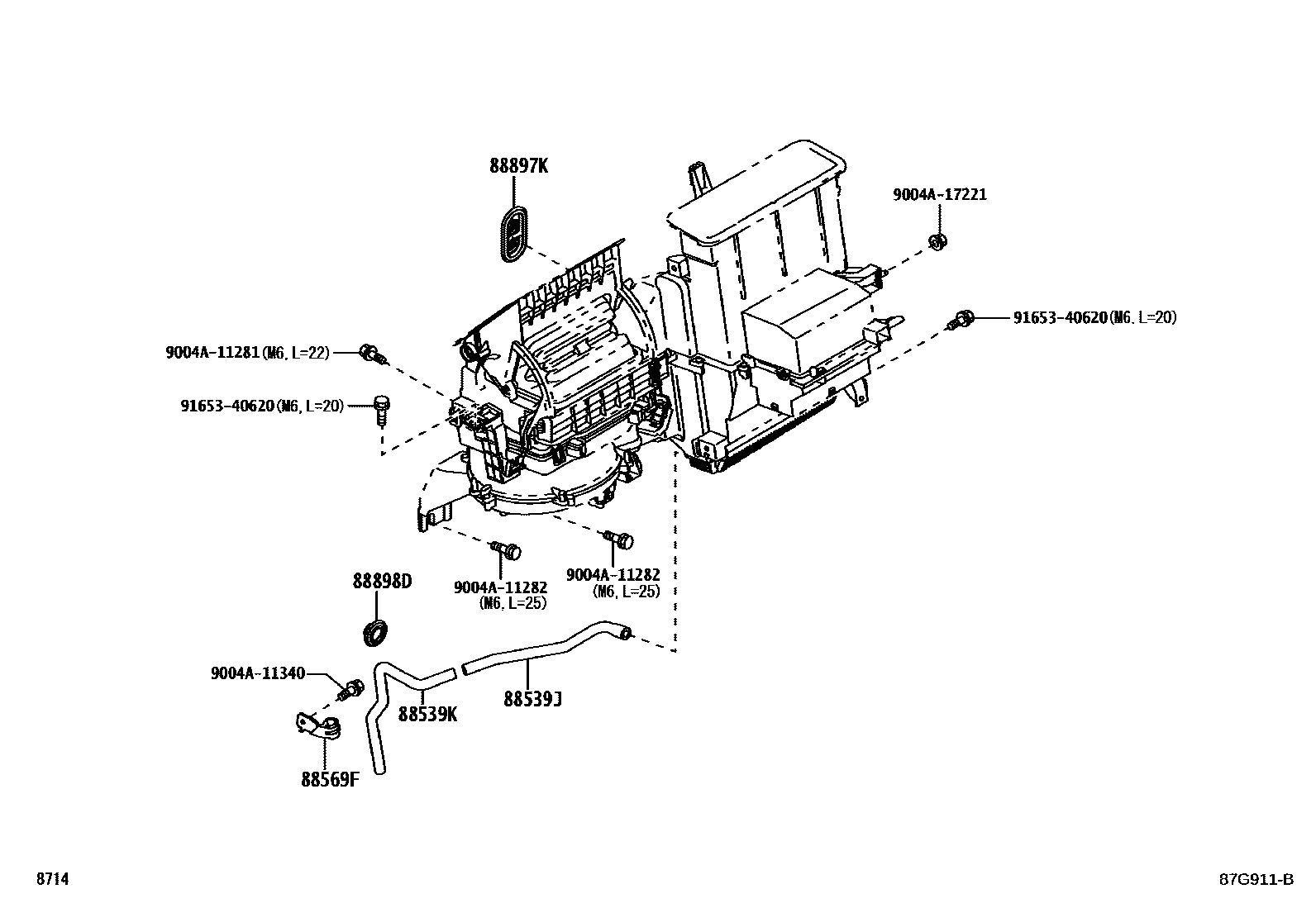

HEATING & AIR CONDITIONING - COOLER UNIT

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1W/HEATER 0007 1W/O HEATER 0008 1

88539HOSE, COOLER UNIT DRAIN, NO.1

main88539-BZ380×2iF800..MID..PH201712-202305

88539JHOSE, DRAIN COOLER

main88539-BZ320iF800..RHD201712

main88539-BZ330iF800..MID..PH201804-202305

88539KHOSE, DRAIN COOLER

main88839-BZ011iF800..RHD201712

main88839-BZ020iF800..MID..PH201804-202305

88569FCLAMP

main88718-BZ731iF800..RHD201712

main88718-BZ740iF800..HI..PH;F800..LHD..(GCC,GEN,VN)201804

88897KGROMMET, (FOR COOLER PIPE)

main88897-BZ160iF800..MID..PH201712-202305

main88897-BZ190iF800..GCC,GEN,VN201804

88898DGROMMET

main88897-87Z13iF800..MID..PH201712-202305

9004A11281

main9004A-11281

9004A11282

main9004A-11282

9004A11340

main9004A-11340

9004A17221

main9004A-17221

9165340620

main91653-40620

11 parts on this diagram · 8 diagrams in section
