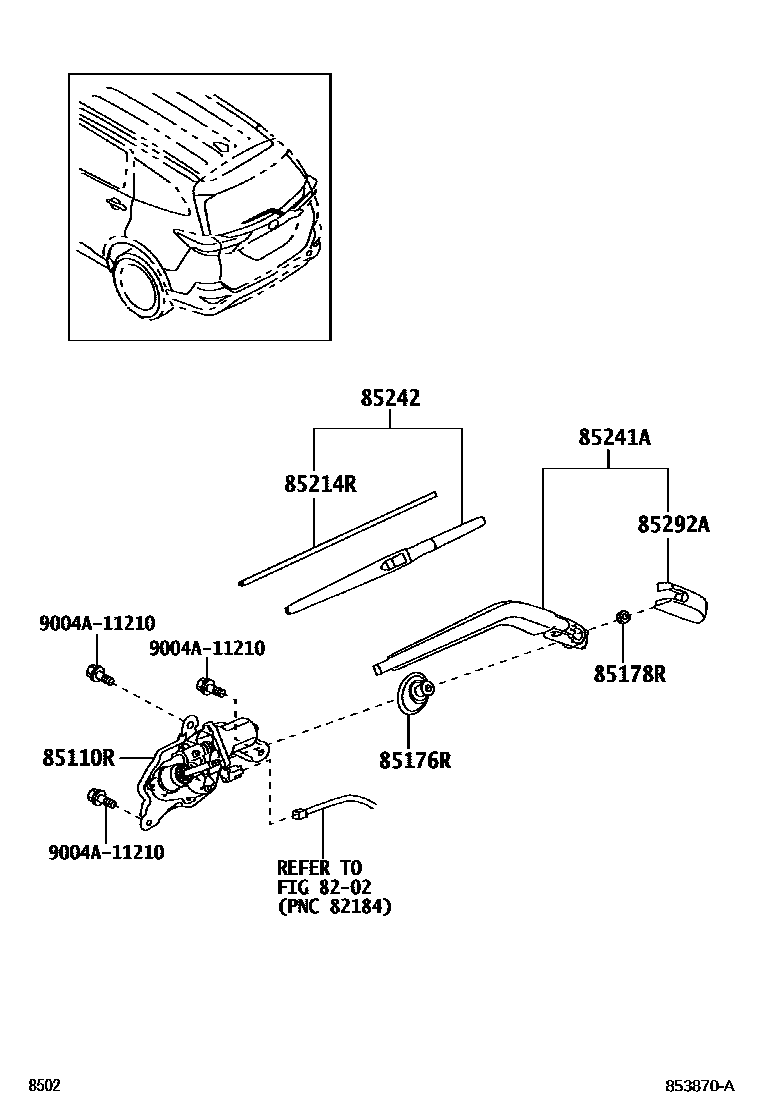

REAR WIPER

8202WIRING & CLAMP

→ Go to FIG 82-02

85110RMOTOR ASSY, REAR WIPER

main85130-BZ210iF800..MID..PH201712-202305

85176RCAP, REAR WIPER LINK

main85176-BZ110iF800..MID..PH201712-202305

85178RNUT (FOR REAR WIPER ARM SETTING)

main9004A-17218iF800..MID..PH201712-202305

85214RRUBBER, REAR WIPER

main85243-BZ080iF800..MID..PH201712-202305

85241AARM, REAR WIPER

main85241-BZ150iF800..MID..PH201712-202305

85242BLADE, RR WIPER

main85242-BZ160iF800..MID..PH201712-202305

85292ACAP, REAR WIPER ARM HEAD

main85292-BZ080iF800..MID..PH201712-202305

9004A11210

main9004A-11210

9 parts on this diagram · 1 diagram in section
