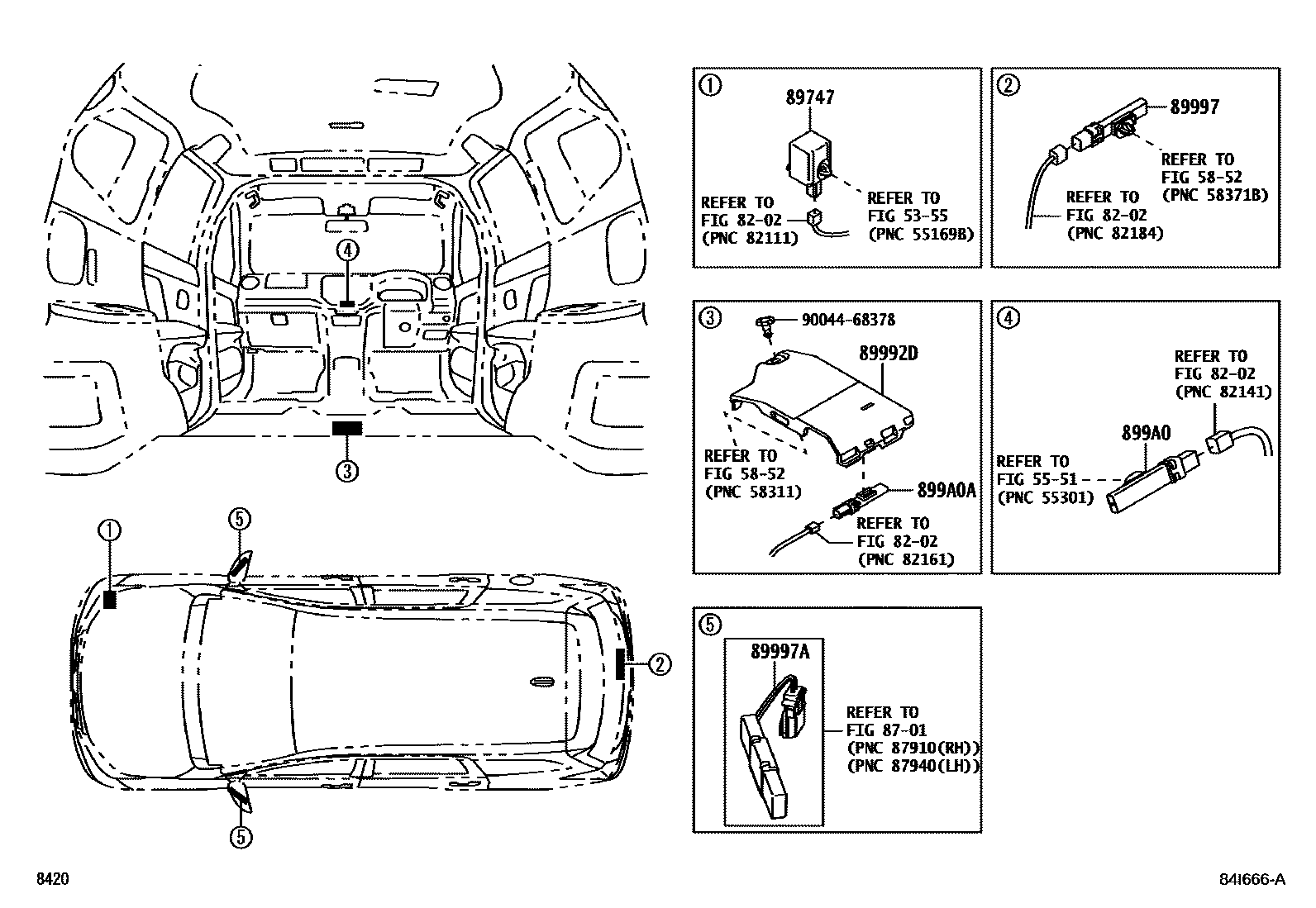

WIRELESS DOOR LOCK

5355FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-55

5551INSTRUMENT PANEL & GLOVE COMPARTMENT

→ Go to FIG 55-51

5852REAR FLOOR PANEL & REAR FLOOR MEMBER

→ Go to FIG 58-52

8202WIRING & CLAMP

→ Go to FIG 82-02

8701MIRROR

→ Go to FIG 87-01

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iF800201712

89992DOSCILLATOR, INDOOR ELECTRICAL KEY, NO.3

main89992-BZ010iF800201712

89997ANTENNA, ELECTRICAL KEY

main89997-B1100iF800..HI201712-202012

main89997-BZ060iF800..HI202101

89997AANTENNA, ELECTRICAL KEY, NO.2

main89997-B2380iF800..HI201712-202012

main89997-BZ020iF800..HI202101

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main89997-B2360iF800201712-202012

main89997-BZ010iF800202101

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main89997-B0010iF800201712-202010

main89997-BZ080iF800202011

9004468378

main90044-68378

12 parts on this diagram · 1 diagram in section
