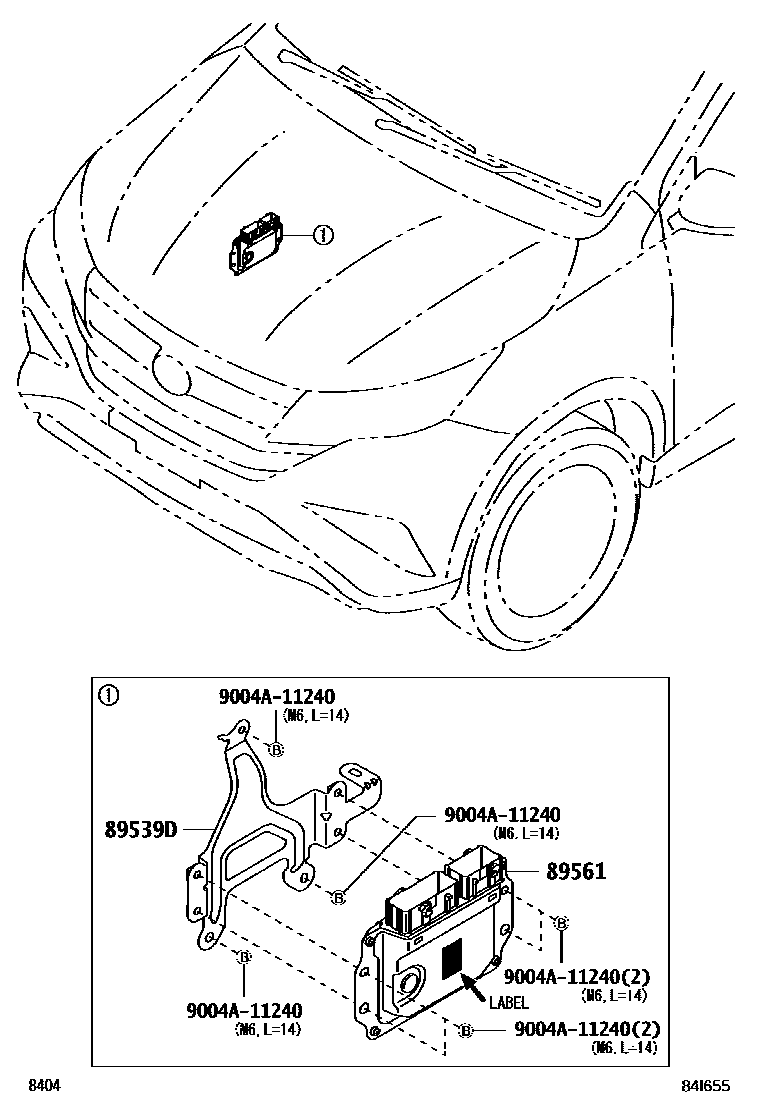

ELECTRONIC FUEL INJECTION SYSTEM

89539DBRACKET, COMPUTER

main89539-BZ130i201712

89561COMPUTER, FUEL INJECTION

main89560-BZB91i202204-202504

DENSO,W/PART NUMBER LABEL

main89560-BZS90i201804-202204

FUJITSU TEN,W/PART NUMBER LABEL

main89560-BZS91i202204-202504

DENSO,W/PART NUMBER LABEL

main89560-BZT30i201804-202204

FUJITSU TEN,W/PART NUMBER LABEL

main89560-BZT31i202204-202504

DENSO,W/PART NUMBER LABEL

main89560-BZW60i201804-202204

FUJITSU TEN,W/PART NUMBER LABEL

main89560-BZW61i202204-202504

DENSO,W/PART NUMBER LABEL

main89560-BXU10supersedes 89560-BZV40i202108-202204

DENSO TEN,MALAYSIA&ANTI-THEFT SYSTEM-E+THATCHAM BY UMWT,W/PART NUMBER LABEL; DENSO TEN,W/PART NUMBER LABEL

main89560-BXU11supersedes 89560-BZV40i202204-202504

DENSO TEN,MALAYSIA&ANTI-THEFT SYSTEM-E+THATCHAM BY UMWT,W/PART NUMBER LABEL; DENSO TEN,W/PART NUMBER LABEL

main89560-BXU20supersedes 89560-BZV50i202108-202204

DENSO TEN,MALAYSIA&ANTI-THEFT SYSTEM-E+THATCHAM BY UMWT,W/PART NUMBER LABEL; DENSO TEN,W/PART NUMBER LABEL

main89560-BXU21supersedes 89560-BZV50i202204-202504

DENSO TEN,MALAYSIA&ANTI-THEFT SYSTEM-E+THATCHAM BY UMWT,W/PART NUMBER LABEL; DENSO TEN,W/PART NUMBER LABEL

main89560-BY530supersedes 89560-BZB90i201812-202204

DENSO,ZIMBABWE,W/PART NUMBER LABEL

main89560-BY531supersedes 89560-BZB90i202204-202306

DENSO,ZIMBABWE,W/PART NUMBER LABEL

main89560-BY540i201812-202204

DENSO,ZIMBABWE,W/PART NUMBER LABEL

main89560-BY541i202204-202306

DENSO,ZIMBABWE,W/PART NUMBER LABEL

main89560-BYW20supersedes 89560-BZW51i202009-202204

DENSO,COSTA RICA,W/PART NUMBER LABEL

main89560-BYW21supersedes 89560-BZW51i202204-202504

DENSO,COSTA RICA,W/PART NUMBER LABEL

main89560-BYW30i202101-202204

DENSO,MALAYSIA,W/PART NUMBER LABEL

main89560-BYW31i202204-202504

DENSO,COSTA RICA,W/PART NUMBER LABEL; DENSO,MALAYSIA,W/PART NUMBER LABEL

main89560-BZB90supersedes 89560-BZV80i201804-201812

FUJITSU TEN,LHD ASIA GENERAL EXP,W/PART NUMBER LABEL

main89560-BZT40supersedes 89560-BZW51i201804-202204

FUJITSU TEN,PERU,W/PART NUMBER LABEL

main89560-BZT41supersedes 89560-BZW51i202204-202504

DENSO,ECUADOR,W/PART NUMBER LABEL; DENSO,PERU,W/PART NUMBER LABEL

main89560-BZT50i201812-202204

FUJITSU TEN,ECUADOR,W/PART NUMBER LABEL; FUJITSU TEN,VIETNAM,W/PART NUMBER LABEL

main89560-BZT51i202204-202504

DENSO,ECUADOR,W/PART NUMBER LABEL; DENSO,NEPAL,W/PART NUMBER LABEL; DENSO,PERU,W/PART NUMBER LABEL; DENSO,VIETNAM,W/PART NUMBER LABEL

main89560-BZV40i201801-202108

FUJITSU TEN,MALAYSIA&ANTI-THEFT SYSTEM-E+THATCHAM BY UMWT,W/PART NUMBER LABEL

main89560-BZV50i201801-202108

FUJITSU TEN,MALAYSIA&ANTI-THEFT SYSTEM-E+THATCHAM BY UMWT,W/PART NUMBER LABEL

main89560-BZV80supersedes 89560-BZB90i201804-202204

FUJITSU TEN,NEPAL,W/PART NUMBER LABEL

main89560-BZV81supersedes 89560-BZB90i202204-202504

DENSO,NEPAL,W/PART NUMBER LABEL

main89560-BZW50supersedes 89560-BZB90i201804-202204

FUJITSU TEN,PAKISTAN,W/PART NUMBER LABEL; FUJITSU TEN,W/PART NUMBER LABEL

main89560-BZW51supersedes 89560-BZB90i202204-202306

DENSO,PAKISTAN,W/PART NUMBER LABEL

main89560-BZX40supersedes 89560-BZZ81i201804-202204

FUJITSU TEN,UAE,W/PART NUMBER LABEL

main89560-BZX41supersedes 89560-BZZ81i202204-202401

DENSO,UAE,W/PART NUMBER LABEL

main89560-BZX50supersedes 89560-BZZ91i201804-202204

FUJITSU TEN,UAE,W/PART NUMBER LABEL

main89560-BZX51supersedes 89560-BZZ91i202204-202401

DENSO,UAE,W/PART NUMBER LABEL

main89560-BZZ70supersedes 89560-BZV50i201810-202108

FUJITSU TEN,INDONESIA(FROM '18/10),W/PART NUMBER LABEL

9004A11240

main9004A-11240

3 parts on this diagram · 1 diagram in section
