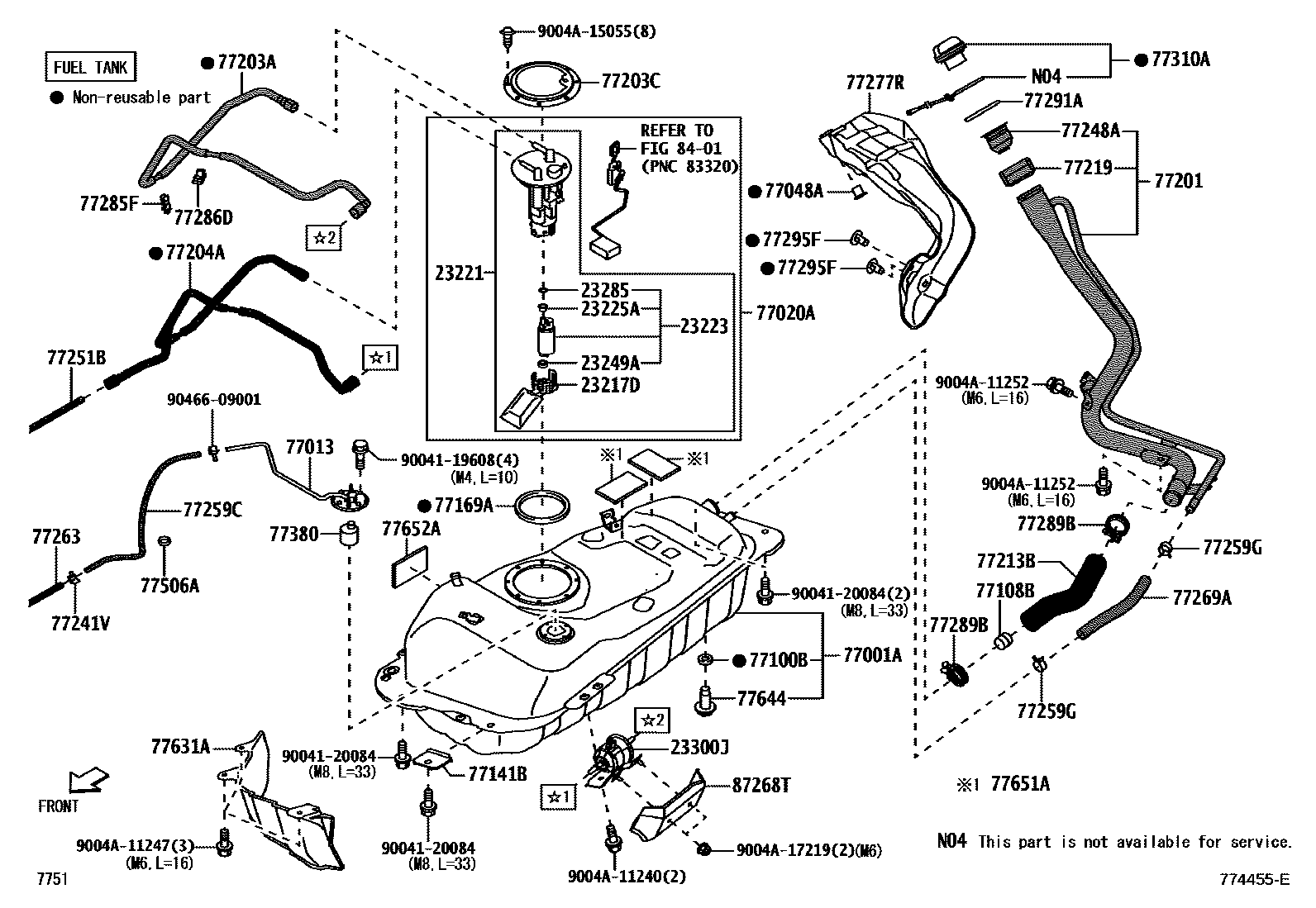

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TUBE 0003 1FUEL LID CABLE

23217DFILTER, FUEL PUMP

main23217-BZ030i2NRVE..F800201712

23221PUMP, FUEL

main23100-BZ220i2NRVE..F800201712

23223PUMP, FUEL, NO.2

main23101-BZ090i2NRVE..F800201712

23225ASPACER, FUEL PUMP

main23225-BZ020i2NRVE..F800201712

23249ARUBBER, CUSHION(FOR FUEL PUMP)

main23249-BZ030i2NRVE..F800201712

23285RING, O

main23532-87101i2NRVE..F800201712

23300JFILTER ASSY, FUEL

main23300-BZ010i2NRVE..F800..MID..PH201712-202305

77001ATANK SUB-ASSY, FUEL

main77001-BZ380iF800..PH201712-202101

main77001-BZ600iF800..MID..PH202102-202305

main77001-BZ450iF800..RHD..GEN201812-202101

ZIMBABWE

77013TUBE SUB-ASSY, FUEL TANK BREATHER, NO.2

main77013-BZ100iF800..MID..PH201712-202305

77020ATUBE ASSY, FUEL SUCTION W/PUMP & GAGE

main23210-BZ130iF800201712-202407

main23210-BZ131iF800202408

77048ACLIP (FOR FUEL INLET PIPE SEAL)

main9004A-46381iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

77100BGASKET(FOR FUEL TANK)

main90044-30291iF800..GCC,GEN,IDN,VN201712-202102

77108BVALVE SUB-ASSY, FUEL TANK FILLER CHECK

main77108-B2010iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

77141BREINFORCEMENT, FUEL TANK FLANGE, NO.1

main77141-BZ090iF800..MID..PH201712-202305

77169AGASKET, FUEL SUCTION TUBE SET

main23232-BZ010iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

77201PIPE SUB-ASSY, FUEL TANK INLET

main77201-BZ190iF800..MID..PH201712-202305

77203ATUBE SUB-ASSY, FUEL SUCTION

main77203-BZ100iF800..MID..PH201712-202305

77203CBRACKET, FUEL PUMP

main23265-BZ010iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

77204ATUBE, FUEL TANK RETURN

main77204-BZ010iF800..MID..PH201712-202305

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-BZ160supersedes 77213-BZ170iF800..GCC,GEN201712

main77213-BZ170iF800..MID..PH201804-202305

77219COVER, FUEL TANK FILLER PIPE

main77219-20070×2iF800..MID..PH201712-202305

77241VCLIP, TUBE JOINT

main9004A-46391iF800..MID..PH201712-202305

77248AHOLDER, FUEL TANK FILLER PIPE COVER

main77248-20030iF800..MID..PH201712-202305

77251BTUBE, FUEL MAIN

main77251-BZ210iF800..MID..PH201712-202305

77259CHOSE, FUEL

main77259-BZ010iF800..MID..PH201712-202305

77259GCLIP, FUEL HOSE

main90044-67244×2iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

77263TUBE, FUEL TANK TO CANISTER, NO.3

main77263-BZ160iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

77269AHOSE, FUEL TANK BREATHER

main77269-BZ010supersedes 77269-BZ170iF800..GCC,GEN201712

main77269-BZ170iF800..MID..PH201804-202305

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-BZ080iF800..MID..PH201712-202305

77285FCLAMP, FUEL TUBE, NO.1

main77285-B0010iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

77286DCLAMP, FUEL TUBE, NO.2

main77286-B0010iF800..MID..PH201712-202305

77289BCLAMP, FUEL TUBE, NO.3

main96111-30440×2iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-BZ050iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

77295FGROMMET, FUEL HOSE

main9004A-18035×2iF800..MID..PH201712-202305

77310ACAP ASSY, FUEL TANK

main77300-52030iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

77380VALVE ASSY, FUEL CUT OFF

main77380-0K010iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

77506ACLAMP, FUEL TANK BAND SHIM

main9004A-46379iF800..MID..PH201712-202305

77631APROTECTOR, FUEL TANK, LOWER CENTER

main77631-BZ061iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

77644BOLT, FUEL TANK

main9004A-10186iF800..GCC,GEN,IDN,VN201712-202102

77651ACUSHION, FUEL TANK, NO.1

main77651-BZ030×2iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

77652ACUSHION, FUEL TANK, NO.2

main77652-BZ040iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

87268TPROTECTOR, NO.1

main87268-BZ020iF800..MID..PH201712-202305

9004119608

main90041-19608

9004120084

main90041-20084

9004A11240

main9004A-11240

9004A11247

main9004A-11247

9004A11252

main9004A-11252

9004A15055

main9004A-15055

9004A17219

main9004A-17219

9046609001

main90466-09001

51 parts on this diagram · 3 diagrams in section
