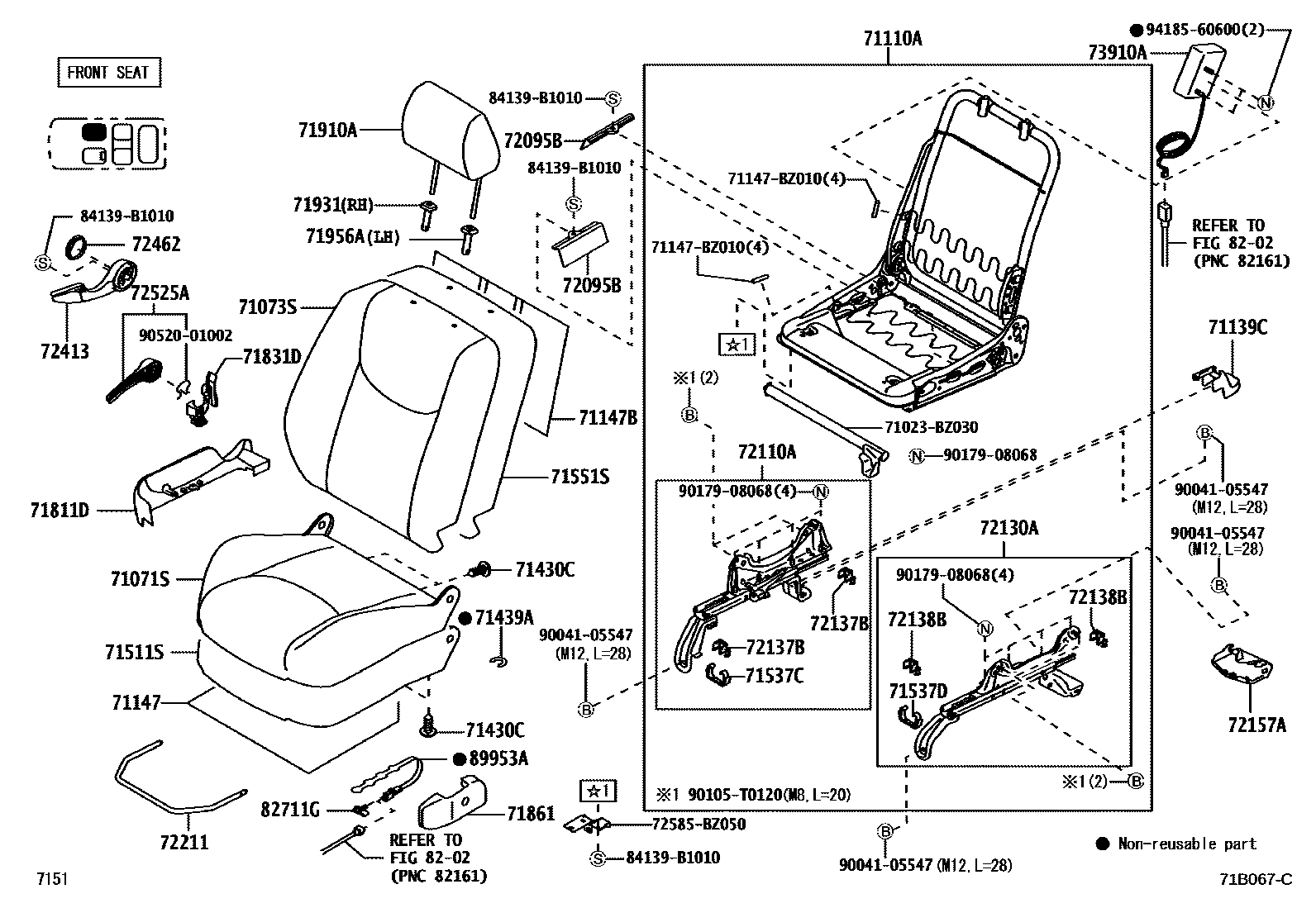

SEAT & SEAT TRACK

0001 1FRONT SEAT RH 0002 1FRONT SEAT LH 0003 1REAR NO.1 SEAT RH 0004 1REAR NO.1 SEAT LH 0005 1REAR NO.2 SEAT RH 0006 1REAR NO.2 SEAT LH 0007 1COSTA RICA/REAR NO.2 SEAT RH 0008 1COSTA RICA/REAR NO.2 SEAT LH

71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71071-BZK30-C0iF800..RHD..MID..GEN201804

BLACK,TRIM1#

main71071-BZK40-C0iF800..RHD..HI;F800..MID..IDN201712

BLACK,TRIM1#

main71071-BZK50-C0iF800..LHD..MID201804

BLACK,TRIM1#

main71071-BZK60-C0iF800..LHD..HI201804

BLACK,TRIM1#

71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71073-BZL20-C0iF800..MID..(GCC,GEN,PH,VN)201804

BLACK,TRIM1#

main71073-BZL30-C0iF800..HI;F800..MID..IDN201712

BLACK,TRIM1#

71110AFRAME ASSY, FRONT SEAT W/ADJUSTER, RH

main71110-BZ270iF800..RHD201712

main71110-BZ280iF800..LHD201804

71139CCOVER, FRONT SEAT LEG, RH

main71139-BZ050-C0iF800201712

BLACK,TRIM1#

71147SILENCER, SEAT SPRING

main71147-B1020×2iF800201712

71147BSILENCER, SEAT SPRING

main71147-B2030×2iF800201712

71430CCLIP

main90044-68185-B1×9iF800201712

DK.GRAY,TRIM1#

71439ACLIP

main9004A-46143×56iF800201712

71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)

main71501-BZ470iF800201712

71537CPROTECTOR, FRONT SEAT CUSHION EDGE, RH

main71537-BZ030iF800201712

71537DPROTECTOR, FRONT SEAT CUSHION EDGE, LH

main71537-BZ030iF800201712

71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)

main71505-BZ490iF800201712

71811DSHIELD, FRONT SEAT CUSHION, RH

main71811-BZ030-C0iF800..RHD201712

BLACK,TRIM1#

main71811-BZ050-C0iF800..LHD201804

BLACK,TRIM1#

71831DCOVER, FRONT SEAT HINGE, RH

main71831-BZ040-B0iF800201712

DK.GRAY,TRIM1#

71861SHIELD, FRONT SEAT CUSHION, INNER RH

main71861-BZ120-C0iF800..RHD201712

BLACK,TRIM1#

71910AHEADREST ASSY, FRONT SEAT

main71910-BZE00-C1iF800..MID..(GCC,GEN,PH,VN)201804

BLACK,TRIM1#

main71910-BZE10-C1iF800..HI;F800..MID..IDN201712

BLACK,TRIM1#

main71910-BZE60-C0iF800..LHD..MID..GEN201812

ECUADOR,BLACK,TRIM1#

main71910-BZE70-C0iF800..LHD..HI..GEN201812

ECUADOR,BLACK,TRIM1#

71931SUPPORT, FRONT SEAT HEADREST

main71931-BZ030-B0iF800201712

W/O(LOCK),DK.GRAY,TRIM1#,RH

71956SUPPORT, HEADREST

main71931-BZ030-B0iF800201712

DK.GRAY,TRIM1#,RH

71956ASUPPORT, FRONT SEAT HEADREST

main71930-BZ040-B0iF800201712

W(LOCK),DK.GRAY,TRIM1#,LH

72095BPLATE SUB-ASSY, FRONT SEAT, RH

main71127-BZ010×2iF800201712

72110ATRACK ASSY, FRONT SEAT, OUTER RH

main72110-BZ210iF800..RHD201712

main72110-BZ220iF800..LHD201804

72130ATRACK ASSY, FRONT SEAT, INNER RH

main72130-BZ180iF800..RHD201712-202405

main72130-BZ181iF800..RHD202406

main72130-BZ190iF800..LHD201804

72137BCOVER, SEAT TRACK, RH

main72137-BZ040×2iF800201712

72138BCOVER, SEAT TRACK, LH

main72137-BZ040×2iF800201712

72157ACOVER, SEAT TRACK BRACKET, INNER RH

main72157-BZ070-C0iF800201712

BLACK,TRIM1#

72211HANDLE, SEAT TRACK ADJUSTING

main72211-BZ140iF800201712

72413LEVER, VERTICAL ADJUSTER LOCK

main72413-BZ030-C0iF800..RHD201712

BLACK,TRIM1#

main72413-BZ080-C0iF800..LHD201804

BLACK,TRIM1#

72462COVER, VERTICAL ADJUSTER RH

main72462-BZ060-C0iF800..RHD201712

BLACK,TRIM1#

72525AHANDLE, RECLINING ADJUSTER RELEASE, RH

main72525-BZ110-B0iF800201712

DK.GRAY,TRIM1#

73910AAIRBAG ASSY, FRONT SEAT, RH

main73910-B1050iF800201712

8202

82711GCLAMP, WIRING HARNESS

main82711-BZ280iF800201712

89953ASENSOR, BELT WARNING OCCUPANT DETECTION

main89953-BZ010iF800201712

71023BZ030PLATE SUB-ASSY, FRONT SEAT HINGE, RH

main71023-BZ030

71147BZ010SILENCER, SEAT SPRING

main71147-BZ010

72585BZ050BRACKET, SEAT BELT HANGER, RH

main72585-BZ050

84139B1010

main84139-B1010

9004105547

main90041-05547

90105T0120

main90105-T0120

9017908068

main90179-08068

9052001002

main90520-01002

9418560600

main94185-60600

42 parts on this diagram · 8 diagrams in section
