FLOOR MAT & SILENCER PAD

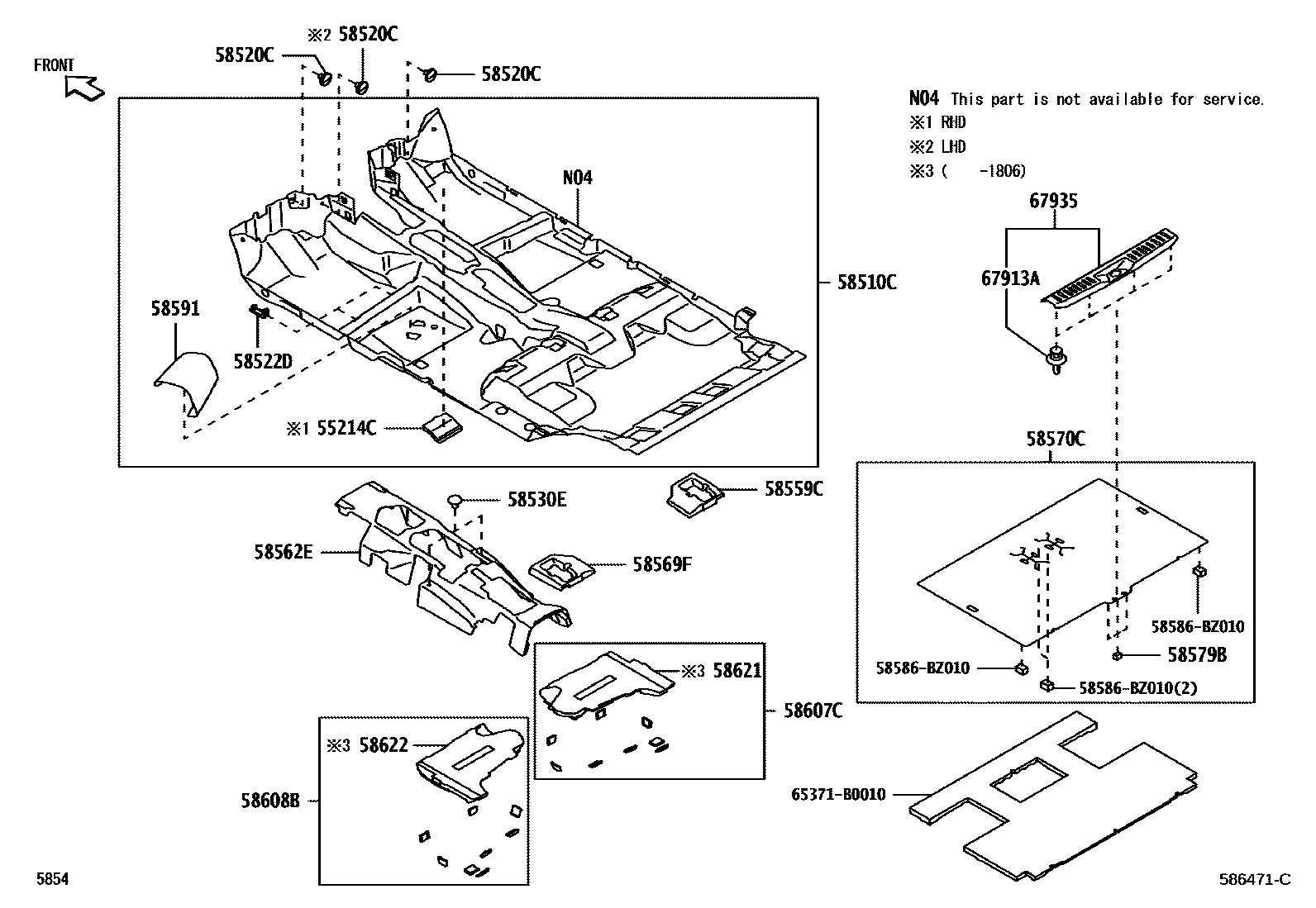

Parts diagram

55214CPAD, DASH PANEL INSULATOR, NO.2

main55214-BZ100i201712

58510CCARPET ASSY, FRONT FLOOR, FRONT

main58510-BZM10-C0i201712

BLACK,TRIM1#

main58510-BZM30-C0i201712

BLACK,TRIM1#

main58510-BZM40-C0i202011

BLACK,TRIM1#

main58510-BZM50-C0i202011

BLACK,TRIM1#

main58510-BZY70-C0i202012-202107

INDONESIA(FROM '18/10),BLACK,TRIM1#

main58510-BZY80-C0i202012-202107

INDONESIA(FROM '18/10),BLACK,TRIM1#

58520CCLIP(FOR FRONT FLOOR CARPET)

main9004A-46131-B0×2i201712-201804

DK.GRAY,TRIM1#

main9004A-46131-C1×3i201804

BLACK,TRIM1#

main9004A-46131×2i201804-202306

SOUTH AFRICA

58522DHOOK, FLOOR CARPET, NO.2

main58522-52030×2i201712

58530ECLIP(FOR FRONT FLOOR REAR CARPET)

main90044-67298-B0×2i201712-202305

LT.GRAY

58559CPAD, FRONT FLOOR SIDE, RH

main58559-BZ040i201712

58562ESILENCER, FRONT FLOOR, NO.2

main58563-B0010i201712-202305

58569FPAD, FRONT FLOOR SIDE, LH

main58569-BZ040i201712

58570CCARPET ASSY, REAR FLOOR

main58570-BZ340-C0i202011

BLACK,TRIM1#

main58570-BZ410-C0i202006

COSTA RICA,BLACK,TRIM1#

58579BPAD, REAR FLOOR

main58579-BZ030×3i201712

58591COVER, FLOOR CARPET

main58591-BZ070-C0i201712

BLACK,TRIM1#

58607CPAD SUB-ASSY, FRONT FLOOR SILENCER, REAR RH

main58065-BZ020i201712-201806

main58065-BZ040i201807-202305

58608BPAD SUB-ASSY, FRONT FLOOR SILENCER, REAR LH

main58066-BZ020i201712-201806

main58066-BZ040i201807-202305

58621PAD, FLOOR SILENCER, FRONT RH

main58676-BZ020i201712-201806

58622PAD, FLOOR SILENCER, FRONT LH

main58677-BZ020i201712-201806

67913ACLIP(FOR SCUFF PLATE)

main9004A-46338×4i201910

main90467-10161×4i201712-201910

67935PLATE, BACK DOOR SCUFF

main67935-BZ100-C0i201712

BLACK,TRIM1#

58586BZ010PLATE, REAR FLOOR MAT SUPPORT, FRONT

main58586-BZ010

65371B0010INSULATOR, REAR FLOOR

main65371-B0010

19 parts on this diagram · 2 diagrams in section
