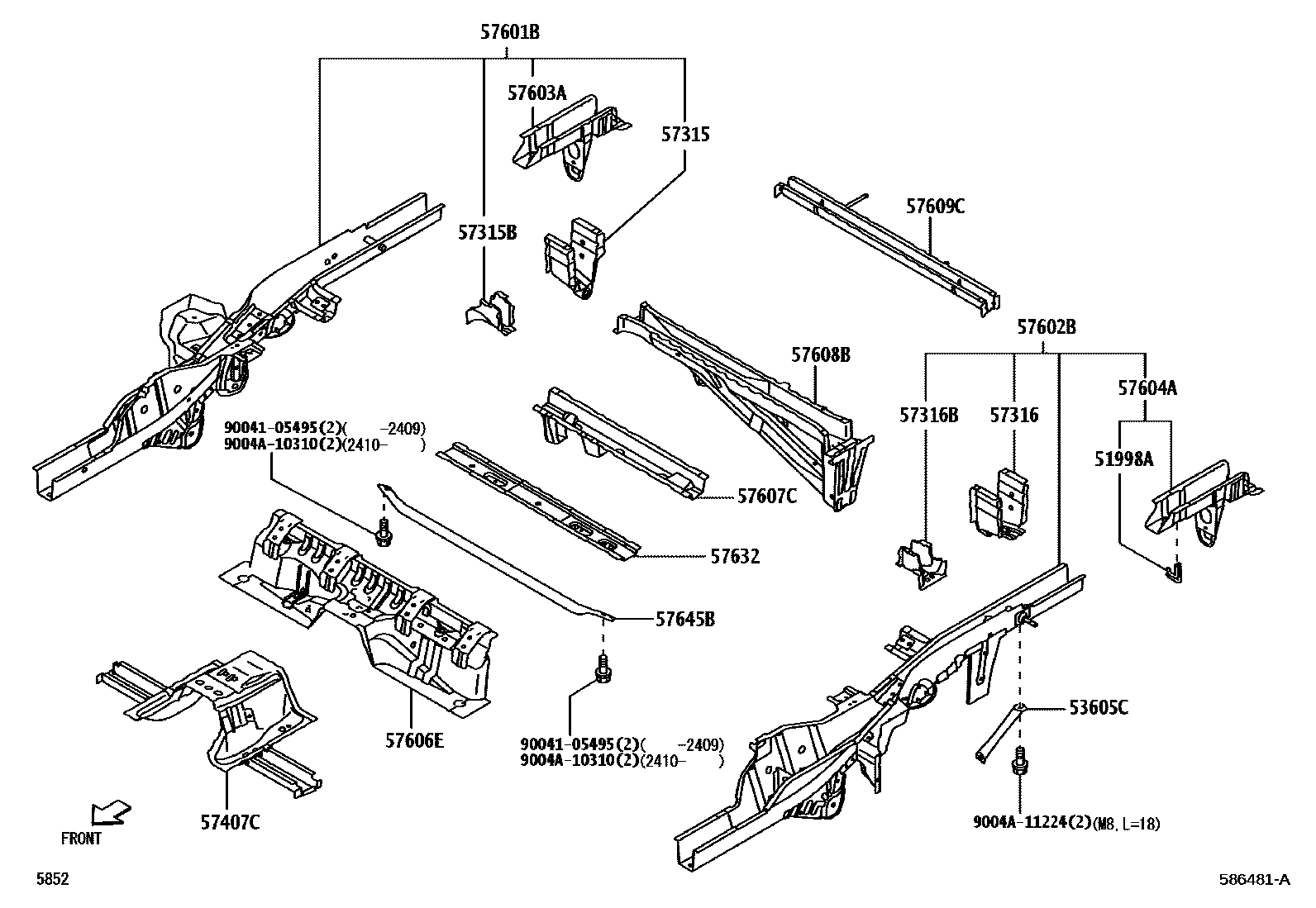

REAR FLOOR PANEL & REAR FLOOR MEMBER
51998AHANGER, EXHAUST PIPE SUPPORT, NO.6
LH
53605CBRACE SUB-ASSY, REAR FLOOR SIDE MEMBER
57315OUTRIGGER, NO.3 RH
57315BOUTRIGGER SUB-ASSY, NO.3 RH
57316OUTRIGGER, NO.3 LH
57316BOUTRIGGER SUB-ASSY, NO.3 LH
57407CMEMBER SUB-ASSY, CENTER FLOOR CROSS, NO.1
57601BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT RH
57602BMEMBER SUB-ASSY, REAR FLOOR SIDE, FRONT LH
57603AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR RH
57604AMEMBER SUB-ASSY, REAR FLOOR SIDE, REAR LH
57606EMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.2
57607CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.3
57608BMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.4
57609CMEMBER SUB-ASSY, REAR FLOOR CROSS, NO.5
57632MEMBER, REAR FLOOR, CENTER NO.1
57645BREINFORCEMENT, REAR SIDE MEMBER
9004105495
main90041-05495
9004A10310
main9004A-10310
9004A11224
main9004A-11224
20 parts on this diagram · 3 diagrams in section
