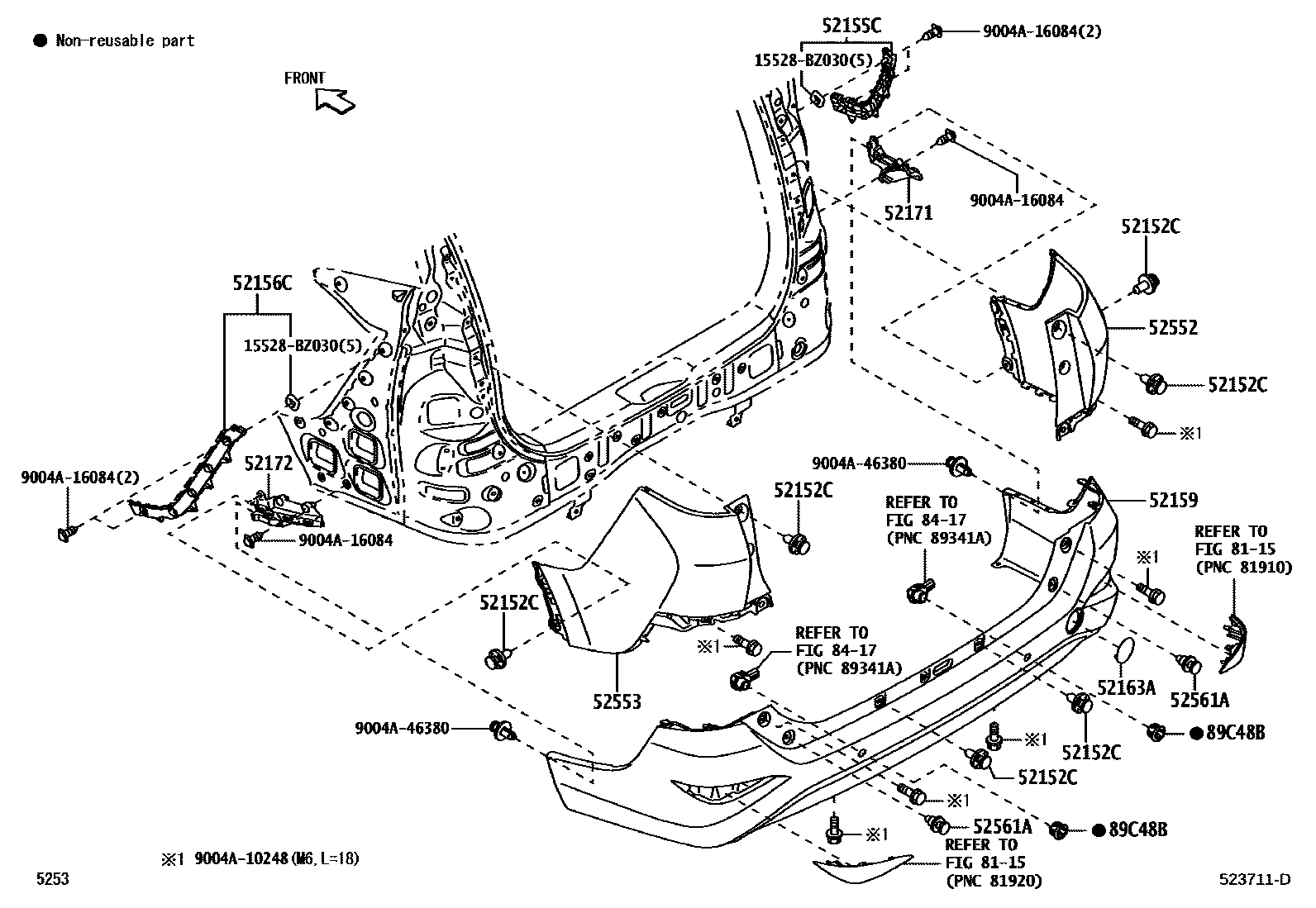

REAR BUMPER & BUMPER STAY

52152CCLIP, REAR BUMPER SIDE

main9004A-46323×6iF800..MID..PH201712-202305

52155CSUPPORT, REAR BUMPER SIDE, NO.1 RH

main52155-BZ210iF800..MID..PH201712-202305

52156CSUPPORT, REAR BUMPER SIDE, NO.1 LH

main52156-BZ210iF800..MID..PH201712-202305

52159COVER, REAR BUMPER

main52159-BZG80iF800..MID..PH201712-202305

52163APLATE, REAR BUMPER, RH

main52163-BZ020iF800..MID..PH201712-202305

52171RETAINER, REAR BUMPER SIDE, RH

main52565-BZ030iF800..MID..PH201712-202305

52172RETAINER, REAR BUMPER SIDE, LH

main52566-BZ030iF800..MID..PH201712-202305

52552FILLER, REAR BUMPER, RH

main52552-BZ060iF800..MID..PH201712-202305

52553FILLER, REAR BUMPER, LH

main52553-BZ060iF800..MID..PH201712-202305

52561ACLIP(FOR REAR BUMPER RETAINER)

main9004A-46334×2iF800..MID..PH201712-202305

8115REFLEX REFLECTOR

→ Go to FIG 81-15

8417CLEARANCE & BACK SONAR

→ Go to FIG 84-17

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-BZ060×2iF800..MID..PH201712-202305

15528BZ030GASKET, VALVE(FOR CENTRIFUGAL OIL FILTER)

main15528-BZ030

9004A10248

main9004A-10248

9004A16084

main9004A-16084

9004A46380

main9004A-46380

17 parts on this diagram · 1 diagram in section
