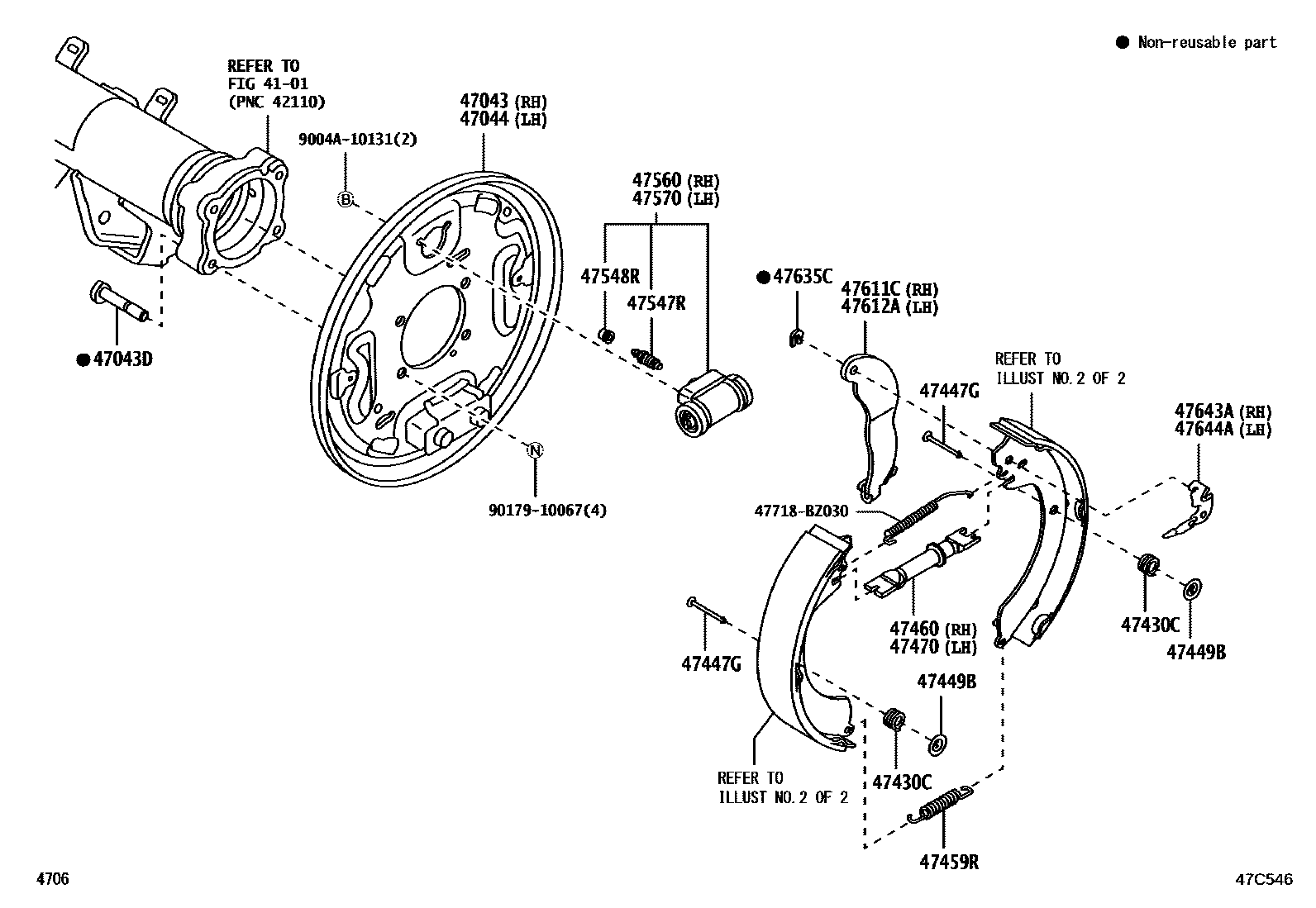

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

4101REAR AXLE HOUSING & DIFFERENTIAL

→ Go to FIG 41-01

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-BZ110i201712-202108

main47043-BZ150i202108

47043DBOLT(FOR BACKING PLATE TO REAR AXLE HOUSING SETTING)

main46791-BZ020×8i201712-202305

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-BZ130i201712-202108

main47044-BZ160i202108

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main47446-BZ070×4i201712-202305

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-87603×4i201712-202305

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-BZ030×4i201712-202305

47459RSPRING, SHOE RETURN(FOR REAR BRAKE)

main47459-BZ130×2i201712-202305

47460ADJUSTER ASSY, SHOE, RH(FOR REAR BRAKE)

main47460-BZ050i201712-202107

main47460-BZ100i202108-202305

47470ADJUSTER ASSY, SHOE, LH(FOR REAR BRAKE)

main47470-BZ050i201712-202107

main47470-BZ100i202108-202305

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-BZ120×2i201712-202305

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main47548-BZ080×2i201712-202305

47560CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, REAR OR LOWER)

main47560-BZ011i201712-202305

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47560-BZ011i201712-202305

47611CLEVER, PARKING BRAKE SHOE, RH

main47611-BZ070i201712-202305

47612ALEVER, PARKING BRAKE SHOE, LH

main47612-BZ070i201712-202305

47635CRETAINER, ADJUSTING BOLT SPRING

main47635-BZ030×2i201712-202305

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-BZ040i201712-202305

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-BZ040i201712-202305

47718BZ030SPRING, FRONT DISC BRAKE CYLINDER SUPPORT

main47718-BZ030

9004A10131

main9004A-10131

9017910067

main90179-10067

22 parts on this diagram · 2 diagrams in section
