FRONT DISC BRAKE CALIPER & DUST COVER

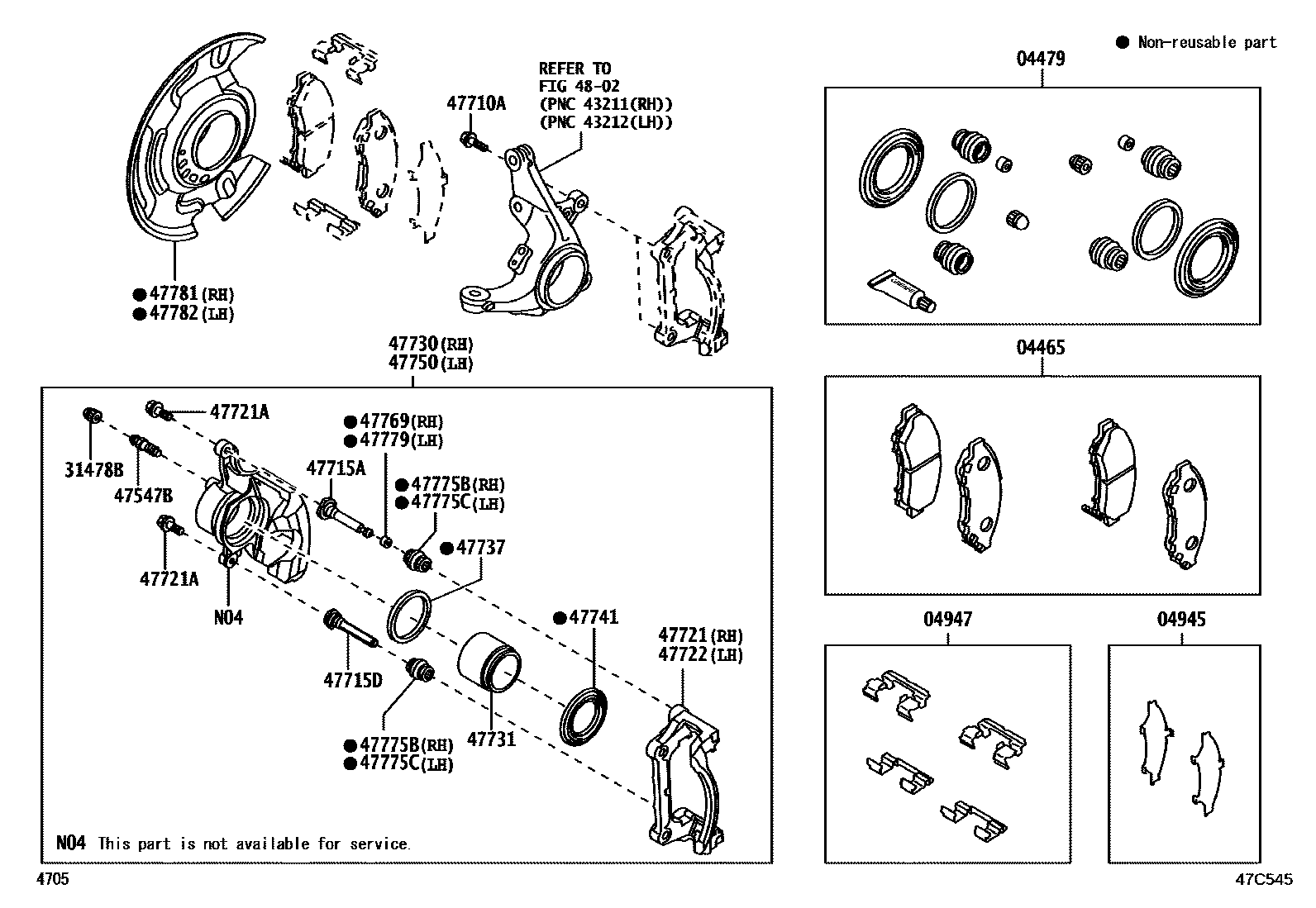

Parts diagram

04465PAD KIT, DISC BRAKE, FRONT

main04465-BZ250i201712-202305

MARK AKEBONO H2026

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-BZ180i201712-202305

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-BZ070i201712-202305

04947FITTING KIT, DISC BRAKE, FRONT

main04947-BZ070i201712-202305

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main47548-BZ080×2i201712-202305

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-BZ050×2i201712-202305

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main9004A-10171×4i201712-202305

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-BZ170×2i201712-202305

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-BZ160×2i201712-202305

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-BZ120i201712-202305

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main9004A-10110×4i201712-202305

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47721-BZ120i201712-202305

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-BZ100i201712-202305

47731PISTON, FRONT DISC BRAKE

main47731-BZ050×2i201712-202305

47737SEAL, FRONT DISC BRAKE CYLINDER PISTON

main47737-BZ050×2i201712-202305

47741BOOT, FRONT DISC BRAKE CYLINDER

main47741-BZ090×2i201712-202305

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-BZ110i201712-202305

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-BZ030i201712-202305

47775BBOOT, BUSH DUST, NO.1

main47775-BZ010×2i201712-202305

47775CBOOT, BUSH DUST, NO.2

main47775-BZ010×2i201712-202305

47779BUSH, CYLINDER SLIDE, NO.2(FOR FRONT DISC BRAKE)

main47769-BZ030i201712-202305

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-BZ170i201712-202305

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-BZ170i201712-202305

4802FRONT AXLE ARM & STEERING KNUCKLE

→ Go to FIG 48-02

24 parts on this diagram · 1 diagram in section
