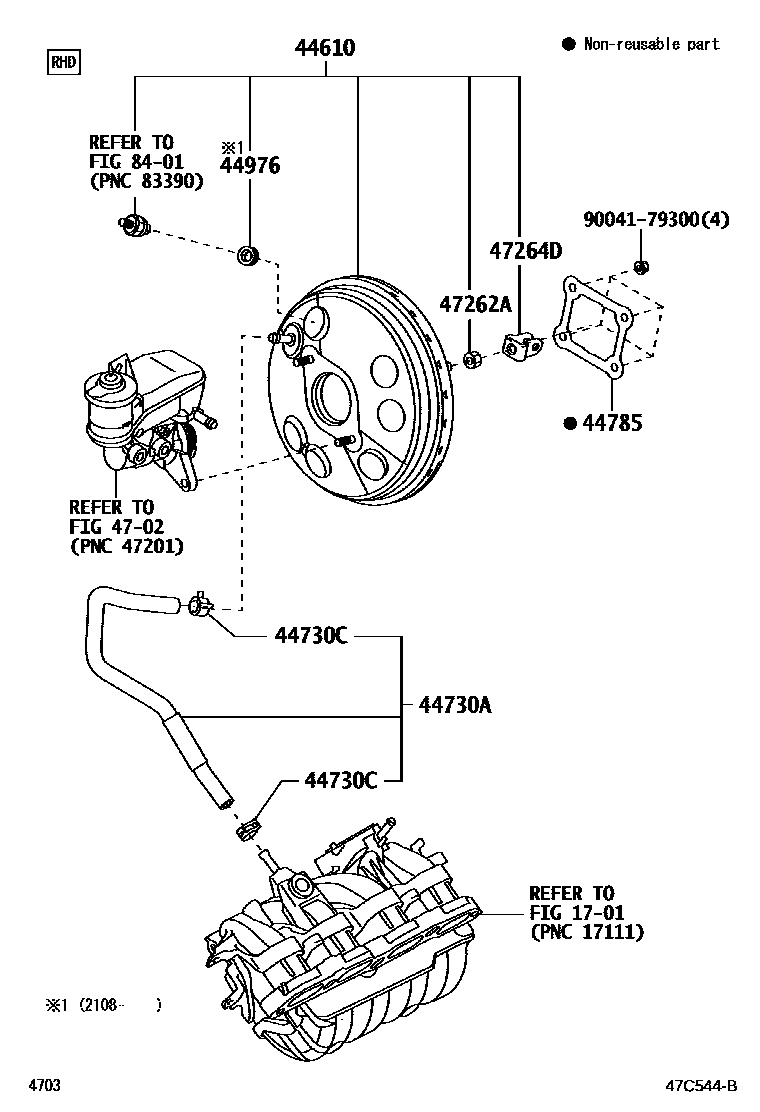

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-BZ690201712-202108

main44610-BZ700201712-202108

main44610-BZ710201804-202305

main44610-BZ720201804-202305

main44610-BZ800202108

44730AHOSE, VACUUM, NO.1

main44750-BZ250201712

main44750-BZ260201804-202305

44730CCLIP(FOR VACUUM HOSE)

main90044-67161201712-202305

44785GASKET, BRAKE BOOSTER

main47275-BZ010201712-202305

44976SEAL, BOOSTER

main44685-B2010202108

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK

main9004A-17229201712-202305

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-BZ120201712-202305

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004179300

main90041-79300

11 parts on this diagram · 2 diagrams in section
