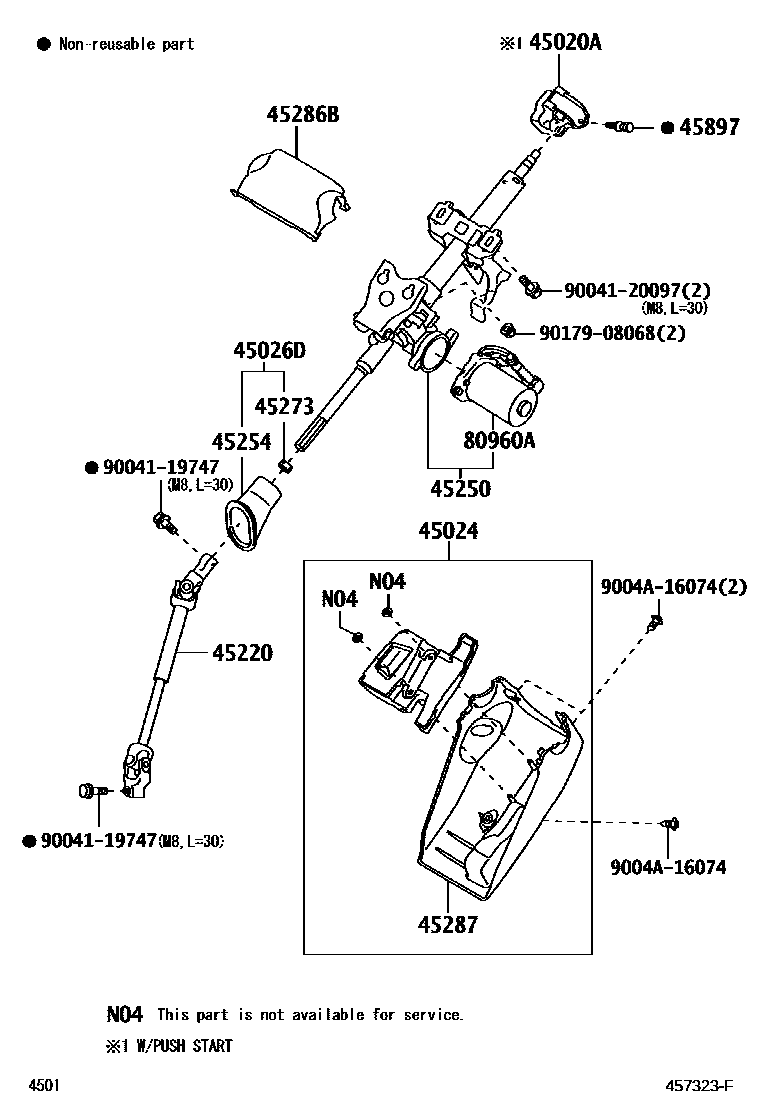

STEERING COLUMN & SHAFT

45020AACTUATOR ASSY, STEERING LOCK

main45020-BZ370iF800201712

45024COVER SUB-ASSY, STEERING COLUMN, LOWER

main45024-BZ050-C0iF800201712

BLACK,TRIM1#

45026DCOVER SUB-ASSY, STEERING COLUMN HOLE

main45025-BZ010iF800..MID..PH201712-202305

45220SHAFT ASSY, STEERING INTERMEDIATE

main45220-BZ170iF800..RHD201712-201909

main45220-BZ171iF800..RHD201910

main45220-BZ180iF800..LHD201804-201909

main45220-BZ181iF800..MID..PH201910-202305

45250COLUMN ASSY, STEERING

main45250-BZ420iF800..RHD201712

main45250-BZ440iF800..HI..PH;F800..LHD..(GCC,GEN,VN)201804

45254SHIELD, STEERING COLUMN HOLE

main45254-BZ120iF800..MID..PH201712-202305

45273BUSH, STEERING MAIN SHAFT

main45273-B0010iF800..MID..PH201712-202305

45286BCOVER, STEERING COLUMN, UPR

main45286-BZ280-C0iF800201712

BLACK,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-BZ350-C0iF800201712

BLACK,TRIM1#

45897BOLT, STEERING LOCK SET

main45897-B2010iF800..MID..PH201712-202305

80960AMOTOR SET, POWER STEERING

main80960-B9090iF800..RHD201712

main80960-B9100iF800..MID..PH201804-202305

9004119747

main90041-19747

9004120097

main90041-20097

9004A16074

main9004A-16074

9017908068

main90179-08068

15 parts on this diagram · 1 diagram in section
