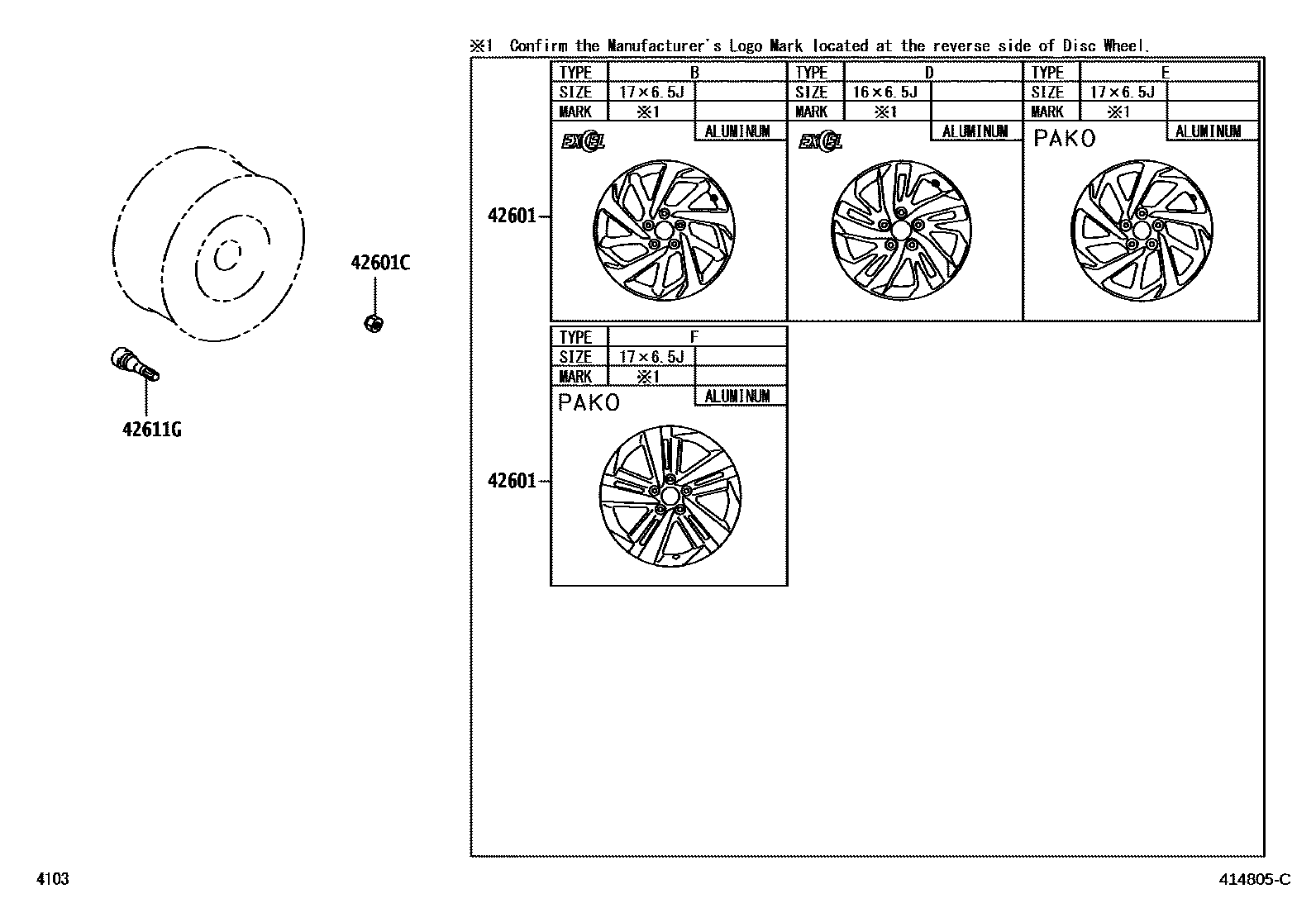

DISC WHEEL & WHEEL CAP

0001 1WHEEL 0002 1SPARE WHEEL 0003 1 0004 1WEIGHT,BALANCE 0005 1WEIGHT,BALANCE

42601WHEEL, DISC

main42611-BZ830×4iF800..MID..(GEN,IDN,PH,VN)201712

16X6 1/2J,ALUMI,TYPE D EXCEL

main42611-BZA60×4iF800..HI;F800..MID..GCC201810-201812

17X6.5J(AL),TYPE E PAKO

main42611-BZA61×4iF800..HI..IDN201901-202403

17X6.5J(AL),TYPE F PAKO

main42611-BZB70×4iF800..HI..IDN201712-202403

17X6.5J(AL),TYPE B EXCEL

main42611-BZL80×4iF800..HI..IDN202403

17X6.5J(AL),TYPE F PAKO

42601CNUT, HUB (FOR AXLE)

main9004A-94124×20iF800..HI..PH;F800..GCC,GEN,IDN,VN201712

42611GVALVE (FOR TUBELESS TIRE)

main90049-02019×4iF800..GEN,IDN,PH,VN201712

3 parts on this diagram · 5 diagrams in section
