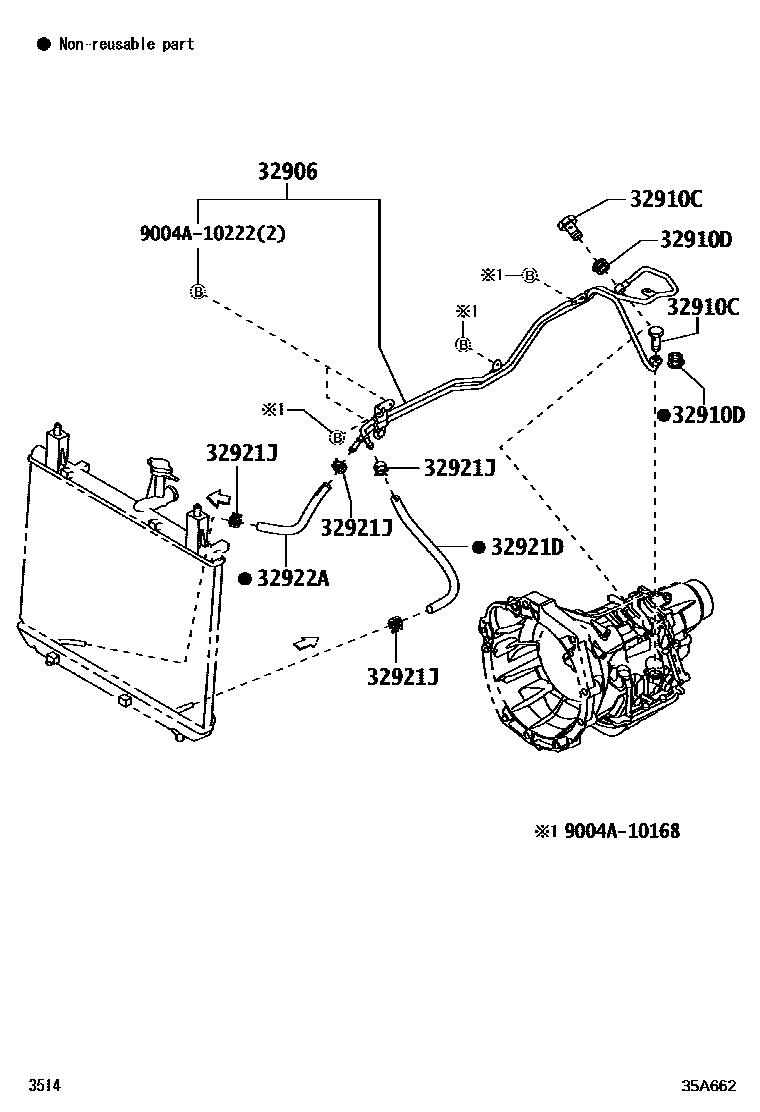

OIL COOLER & TUBE (ATM)

32906TUBE SUB-ASSY, OIL COOLER

main32909-BZ100iF800..E4AT..MID..PH201712-202305

32910CBOLT, UNION(FOR OIL COOLER)

main90044-01081×2iF800..E4AT..MID..PH201712-202305

32910DGASKET(FOR OIL COOLER)

main9004A-43023×2iF800..E4AT..MID..PH201712-202305

32921DHOSE(FOR OIL COOLER INLET)

main32941-B0020iF800..E4AT..MID..PH201712-202305

32921JCLIP(FOR OIL COOLER HOSE)

main90466-16002×4iF800..E4AT..MID..PH201712-202305

32922AHOSE(FOR OIL COOLER OUTLET)

main32942-B0040iF800..E4AT..MID..PH201712-202305

9004A10168

main9004A-10168

9004A10222

main9004A-10222

8 parts on this diagram · 1 diagram in section
