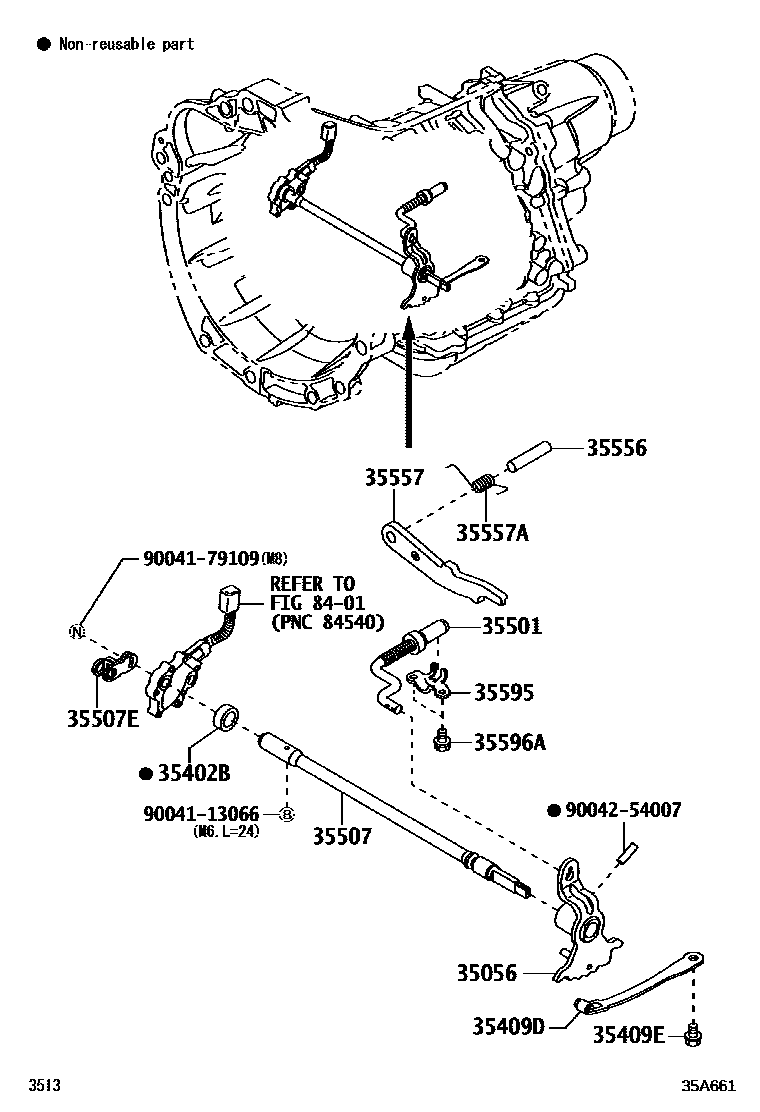

THROTTLE LINK & VALVE LEVER (ATM)

35056LEVER SUB-ASSY, PARKING LOCK W/ROLLER

main35057-B1010iF800..E4AT..MID..PH201712-202305

35402BSEAL,OIL(FOR MANUAL VALVE)

main90043-11256iF800..E4AT..MID..PH201712-202305

35409DSPRING SUB-ASSY, MANUAL DETENT

main35409-B1020iF800..E4AT..MID..PH201712-202305

35409EBOLT(FOR MANUAL DETENT SPRING)

main90041-05511iF800..E4AT..MID..PH201712-202305

35501ROD SUB-ASSY, PARKING LOCK

main35501-B5010iF800..E4AT..MID..PH201712-202305

35507SHAFT SUB-ASSY, TRANSMISSION CONTROL INTERMEDIATE

main33511-B1010iF800..E4AT..MID..PH201712-202305

35507ELEVER,TRANSMISSION CONTROL SHAFT

main35507-87402iF800..E4AT..MID..PH201712-202305

35556SHAFT, PARKING LOCK PAWL

main35556-87502iF800..E4AT..MID..PH201712-202305

35557PAWL, PARKING LOCK

main35557-B1020iF800..E4AT201712-202003

main35557-B1030iF800..E4AT..MID..PH202004-202305

35557ASPRING, TORSION (FOR PARKING LOCK PAWL)

main90045-08419iF800..E4AT..MID..PH201712-202305

35595BRACKET, PARKING LOCK PAWL

main35595-B1020iF800..E4AT..MID..PH201712-202305

35596ABOLT (FOR PAWL STOPPER PLATE)

main90041-05412×2iF800..E4AT..MID..PH201712-202305

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004113066

main90041-13066

9004179109

main90041-79109

9004254007

main90042-54007

16 parts on this diagram · 1 diagram in section
