TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (MTM)

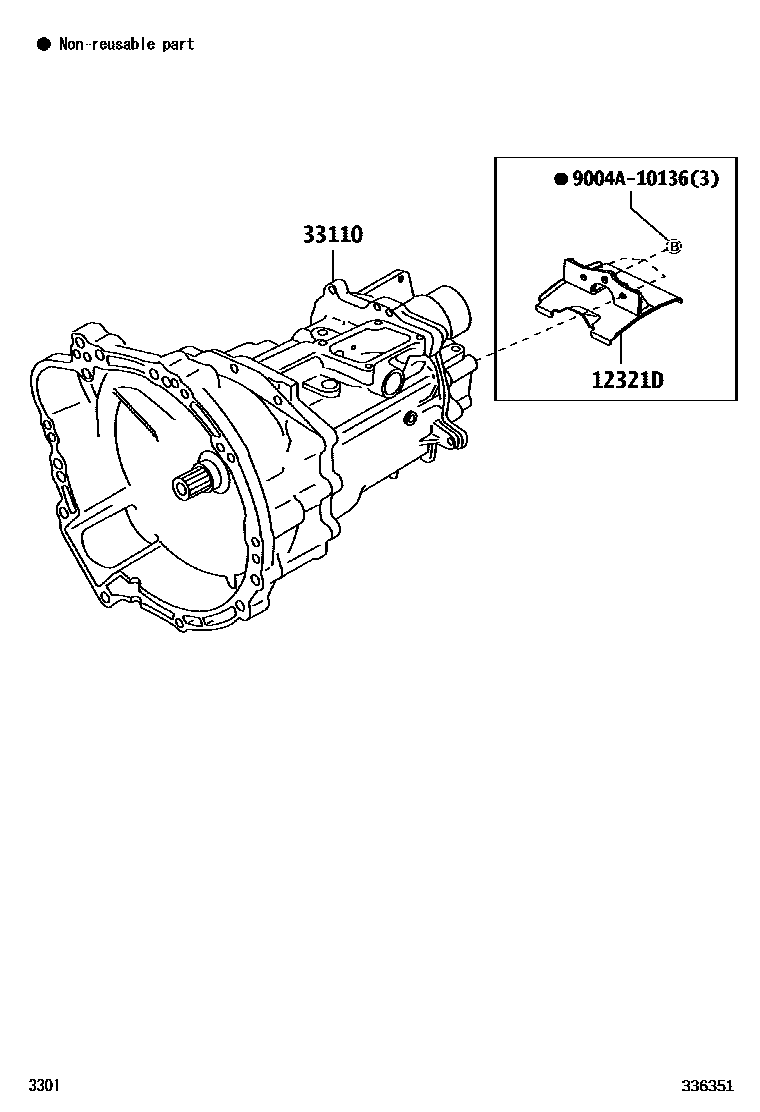

Parts diagram

12321DBRACKET, ENGINE MOUNTING, REAR

main12321-BZ250i201712-202305

33110TRANSMISSION ASSY, MANUAL

main33030-BZ370i201712-202305

9004A10136

main9004A-10136

3 parts on this diagram · 1 diagram in section
