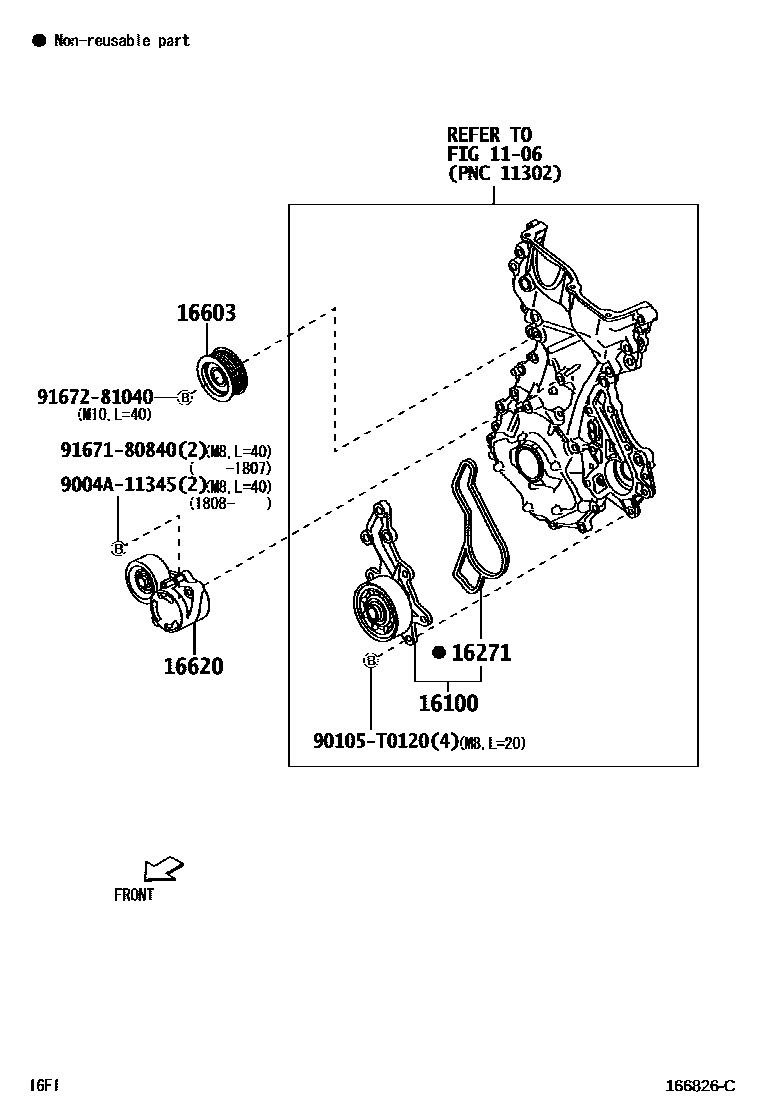

WATER PUMP

1106TIMING GEAR COVER & REAR END PLATE

→ Go to FIG 11-06

16100PUMP ASSY, ENGINE WATER

main16100-B9490i2NRVE..F800..MID..PH201712-202305

16271GASKET, WATER PUMP

main16271-0Y030i2NRVE..F800..MID..PH201712-202305

16603PULLEY SUB-ASSY, IDLER, NO.1

main16603-BZ040i2NRVE..F800201712-201809

main16603-BZ041i2NRVE..F800..MID..PH201809-202305

16620TENSIONER ASSY, V-RIBBED BELT

main16620-BZ010i2NRVE..F800..MID..PH201712-202305

9004A11345

main9004A-11345

90105T0120

main90105-T0120

9167180840

main91671-80840

9167281040

main91672-81040

9 parts on this diagram · 1 diagram in section
