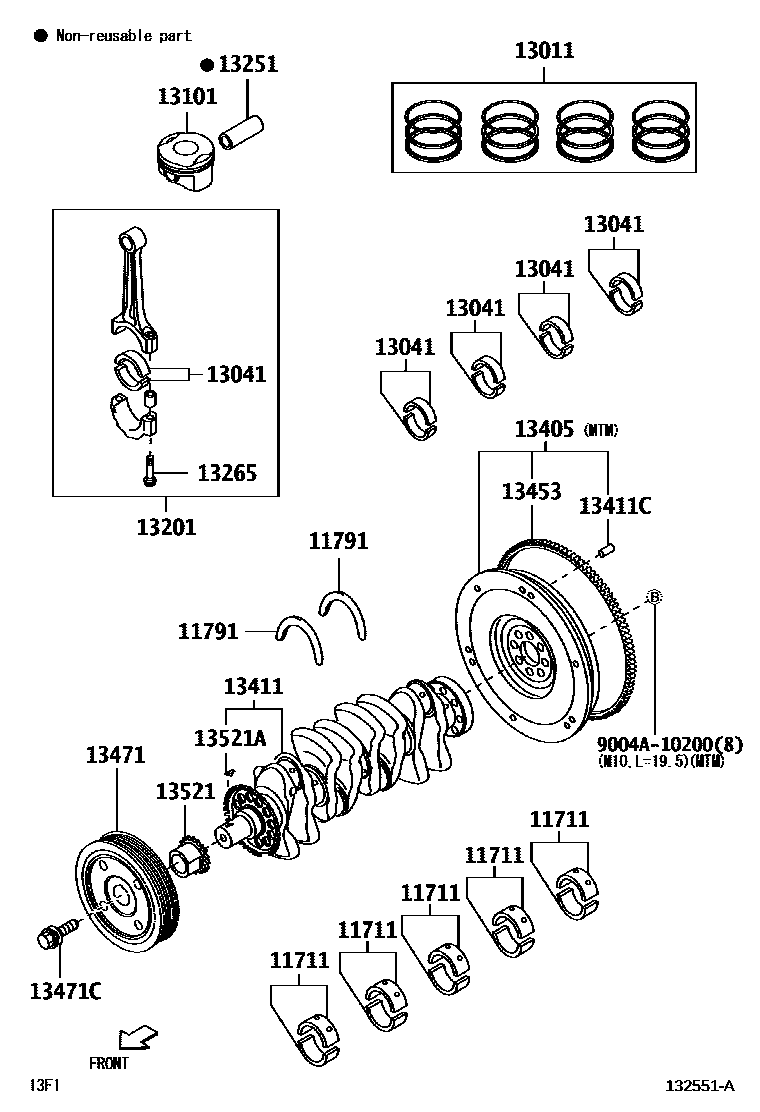

CRANKSHAFT & PISTON

11711BEARING, CRANKSHAFT

main11701-0Y030-02×5i2NRVE..F800..HI..PH;2NRVE..F800..GCC,GEN,IDN,VN201712

MARK2,REFER REPAIR MANUAL

main11701-0Y030-03×5i2NRVE..F800..HI..PH;2NRVE..F800..GCC,GEN,IDN,VN201712

MARK3,REFER REPAIR MANUAL

main11701-0Y030-04×5i2NRVE..F800..HI..PH;2NRVE..F800..GCC,GEN,IDN,VN201712

MARK4,REFER REPAIR MANUAL

main11701-0Y030-05×5i2NRVE..F800..MID..PH201712-202305

MARK5,REFER REPAIR MANUAL

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-B0010×2i2NRVE..F800..MID..PH201712-202305

STD

13011RING SET, PISTON

main13011-0Y030i2NRVE..F800..MID..PH201712-202305

STD

13041BEARING, CONNECTING ROD

main13041-0Y040-01×4i2NRVE..F800..MID..PH201712-202305

MARK1,REFER REPAIR MANUAL

main13041-0Y040-02×4i2NRVE..F800..HI..PH;2NRVE..F800..GCC,GEN,IDN,VN201712

MARK2,REFER REPAIR MANUAL

main13041-0Y040-03×4i2NRVE..F800..MID..PH201712-202305

MARK3,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13211-0Y061×4i2NRVE..F800..MID..PH201712-202305

STD

13201ROD SUB-ASSY, CONNECTING

main13201-B9095×4i2NRVE..F800..MID..PH201712-202305

13251PIN, PISTON

main13251-0Y030×4i2NRVE..F800..MID..PH201712-202305

13265BOLT, CONNECTING ROD

main13265-0Y020×8i2NRVE..F800..MID..PH202001-202305

main13265-21020×8i2NRVE..F800201712-202001

13405FLYWHEEL SUB-ASSY

main13405-BZ150i2NRVE..F800..5F..IDN201712-202108

main13405-BZ210i2NRVE..F800..5F..IDN202108

13411CRANKSHAFT

main13401-BZ030i2NRVE..F800201712-201801

main13401-BZ100i2NRVE..F800..MID..PH201801-202305

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main9004A-25035×3i2NRVE..F800..5F..MID..PH201712-202305

13453GEAR, FLYWHEEL RING

main13453-87Z03i2NRVE..F800..5F..IDN201712-202108

main13453-BZ120i2NRVE..F800..5F..IDN202108

13471PULLEY, CRANKSHAFT

main13470-BZ070i2NRVE..F800..MID..PH201712-202305

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-T0444i2NRVE..F800..MID..PH201712-202305

M14,L=45

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-0Y040i2NRVE..F800..MID..PH201712-202305

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main90280-04001i2NRVE..F800..MID..PH201712-202305

9004A10200

main9004A-10200

17 parts on this diagram · 1 diagram in section
