Toyota 615310 — VENTILATION HOSE

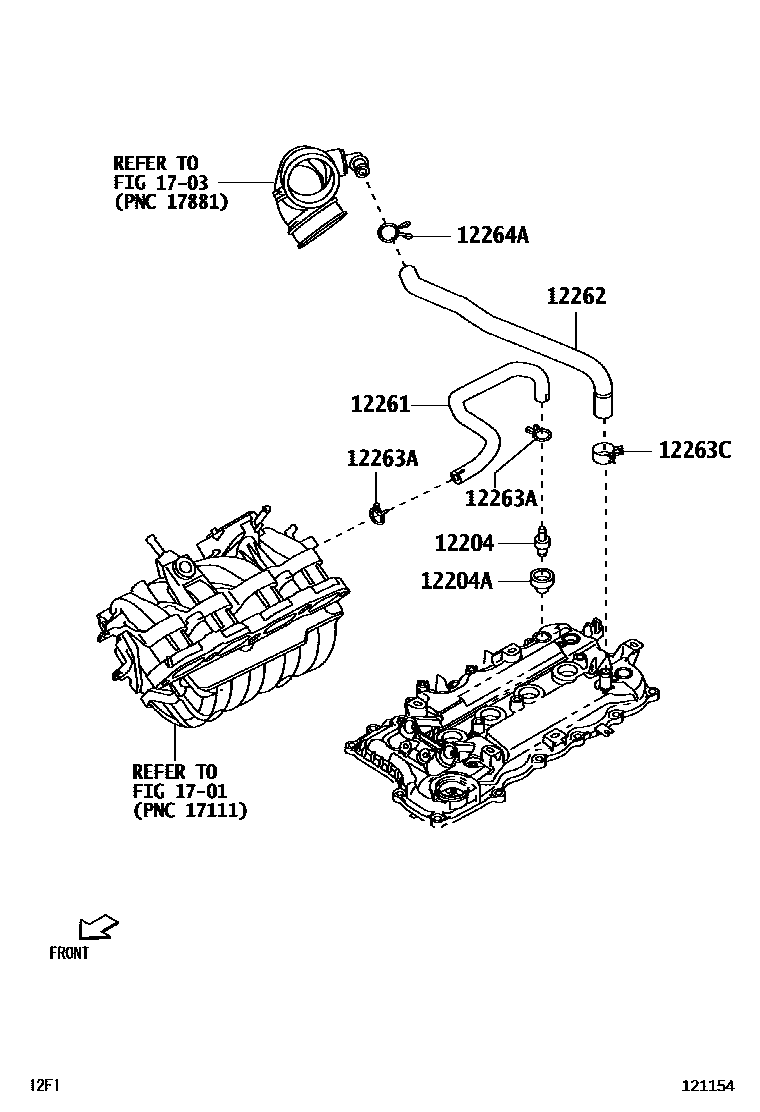

Parts diagram

12204VALVE SUB-ASSY, VENTILATION

12204AGROMMET(FOR VENTILATION SYSTEM)

12261HOSE, VENTILATION

12262HOSE, VENTILATION, NO.2

12263ACLIP(FOR VENTILATION HOSE)

12263CCLIP(FOR VENTILATION HOSE)

12264ACLIP(FOR VENTILATION HOSE)

1701MANIFOLD

→ Go to FIG 17-01

1703AIR CLEANER

→ Go to FIG 17-03

9 parts on this diagram · 1 diagram in section

VENTILATION HOSE for Toyota 615310

This section contains 9 genuine Toyota parts for the VENTILATION HOSE system of the Toyota 615310. Key components include: VALVE SUB-ASSY, VENTILATION, GROMMET(FOR VENTILATION SYSTEM), HOSE, VENTILATION, HOSE, VENTILATION, NO.2, CLIP(FOR VENTILATION HOSE).
