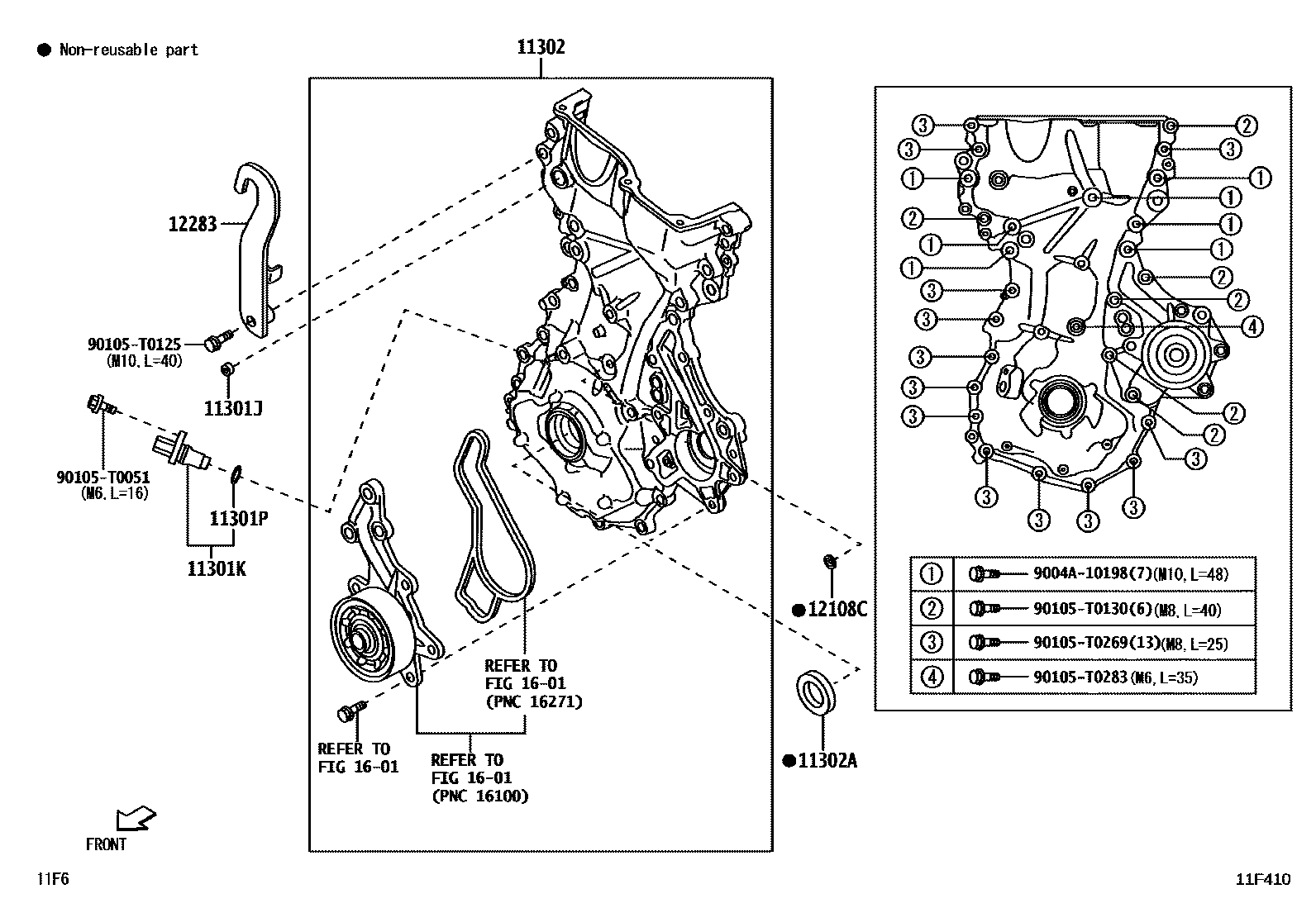

TIMING GEAR COVER & REAR END PLATE

0001 1 0002 1

11301JPLUG, W/HEAD STRAIGHT SCREW(FOR TIMING GEAR CASE)

main90043-44022i2NRVE..F800..MID..PH201712-202305

11301KSENSOR, CRANK POSITION

main9004A-19006i2NRVE..F800..IDN202108

main90919-T5001i2NRVE..F800..MID..PH201712-202305

11301PO RING, CRANK POSITION SENSOR

main9004A-30059i2NRVE..F800..MID..PH201712-202305

11302COVER SUB-ASSY, TIMING CHAIN OR BELT

main11310-BZ070i2NRVE..F800..IDN202108

main11310-BZ130i2NRVE..F800..MID..PH201712-202305

11302ASEAL, OIL(FOR TIMING CHAIN OR BELT COVER)

main90311-T0076i2NRVE..F800..MID..PH201712-202305

12108CGASKET

main16258-0Y010i2NRVE..F800..MID..PH201712-202305

12283HANGER, ENGINE, NO.3

main12283-BZ030i2NRVE..F800..MID..PH201712-202305

1601WATER PUMP

→ Go to FIG 16-01

9004A10198

main9004A-10198

90105T0051

main90105-T0051

90105T0125

main90105-T0125

90105T0130

main90105-T0130

90105T0269

main90105-T0269

90105T0283

main90105-T0283

14 parts on this diagram · 2 diagrams in section
