SWITCH & RELAY & COMPUTER

0001 1 0002 1 0003 1 0004 1

1703

83181GSENSOR, SPEEDOMETER

main83181-B0010iF700..5F..G200612-200806

main83181-BZ080iF700..5F..G201010-201503

83320GAGE ASSY, FUEL SENDER

main83301-BZ010iF700..IDN201010-201111

main83301-BZ011iF700201503-201508

W/PART NUMBER MARK

main83301-BZ100iF700..MA200712-201009

main83301-BZ190iF700201508

W/PART NUMBER MARK

83530SWITCH ASSY, OIL PRESSURE (FOR ENGINE)

main83530-97401iF700201010-201503

84210SWITCH ASSY, BACK-UP LAMP

main84210-BZ080iF700..5F201010-201503

main84210-BZ110iF700..5F201503-201711

84210BGASKET, BACK-UP LAMP SWITCH

main9004A-43007iF700..5F201503

84540SWITCH ASSY, NEUTRAL START

main84540-97502iF700..E4AT200612-201009

main84540-B0010iF700..E4AT201105-201503

89421BSENSOR, VACUUM

main89421-BZ010iF700201010-201503

89422ASENSOR, WATER TEMPERATURE

main89422-BZ010iF700201010-201503

89424GSENSOR, INLET AIR TEMPERATURE

main89424-87703iF700200612-201009

89465SENSOR, OXYGEN

main89465-BZ070iF700200612-201009

89615SENSOR, KNOCK CONTROL

main89615-20090iF700200612-200709

main89615-BZ030iF700201010-201211

main89615-BZ040iF700201212-201503

82715BZ400BRACKET,WIRING HARNESS CLAMP

main82715-BZ400

9012608039

main90126-08039

9017908153

main90179-08153

9043012221

main90430-12221

9155180616

main91551-80616

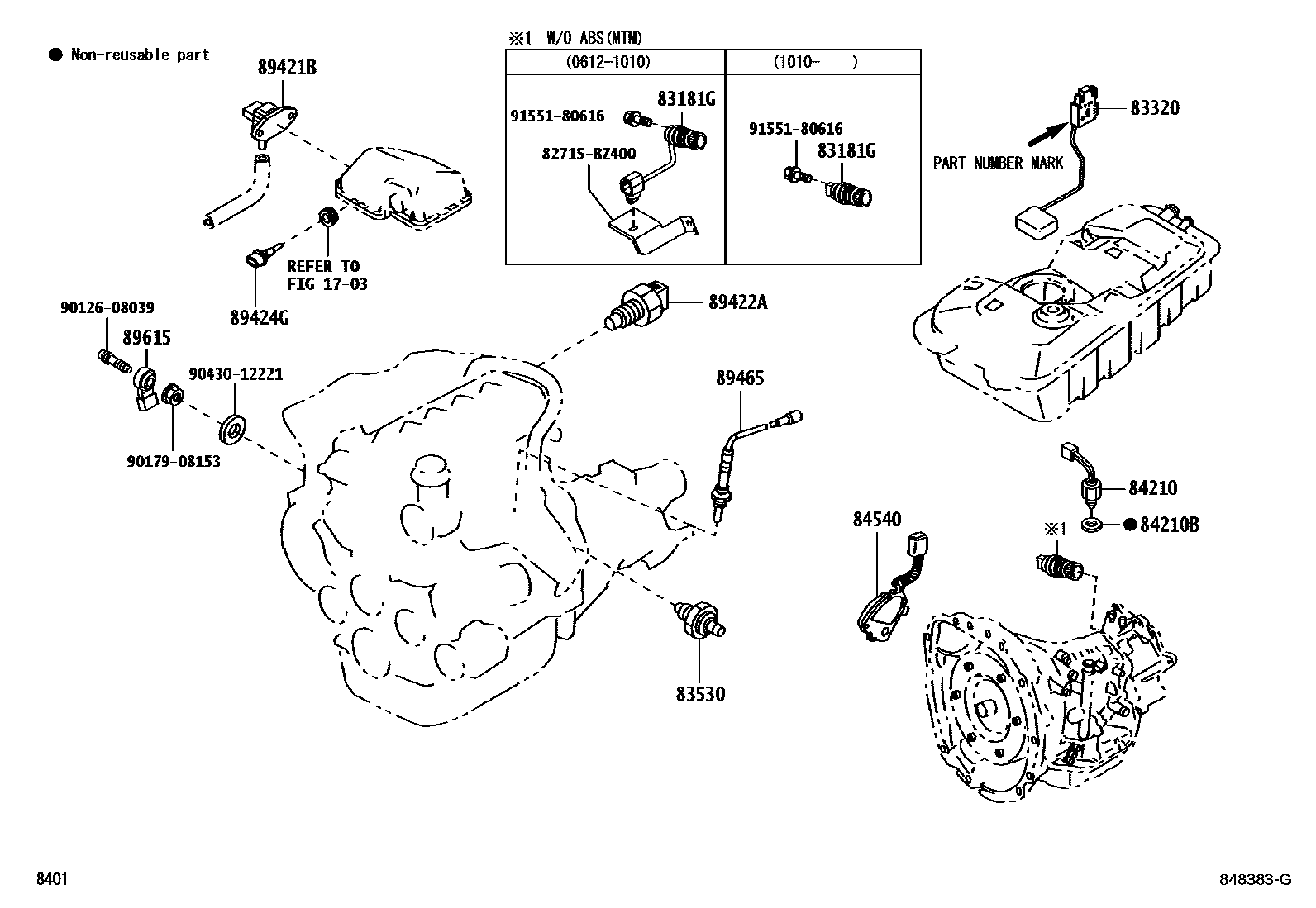

17 parts on this diagram · 4 diagrams in section
