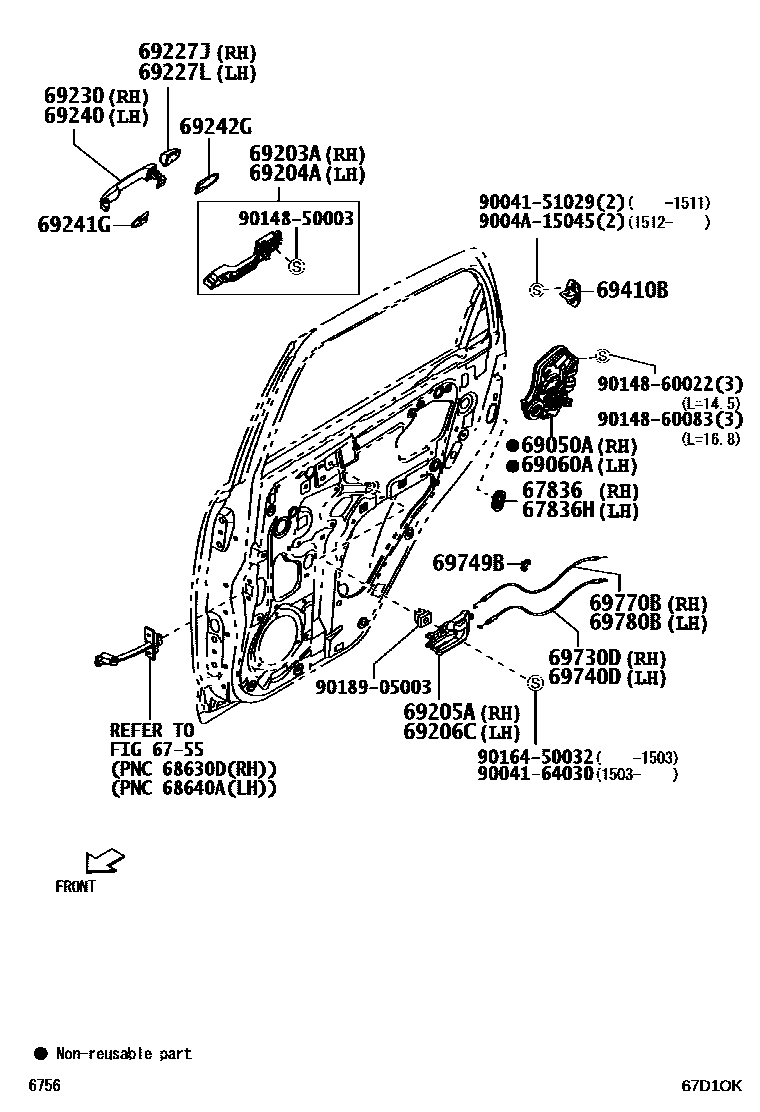

REAR DOOR LOCK & HANDLE

6755

67836COVER, REAR DOOR LOCK CHILD PROTECTION, RH

main67836-BZ020iF700200612-201503

67836HCOVER, REAR DOOR LOCK CHILD PROTECTION, LH

main67836-BZ020iF700200612-201503

69050ALOCK ASSY, REAR DOOR W/MOTOR, RH

main69050-BZ030iF700200612-201710

sub69050-BZ100

69060ALOCK ASSY, REAR DOOR W/MOTOR, LH

main69060-BZ030iF700200612-201710

sub69060-BZ100

69203AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, RH

main69203-BZ020iF700200612-201503

69204AFRAME SUB-ASSY, REAR DOOR OUTSIDE HANDLE, LH

main69204-BZ020iF700200612-201503

69205AHANDLE SUB-ASSY, REAR DOOR INSIDE, RH

main69205-BZ031-A0iF700..S;F700..G..IDN200612-201009

IVORY,TRIM4#

main69205-BZ031-B0iF700..S;F700..G..IDN201010-201503

DK.GRAY,TRIM1#

main69205-BZ031-E0iF700..S;F700..G..IDN201010-201503

GREGE,TRIM4#

main69205-BZ041-A0iF700..G..MA200712-201009

IVORY,TRIM4#

main69205-BZ041-B0iF700..G..MA201010-201503

DK.GRAY,TRIM1#

main69205-BZ041-E0iF700..G..MA201010-201503

GREGE,TRIM4#

69206CHANDLE SUB-ASSY, REAR DOOR INSIDE, LH

main69206-BZ031-A0iF700..S;F700..G..IDN200612-201009

IVORY,TRIM4#

main69206-BZ031-B0iF700..S;F700..G..IDN201010-201503

DK.GRAY,TRIM1#

main69206-BZ031-E0iF700..S;F700..G..IDN201010-201503

GREGE,TRIM4#

main69206-BZ041-A0iF700..G..MA200712-201009

IVORY,TRIM4#

main69206-BZ041-B0iF700..G..MA201010-201503

DK.GRAY,TRIM1#

main69206-BZ041-E0iF700..G..MA201010-201503

GREGE,TRIM4#

69227JCOVER, REAR DOOR OUTSIDE HANDLE, RH

main69227-BZ050iF700200612-201503

69227LCOVER, REAR DOOR OUTSIDE HANDLE, LH

main69227-BZ050iF700200612-201503

69230HANDLE ASSY, REAR DOOR OUTSIDE, RH

main69211-BZ070iF700200612-201503

PLATED

69240HANDLE ASSY, REAR DOOR OUTSIDE, LH

main69211-BZ070iF700200612-201503

PLATED

69241GPAD, REAR DOOR OUTSIDE HANDLE, FRONT

main69241-BZ040iF700200612-201503

69242GPAD, REAR DOOR OUTSIDE HANDLE, REAR

main69242-BZ020iF700200612-201503

69410BPLATE ASSY, REAR DOOR LOCK STRIKER

main69410-BZ010iF700200612-201503

69730DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL, RH

main69730-BZ100iF700200612-201503

69740DCABLE ASSY, REAR DOOR LOCK REMOTE CONTROL LH

main69730-BZ100iF700200612-201503

69749BCLAMP, REAR DOOR LOCK LINK

main69749-32040iF700200612-201601

main69749-BZ100iF700201602

69770BCABLE ASSY, REAR DOOR INSIDE LOCKING, RH

main69770-BZ030iF700200612-201503

69780BCABLE ASSY, REAR DOOR INSIDE LOCKING, LH

main69780-BZ030iF700200612-201503

9004151029

main90041-51029

9004164030

main90041-64030

9004A15045

main9004A-15045

9014850003

main90148-50003

9014860022

main90148-60022

9014860083

main90148-60083

9016450032

main90164-50032

9018905003

main90189-05003

29 parts on this diagram · 1 diagram in section
