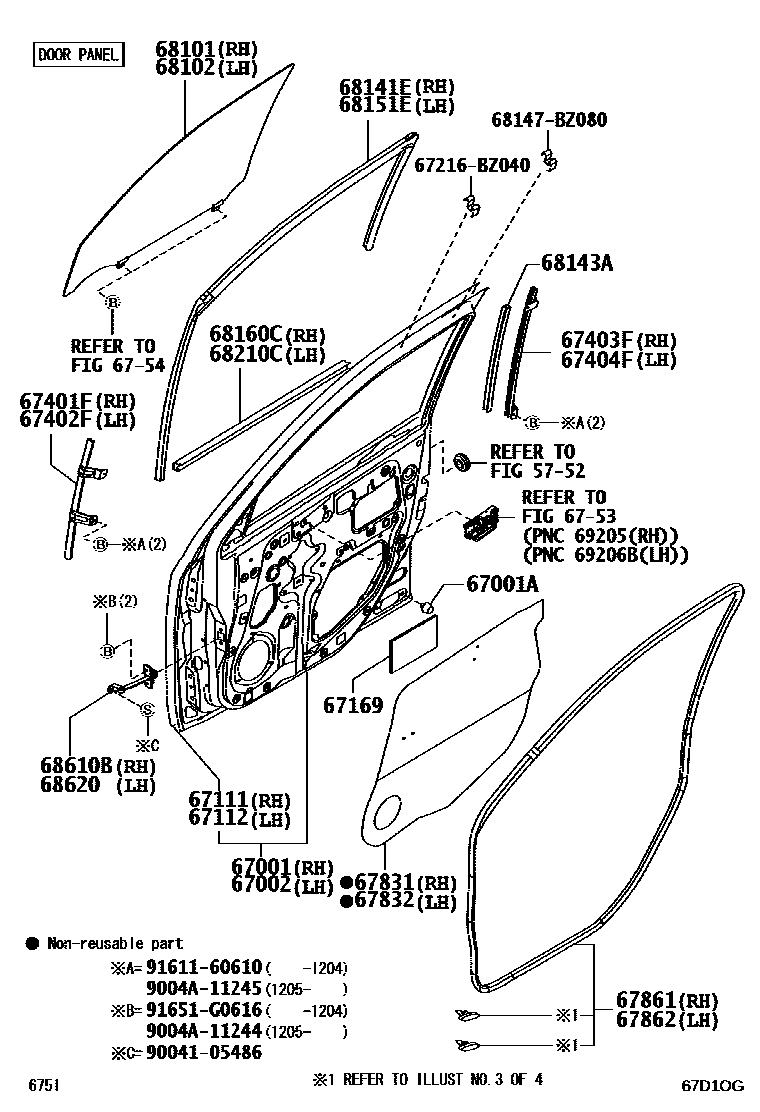

FRONT DOOR PANEL & GLASS

0001 1DOOR PANEL 0002 1DOOR TRIM 0003 1WEATERSTRIP RETAINER & CLIP 0004 1BLACK OUT TAPE

5752HOLE PLUG

→ Go to FIG 57-52

67001PANEL SUB-ASSY, FRONT DOOR, RH

main67001-BZ160iF700200612-201503

main67001-BZ550iF700201503

67001ACUSHION, FRONT DOOR PANEL

main90541-09069iF700200612-201503

67002PANEL SUB-ASSY, FRONT DOOR, LH

main67002-BZ150iF700200612-201503

main67002-BZ550iF700201503

67111PANEL, FRONT DOOR, OUTER RH

main67111-BZ080iF700200612-201503

67112PANEL, FRONT DOOR, OUTER LH

main67112-BZ080iF700200612-201503

67169LINING, DOOR OUTSIDE PANEL REINFORCEMENT

main67169-BZ010iF700200612-200708

67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH

main67401-BZ020iF700200612-201503

67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH

main67402-BZ020iF700200612-201503

67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH

main67403-BZ030iF700200612-201503

67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH

main67404-BZ030iF700200612-201503

6753FRONT DOOR LOCK & HANDLE

→ Go to FIG 67-53

6754FRONT DOOR WINDOW REGULATOR & HINGE

→ Go to FIG 67-54

67831COVER, FRONT DOOR SERVICE HOLE, RH

main67831-BZ080iF700200612-201009

main67831-BZ080iF700201010-201503

W/SPEAKER

67832COVER, FRONT DOOR SERVICE HOLE, LH

main67831-BZ080iF700200612-201009

main67831-BZ080iF700201010-201503

W/SPEAKER

67861WEATHERSTRIP, FRONT DOOR, RH

main67861-BZ060iF700200612-201503

67862WEATHERSTRIP, FRONT DOOR, LH

main67862-BZ040iF700200612-201503

68101GLASS SUB-ASSY, FRONT DOOR, RH

main68101-BZ110iF700200612-200710

main68101-BZ120iF700200710-201503

68102GLASS SUB-ASSY, FRONT DOOR, LH

main68102-BZ100iF700200612-200710

main68102-BZ110iF700200710-201503

68141ERUN, FRONT DOOR GLASS, RH

main68141-BZ040iF700200612-201503

68143ARUN, FRONT DOOR GLASS, NO.2

main68143-BZ020iF700200612-201503

68151ERUN, FRONT DOOR GLASS, LH

main68151-BZ040iF700200612-201503

68160CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER RH

main68161-BZ050iF700200612-201503

68210CWEATHERSTRIP ASSY, FRONT DOOR GLASS, OUTER LH

main68162-BZ040iF700200612-201503

68610BCHECK ASSY, FRONT DOOR, RH

main68610-BZ050iF700200612-201503

68620CHECK ASSY, FRONT DOOR, LH

main68620-BZ040iF700200612-201503

67216BZ040SPACER, REAR DOOR GLASS CHANNEL

main67216-BZ040

68147BZ080RUN, REAR DOOR WINDOW, REAR

main68147-BZ080

9004105486

main90041-05486

9004A11244

main9004A-11244

9004A11245

main9004A-11245

9161160610

main91611-60610

91651G0616

main91651-G0616

33 parts on this diagram · 4 diagrams in section
