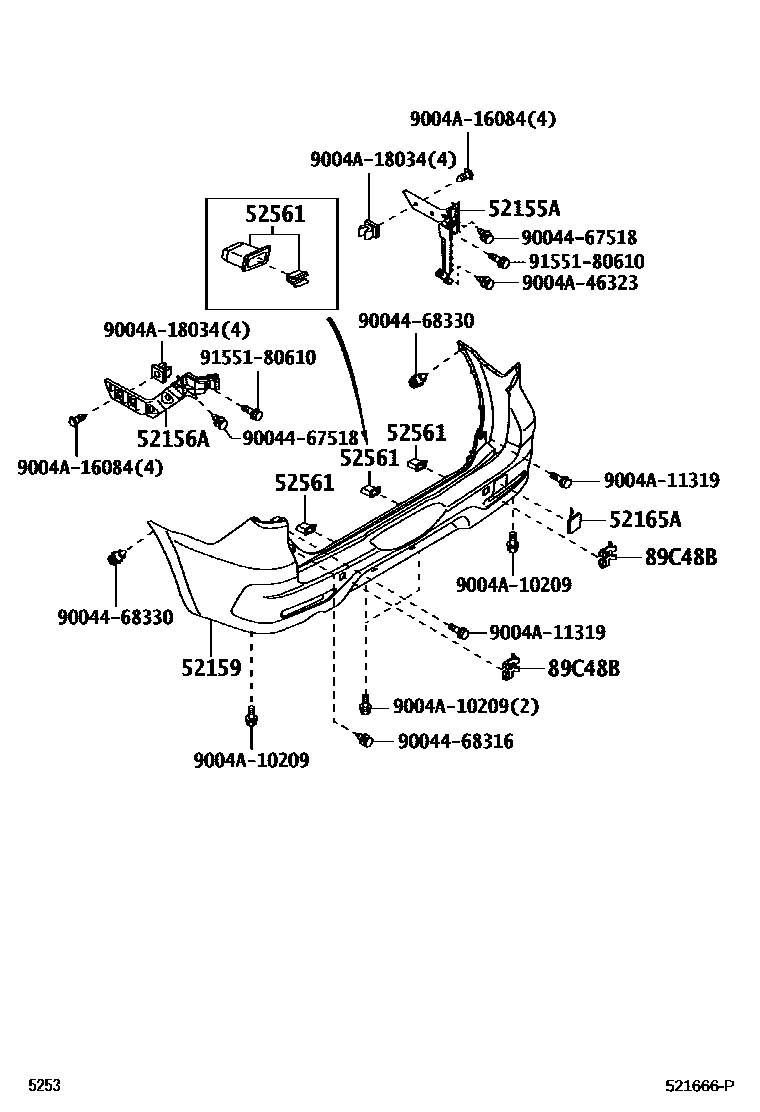

REAR BUMPER & BUMPER STAY

52155ASUPPORT, REAR BUMPER SIDE, RH

main52155-BZ040iF700200612-201002

main52155-BZ041iF700201003-201009

52156ASUPPORT, REAR BUMPER SIDE, LH

main52156-BZ050iF700200612-201002

main52156-BZ051iF700201003-201009

52159COVER, REAR BUMPER

main52159-BZ430iF700..S..IDN200612-201009

main52159-BZ440iF700..G..IDN200612-201009

main52159-BZ450iF700..MA200712-201009

main52159-BZ700iF700..S..IDN201010-201503

main52159-BZ710iF700..G..IDN201010-201503

main52159-BZ720iF700..MA201010-201503

main52159-BZD20iF700..MA;F700..S..IDN201503

main52159-BZD30iF700..G..IDN201503

52165ACOVER, REAR BUMPER, UPR RH

main52165-BZ070iF700201503

main52165-BZ110iF700200612-201009

main52165-BZ220iF700201010-201503

52561RETAINER, REAR BUMPER, UPPER CENTER

main52561-B1010×3iF700201503

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

main89348-BZ020×2iF700..MA; F700..S..IDN201503-201711

W/BACK SONER(D-OPT)

9004467518

main90044-67518

9004468316

main90044-68316

9004468330

main90044-68330

9004A10209

main9004A-10209

9004A11319

main9004A-11319

9004A16084

main9004A-16084

9004A18034

main9004A-18034

9004A46323

main9004A-46323

9155180610

main91551-80610

15 parts on this diagram · 1 diagram in section
