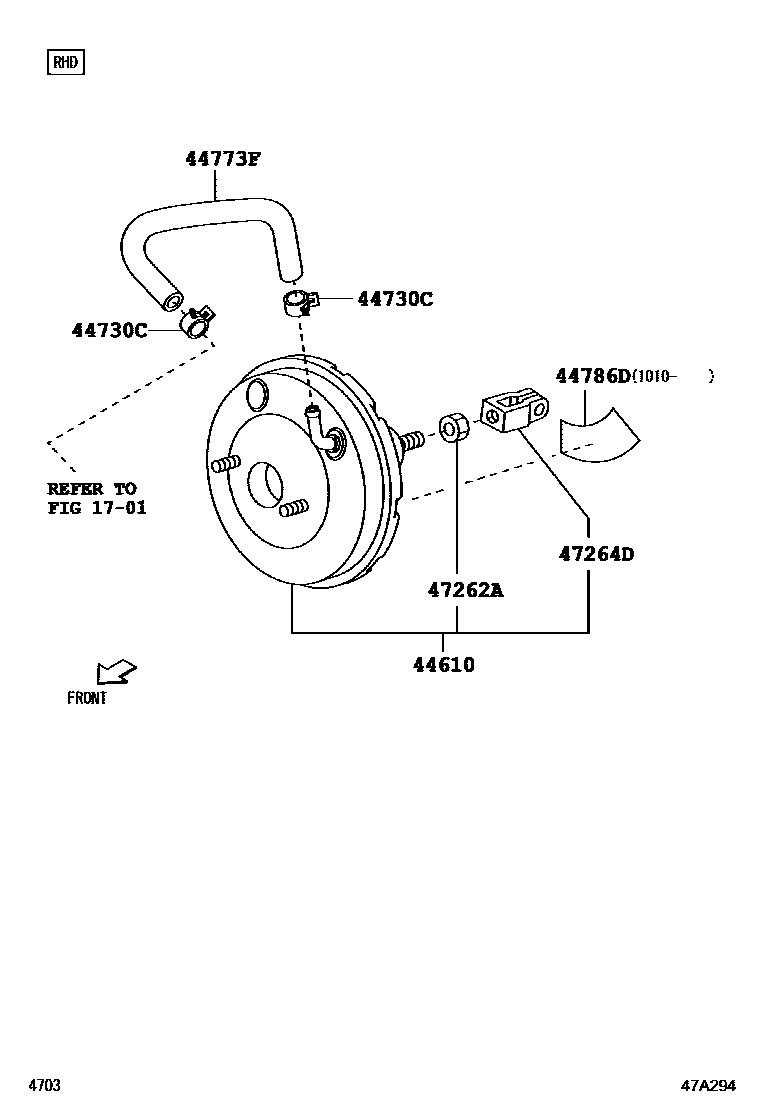

BRAKE BOOSTER & VACUUM TUBE

1701MANIFOLD

→ Go to FIG 17-01

44610BOOSTER ASSY, BRAKE

main44610-BZ040iF700200612-201009

main44610-BZ290iF700201010-201503

main44610-BZ550iF700201503

44730CCLIP(FOR VACUUM HOSE)

main90044-67161×2iF700200612-201009

44773FHOSE, UNION TO CHECK VALVE

main44750-BZ010iF700200612-201009

44786DPROTECTOR, BRAKE BOOSTER

main87268-BZ010iF700..IDN201010-201503

47262ANUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK

main9004A-17130iF700200612-201009

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-BZ010iF700200612-201009

7 parts on this diagram · 1 diagram in section
