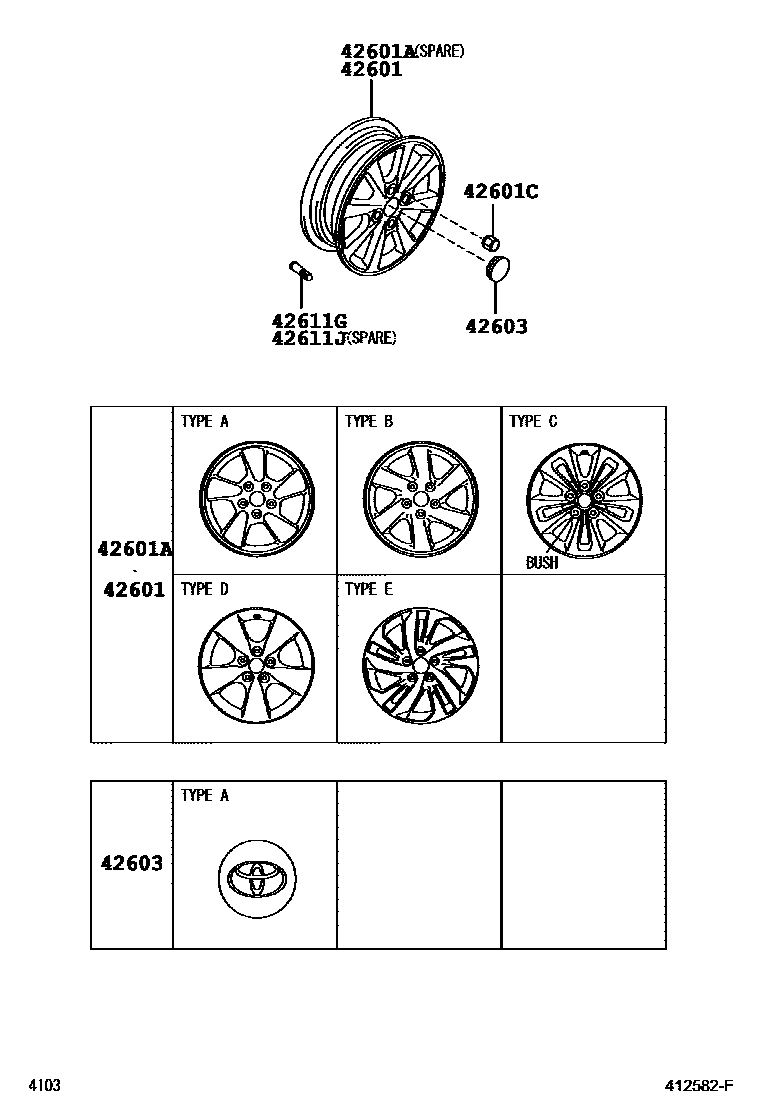

DISC WHEEL & WHEEL CAP

0001 1 0002 1 0003 1 0004 1

42601WHEEL, DISC

main42611-BZ220×4iF700..MA200712-201009

16X6J,ALUMI,SILVER,TYPE B

main42611-BZ230×4iF700..IDN200612-201009

16X6J 1/2J,ALUMI,SIL,TYPE A

main42611-BZ420×4iF700..MA201010-201407

16X6J,ALUMI,SILVER,TYPE C PAKO W/BUSH

main42611-BZ421×4iF700..MA201407-201503

16X6J,ALUMI,SLIVER,TYPE C PAKO L/BUSH

main42611-BZ430×4iF700..IDN201010-201405

16X6 1/2J,ALUMI,TYPE D EXCEL

main42611-BZ431×4iF700..IDN201406-201503

16X6 1/2J,ALUMI,TYPE D EXCEL

main42611-BZ830×4iF700201503

16X6 1/2J,ALUMI,TYPE E EXCEL

main42611-BZC00×4iF700..S..IDN201602

16X6.5J,ALUMI,TRD RUSH SPECAL EDITION

42601AWHEEL, DISC (FOR SPARE)

main42611-BZ220iF700..MA200712-201009

16X6J,ALUMI,SILVER,TYPE B

main42611-BZ230iF700..IDN200612-201009

16X6J 1/2J,ALUMI,SIL,TYPE A

main42611-BZ420iF700..MA201010-201407

16X6J,ALUMI,SILVER,TYPE C PAKO W/BUSH

main42611-BZ421iF700..MA201407-201503

16X6J,ALUMI,SLIVER,TYPE C PAKO L/BUSH

main42611-BZ430iF700..IDN201010-201405

16X6 1/2J,ALUMI,TYPE D EXCEL

main42611-BZ431iF700..IDN201406-201503

16X6 1/2J,ALUMI,TYPE D EXCEL

main42611-BZ830iF700201503

16X6 1/2J,ALUMI,TYPE E EXCEL

main42611-BZC00iF700..S..IDN201602

16X6.5J,ALUMI,TRD RUSH SPECAL EDITION

42601CNUT, HUB (FOR AXLE)

main90049-11063×20iF700200612-201009

main90049-11064×20iF700201010-201503

YELLOW

main9004A-94124×20iF700201510

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-48140×4iF700201503-201507

*ALU

main42638-BZ180×4iF700200612-201009

TYPE A

main42638-BZ420×4iF700201508

main42638-BZ570×4iF700..S..IDN201602

TRD RUSH SPECAL EDITION

42611GVALVE (FOR TUBELESS TIRE)

main90049-02019×4iF700200612-201009

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90049-02019iF700200612-201009

6 parts on this diagram · 4 diagrams in section
