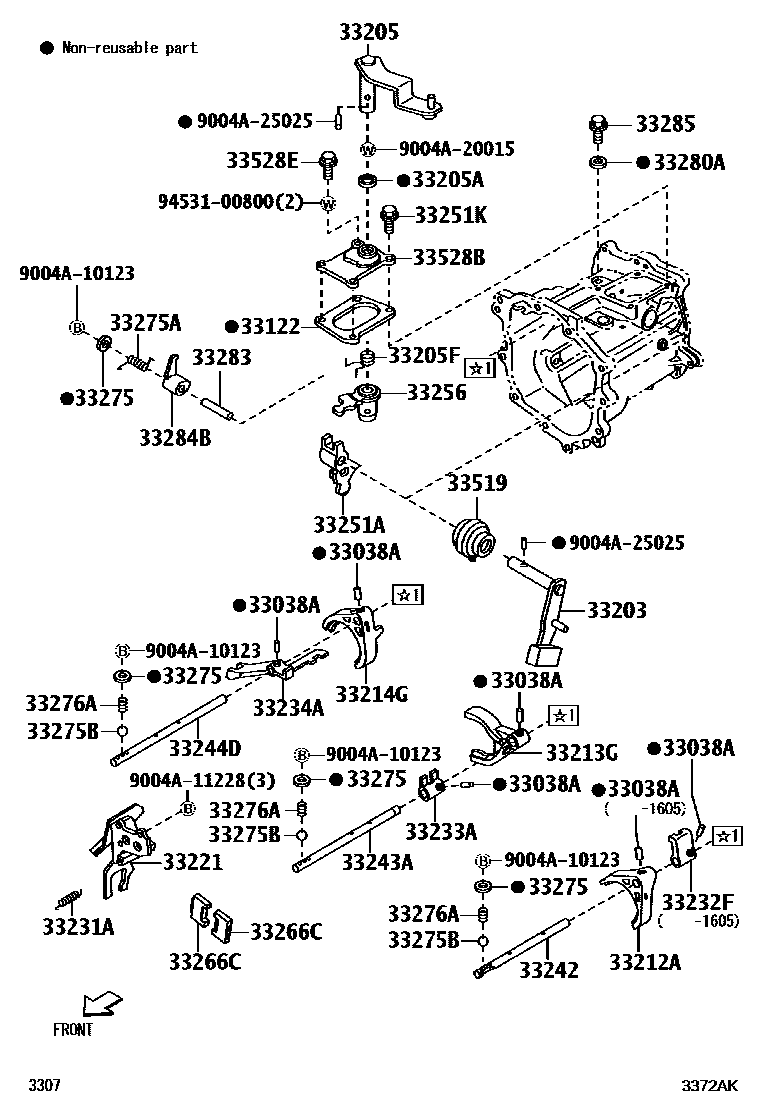

GEAR SHIFT FORK & LEVER SHAFT (MTM)
33038APIN, SLOTTED SPRING
33122GASKET, MANUAL TRANSMISSION CASE COVER
33203SHAFT SUB-ASSY, SHIFT LEVER, NO.1
33205SHAFT SUB-ASSY, SELECT LEVER
33205ASEAL, OIL(FOR SHIFT LEVER NO.2 SHAFT)
33205FSPRING, COMPRESSION(FOR SELECT RETURN)
33212AFORK, GEAR SHIFT, NO.1
33213GFORK, GEAR SHIFT, NO.2
33214GFORK, GEAR SHIFT, NO.3
33231ASPRING, REVERSE SHIFT RESTRICT
33232FHEAD, GEAR SHIFT, NO.1
33233AHEAD, GEAR SHIFT, NO.2
33234AHEAD, GEAR SHIFT, NO.3
33242SHAFT, GEAR SHIFT FORK, NO.1
33243ASHAFT, GEAR SHIFT FORK, NO.2
33244DSHAFT, GEAR SHIFT FORK, NO.3
33251ALEVER, SHIFT, INNER NO.1
33251KBOLT, WASHER BASED HEAD HEXAGON
33256LEVER, SELECT INNER
33266CPLATE, SHIFT INTERLOCK
33275SEAT, SHIFT DETENT BALL SPRING, NO.1
0D=17
33275ASPRING, COMPRESSION (FOR SHIFT DETENT BALL LOW SIDE)
L=22.3
33275BBALL, SHAFT DETENT
33276ASPRING, COMPRESSION, NO.2 (FOR SHIFT DETENT BALL)
33280AGASKET, REVERSE RESTRICT PIN
33283PIN, REVERSE RESTRICT, NO.1
33284BPIN, REVERSE RESTRICT, NO.2
33285HOLDER, REVERSE RESTRICT PIN
33519BOOT, CONTROL SHAFT DUST
33528BCOVER, CONTROL SHAFT
33528EBOLT (FOR CONTROL SHAFT COVER)
9004A10123
main9004A-10123
9004A11228
main9004A-11228
9004A20015
main9004A-20015
9004A25025
main9004A-25025
9453100800
main94531-00800
37 parts on this diagram · 1 diagram in section
