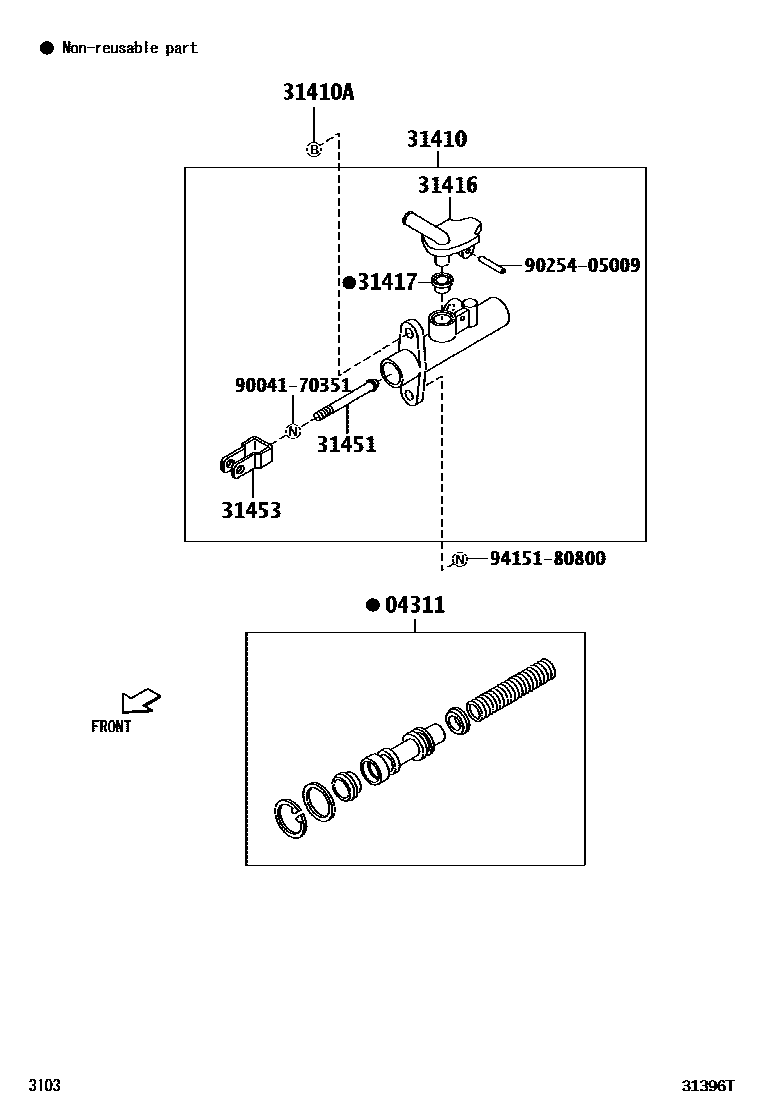

CLUTCH MASTER CYLINDER

0001 1 0002 1

04311CYLINDER KIT, CLUTCH MASTER

main04311-B4010iF700..5F201010-201503

31410CYLINDER ASSY, CLUTCH MASTER

main31420-87402iF700..5F200612-201009

main31420-BZ050iF700..5F201209-201503

31410ABOLT(FOR CLUTCH MASTER CYLINDER SETTING)

main9004A-10217iF700..5F201604

main91551-80814iF700..5F201503-201603

31416UNION, CLUTCH MASTER CYLINDER INLET

main31416-87401iF700..5F200612-201009

31417GROMMET, CLUTCH RESERVOIR

main31417-35010iF700..5F200612-201009

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-87401iF700..5F200612-201009

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31453-10040iF700..5F200612-201009

9004170351

main90041-70351

9025405009

main90254-05009

9415180800

main94151-80800

10 parts on this diagram · 2 diagrams in section
