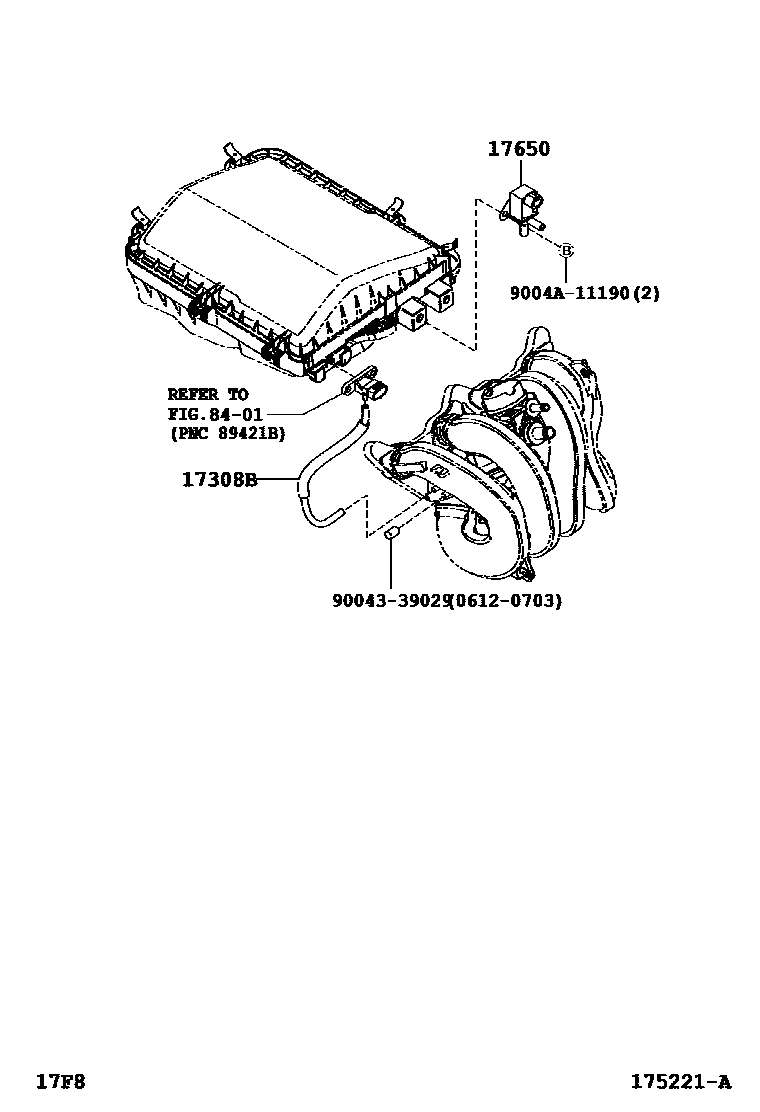

VACUUM PIPING

17308BHOSE SUB-ASSY, VACUUM

main44750-B0050i3SZVE..F700200612-201009

17650VALVE ASSY, VACUUM SWITCHING

main17650-97207i3SZVE..F700200612-201009

main89470-BZ020i3SZVE..F700201106-201503

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9004339029

main90043-39029

9004A11190

main9004A-11190

5 parts on this diagram · 1 diagram in section
