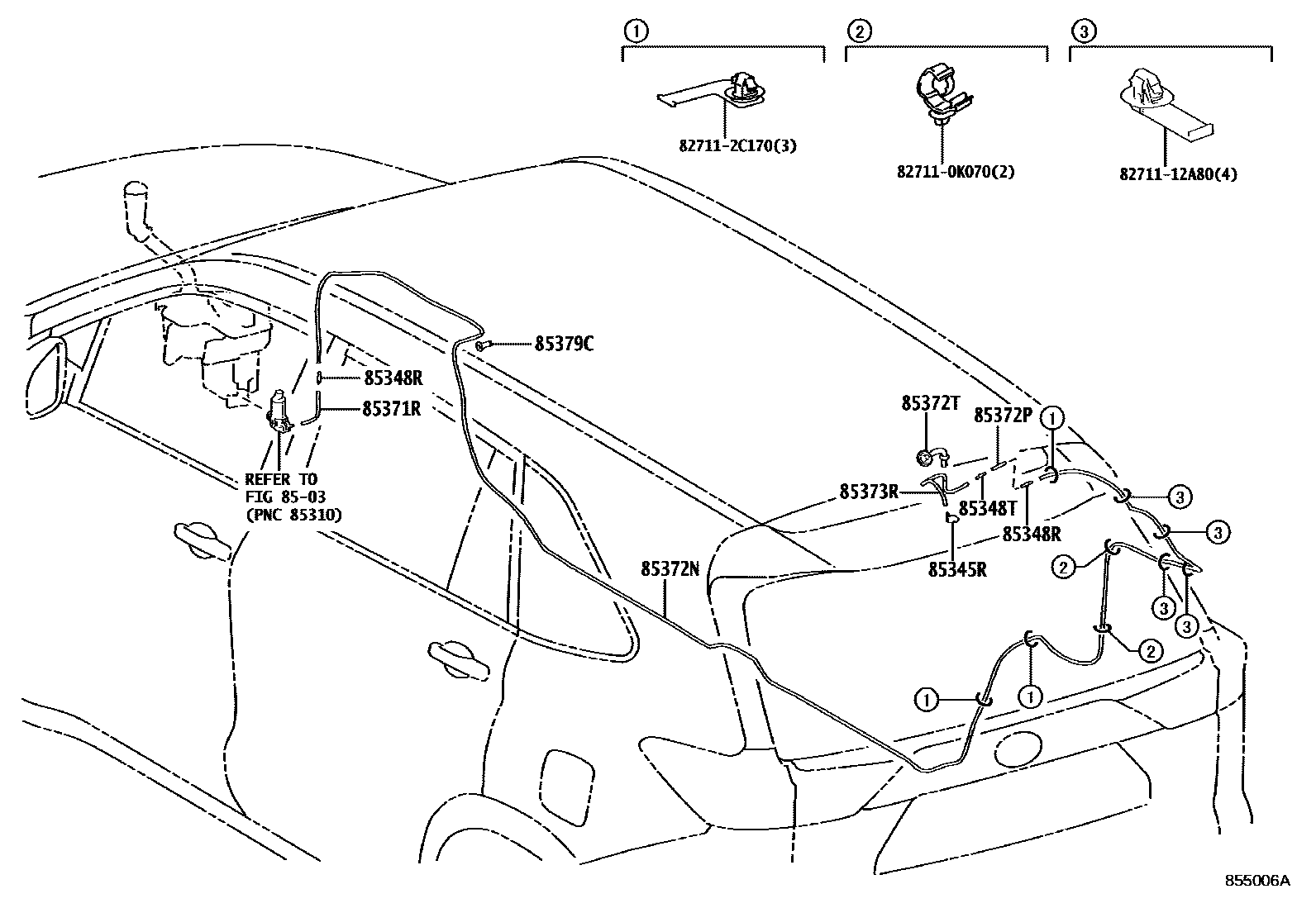

REAR WASHER

0001 1 0002 1

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85345RNOZZLE, REAR WASHER

main85391-VT010iMAGA10,MAGH10202211

85348RJOINT, REAR WASHER HOSE, NO.1

main85349-89122×2iMAGA10,MAGH10..IDNP202211

85348TJOINT, REAR WASHER HOSE, NO.2

main85349-89122iMAGA10,MAGH10202211

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90068-33419iMAGA10,MAGH10..IDNP202211

L=110

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90068-59183iMAGA10,MAGH10..IDNP202211

L=5440

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90068-33394iMAGA10,MAGH10..IDNP202211

L=40

85372TGROMMET, WASHER

main85373-0K010iMAGA10,MAGH10202211

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90068-59147iMAGA10,MAGH10202211

L=315

85379CGROMMET, REAR WASHER HOSE NO.1

main85379-16180iMAGA10,MAGH10..IDNP202211

827110K070WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-0K070

8271112A80WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12A80

827112C170WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-2C170

13 parts on this diagram · 2 diagrams in section
