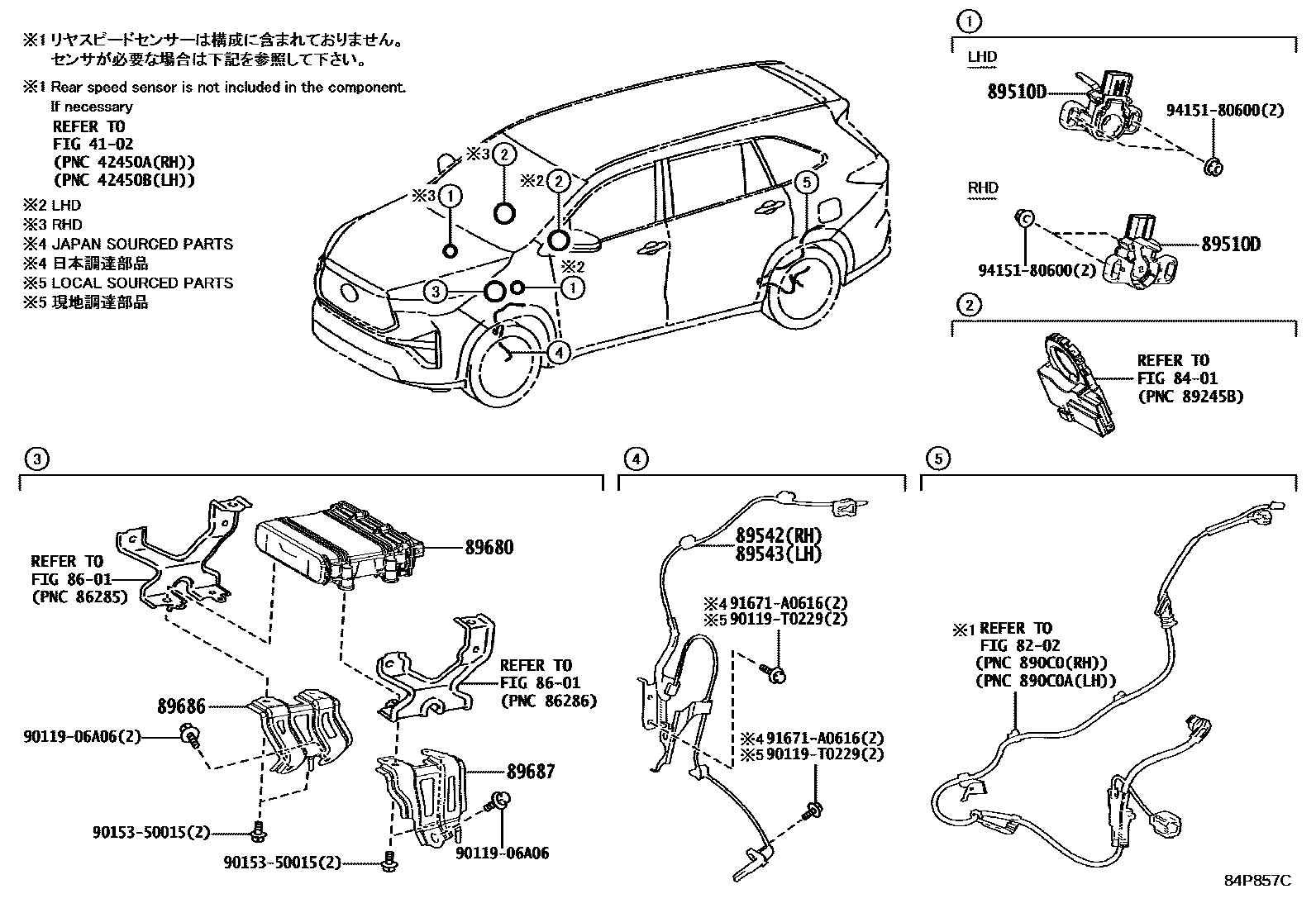

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-63010iMAGH10..LHD202211

main89510-63020iMAGH10..RHD202211

89542SENSOR, SPEED, FRONT RH

main89542-VT010iMAGA10,MAGH10..IDNP202211

main89542-VT020iMAGA10,MAGH10..IND202212

89543SENSOR, SPEED, FRONT LH

main89543-VT010iMAGA10,MAGH10..IDNP202211

main89543-VT020iMAGA10,MAGH10..IND202212

89680SUPPLY ASSY, BRAKE CONTROL POWER

main89680-48030iMAGH10202211

89686BRACKET, BRAKE CONTROL POWER SUPPLY, NO.1

main89686-F7010iMAGH10202211

89687BRACKET, BRAKE CONTROL POWER SUPPLY, NO.2

main89687-F7010iMAGH10202211

9011906A06

main90119-06A06

90119T0229

main90119-T0229

9015350015

main90153-50015

91671A0616

main91671-A0616

9415180600

main94151-80600

15 parts on this diagram · 1 diagram in section
