FUEL TANK & TUBE

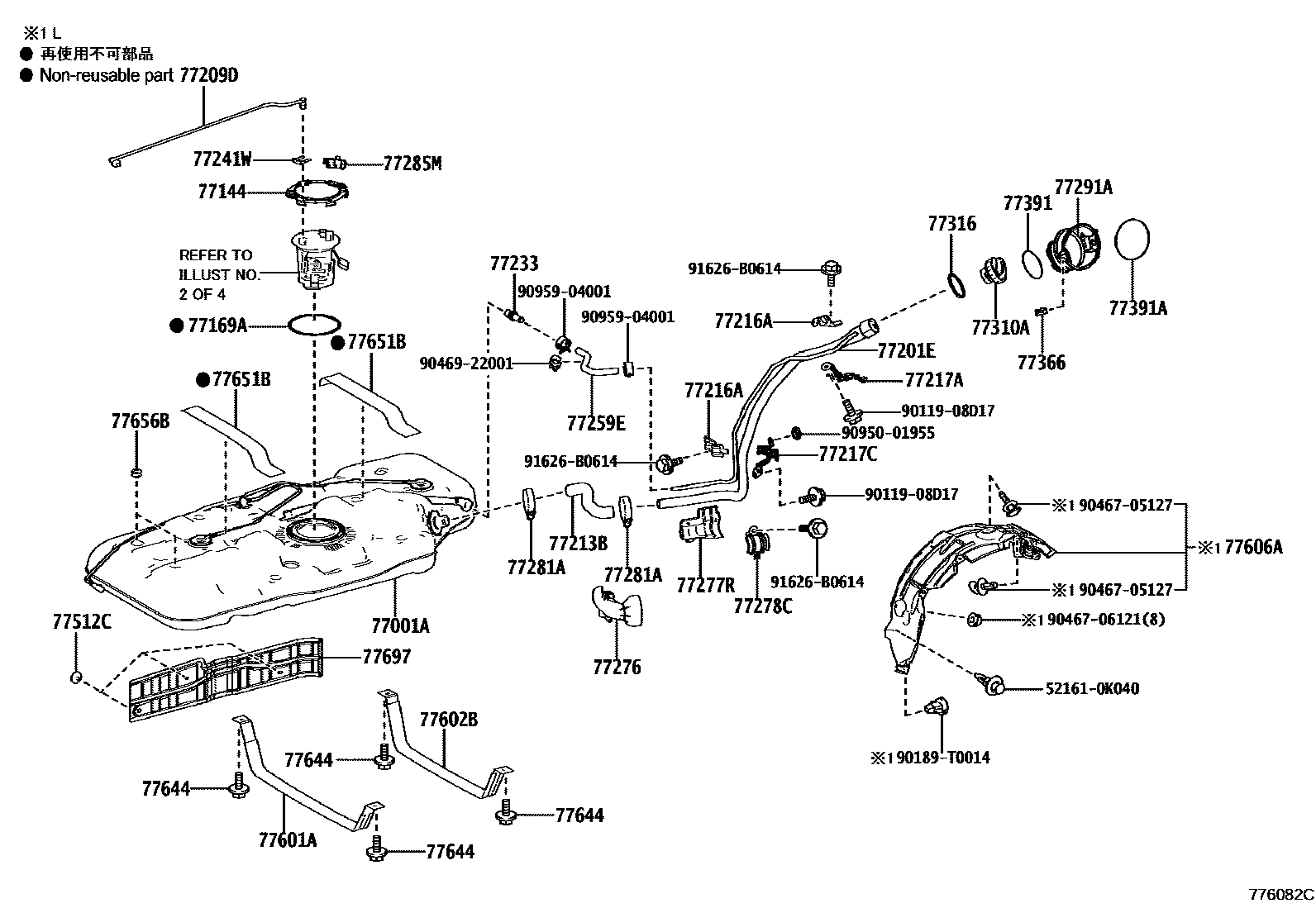

0001 1FUEL TANK 0002 1FUEL PUMP 0003 1FUEL TUBE 0004 1FUEL TUBE 0005 1FUEL LID OPENER 0006 1FUEL LID OPENER

77001ATANK SUB-ASSY, FUEL

main77001-VT010iMAGA10,MAGH10..IDNP202211

main77001-VT020iMAGA10,MAGH10..IND202212-202503

77144RETAINER, FUEL PUMP GAUGE

main77144-0K040iMAGA10,MAGH10202211

77169AGASKET, FUEL SUCTION TUBE SET

main77169-0K030iMAGH10..IDNP202211

main77169-47030iMAGA10,MAGH10..IND202211-202502

77201EPIPE SUB-ASSY, FUEL TANK FILLER

main77201-VT010iMAGA10,MAGH10..IDNP202211

main77201-VT020iMAGA10,MAGH10..IND202212

77209DTUBE SUB-ASSY, FUEL TANK MAIN

main77209-VT010iMAGH10..IDNP202211

main77209-VT020iMAGA10..IDNP202211

main77209-VT030iMAGH10..IND202212-202502

main77209-VT040iMAGA10..IND202212-202502

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-VT010iMAGA10,MAGH10..IDNP202211-202303

main77213-VT020iMAGA10,MAGH10..IND202212-202503

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-VT010×2iMAGA10,MAGH10..IDNP202211

main77216-VT020×2iMAGA10,MAGH10..IND202212

77217ASUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-VT010iMAGA10,MAGH10..IDNP202211

main77217-VT030iMAGA10,MAGH10..IND202212

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-VT020iMAGA10,MAGH10..IDNP202211

main77217-VT040iMAGA10,MAGH10..IND202212

77233JOINT, FUEL HOSE

main77233-VT010iMAGA10,MAGH10202211

77241WCLIP, TUBE JOINT

main77241-0K010iMAGA10,MAGH10202211

77259EHOSE, FUEL

main77259-VT030iMAGA10,MAGH10..IDNP202211

main77259-VT040iMAGA10,MAGH10..IND202212-202502

77276PROTECTOR, FUEL HOSE

main77276-VT010iMAGA10,MAGH10..IDNP202211

main77276-VT020iMAGA10,MAGH10..IND202212

77277RPROTECTOR, FUEL TANK FILLER PIPE

main77277-VT030iMAGA10,MAGH10..IDNP202211

main77277-VT040iMAGA10,MAGH10..IND202212

77278CPROTECTOR, FUEL TANK FILLER PIPE, NO.2

main77277-VT050iMAGA10,MAGH10..IDNP202211

main77277-VT060iMAGA10,MAGH10..IND202212

77281ACLAMP, FUEL FILLER PIPE

main90460-46005×2iMAGA10,MAGH10..IND202211-202410

77285MCLAMP, FUEL TUBE, NO.1

main77285-VT010iMAGA10,MAGH10202211

77291ASHIELD, FUEL TANK FILLER PIPE

main77291-VT010iMAGA10,MAGH10..IND202212

main77291-VT020iMAGA10,MAGH10..IDNP202211

77310ACAP ASSY, FUEL TANK

main77300-0K010iMAGA10,MAGH10..IND202408-202503

(L)

main77300-12020iMAGA10,MAGH10..IND202408-202503

(J)

77316GASKET, FUEL TANK CAP

main77316-0K020iMAGA10,MAGH10..IDNP202211

(L)

main77316-52040iMAGA10,MAGH10..IND202408-202503

(J)

77366SPRING, FUEL FILLER OPENING LID HINGE

main77360-30080iMAGA10,MAGH10202211

77391RING, FUEL INLET BOX

main77391-0K010iMAGA10,MAGH10202211

77391ARING, FUEL INLET BOX

main77391-0K020iMAGA10,MAGH10202211

77512CBRACKET, FUEL TANK

main77512-0K010×3iMAGA10,MAGH10..IDNP202211

main77512-35140×3iMAGA10,MAGH10..IND202212

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-VT010iMAGA10,MAGH10..IDNP202211

main77601-VT020iMAGA10,MAGH10..IND202212

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-VT010iMAGA10,MAGH10..IDNP202211

main77602-VT020iMAGA10,MAGH10..IND202212

77606APROTECTOR, FUEL TANK FILLER PIPE

main77277-VT010iMAGA10,MAGH10..IDNP..L202211

main77277-VT020iMAGA10,MAGH10..L..IND202212

77644BOLT, FUEL TANK

main90119-10A05×4iMAGA10,MAGH10202211

77651BCUSHION, FUEL TANK

main77651-VT010×2iMAGA10,MAGH10..IDNP202211

main77651-VT020×2iMAGA10,MAGH10..IND202212

77656BCUSHION, FUEL TANK, NO.6

main77656-33010×2iMAGA10,MAGH10..IND202212

main77656-VT010×2iMAGA10,MAGH10..IDNP202211

77697INSULATOR, FUEL TANK HEAT, NO.1

main77697-VT010iMAGA10,MAGH10..IDNP202211

main77697-VT020iMAGA10,MAGH10..IND202212

521610K040CUSHION, REAR BUMPER GUARD, NO.1

main52161-0K040

9011908D17

main90119-08D17

90189T0014

main90189-T0014

9046705127

main90467-05127

9046706121

main90467-06121

9046922001

main90469-22001

9095001955

main90950-01955

9095904001

main90959-04001

91626B0614

main91626-B0614
