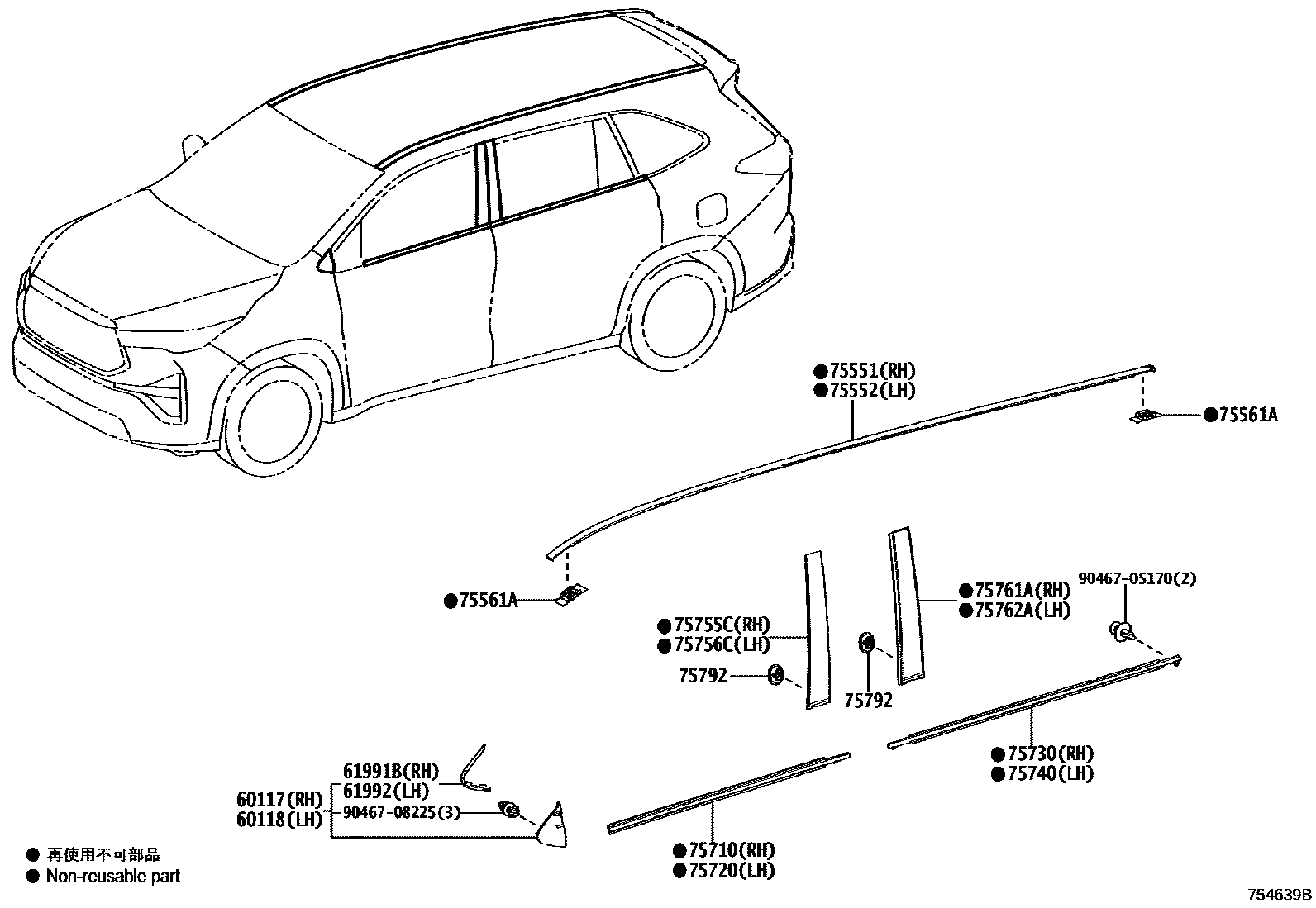

MOULDING
60117COVER SUB-ASSY, FRONT PILLAR, UPR RH
60118COVER SUB-ASSY, FRONT PILLAR, UPR LH
61991BPROTECTOR, FRONT PILLAR COVER, RH
61992PROTECTOR, FRONT PILLAR COVER, LH
75551MOULDING, ROOF DRIP SIDE FINISH, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,MOON ROOF-WITH(PANORAMA ROOF)
NO PAINT REQ.
NO PAINT REQ.
75552MOULDING, ROOF DRIP SIDE FINISH, LH
NO PAINT REQ.
main75552-VT020iMAGA10..08S..M;MAGA10..IDNP..(H,L);MAGA10,MAGH10..07S..(GCC,PH);MAGH10..08S..(H,L)..(GCC,IDN)202211-202302
NO PAINT REQ.
NO PAINT REQ.,MOON ROOF-WITH(PANORAMA ROOF)
NO PAINT REQ.
NO PAINT REQ.
75561ACLIP, ROOF DRIP SIDE FINISH MOULDING
75710MOULDING ASSY, FRONT DOOR BELT, RH
75720MOULDING ASSY, FRONT DOOR BELT, LH
75730MOULDING ASSY, REAR DOOR BELT, RH
75740MOULDING ASSY, REAR DOOR BELT, LH
75755CMOULDING, FRONT DOOR WINDOW FRAME, REAR RH
NO PAINT REQ.
NO PAINT REQ.
75756CMOULDING, FRONT DOOR WINDOW FRAME, REAR LH
NO PAINT REQ.
NO PAINT REQ.
75761AMOULDING, REAR DOOR WINDOW FRAME, FRONT RH
NO PAINT REQ.
NO PAINT REQ.
75762AMOULDING, REAR DOOR WINDOW FRAME, FRONT LH
NO PAINT REQ.
NO PAINT REQ.
75792CLIP, DOOR WINDOW FRAME MOULDING
(L)
(J)
9046705170
main90467-05170
9046708225
main90467-08225
18 parts on this diagram · 4 diagrams in section
