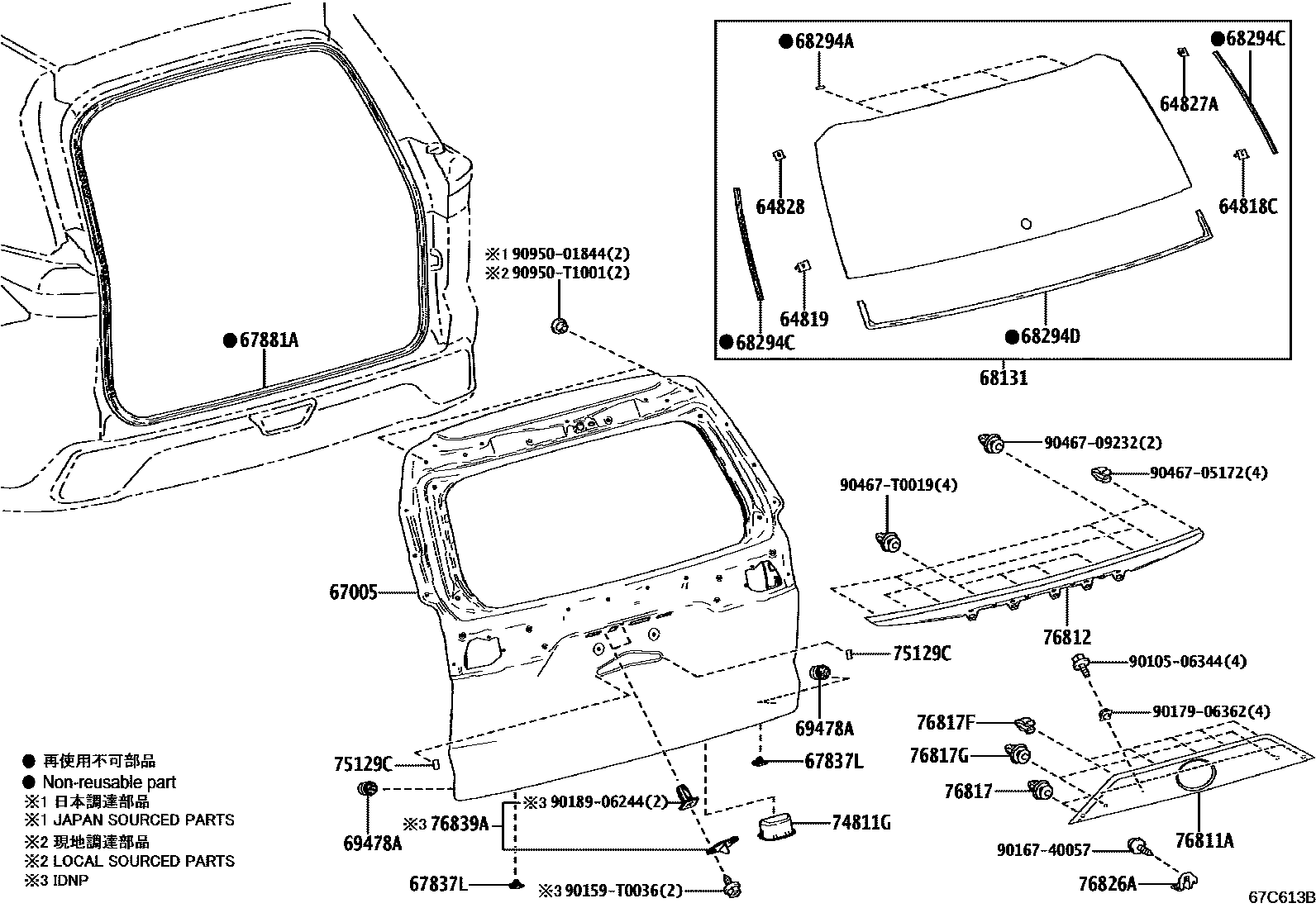

BACK DOOR PANEL & GLASS

0001 1DOOR PANEL 0003 1DOOR PANEL 0004 1DOOR TRIM

64818CSPACER, BACK WINDOW GLASS, NO.1

main64818-VT010iMAGA10,MAGH10..IDNP202211

main64818-VT020iMAGA10,MAGH10..IND202212

64819SPACER, BACK WINDOW GLASS, NO.2

main64819-VT010iMAGA10,MAGH10..IDNP202211

main64819-VT020iMAGA10,MAGH10..IND202212

64827ACLIP, BACK WINDOW GLASS, RH

main64827-VT010iMAGA10,MAGH10..IDNP202211

main64827-VT020iMAGA10,MAGH10..IND202212

64828CLIP, BACK WINDOW GLASS, LH

main64828-VT010iMAGA10,MAGH10..IDNP202211

main64828-VT020iMAGA10,MAGH10..IND202212

67005PANEL SUB-ASSY, BACK DOOR

main67005-VT010iMAGA10..GCC,IDN;MAGH10..07S..GCC;MAGA10..L..(PH,VN);MAGH10..08S..(GCC,IDN)202211

main67005-VT030iMAGA10..(H,M)..(MA,PH,VN);MAGH10..H..(IDN,MA,PH,TH,VN)202211

main67005-VT060iMAGA10,MAGH10..(L,M)..IND202212

main67005-VT070iMAGH10..H..IND202212

67837LSEAL, DOOR DUST PROOF

main67837-0K180iMAGA10,MAGH10..IND202212-202404

main67837-0K190iMAGA10,MAGH10..IDNP202211

67881AWEATHERSTRIP, BACK DOOR

main67881-VT010iMAGA10,MAGH10..IDNP202211

main67881-VT020iMAGA10,MAGH10..IND202212

68131GLASS, BACK DOOR

main68105-VT010iMAGA10,MAGH10..L..(IDN,PH)202211

main68105-VT020iMAGA10,MAGH10..L..(GCC,VN);MAGA10,MAGH10..(H,M)..(GCC,IDN,PH,TH,VN)202211

main68105-VT030iMAGA10,MAGH10..MA202211

main68105-VT060iMAGA10,MAGH10..L..IND202212

main68105-VT070iMAGH10..(H,M)..IND202212

68294ADAM, BACK DOOR GLASS ADHESIVE

main68294-26030iMAGA10,MAGH10..IDNP202211-202409

68294CDAM, BACK DOOR GLASS ADHESIVE, NO.1

main68294-VT010iMAGA10,MAGH10..IDNP202211

main68294-VT020iMAGA10,MAGH10..IND202212

68294DDAM, BACK DOOR GLASS ADHESIVE, NO.2

main68294-VT030iMAGA10,MAGH10..IDNP202211

main68294-VT040iMAGA10,MAGH10..IND202212

69478ACUSHION, BACK DOOR LOWER STOPPER

main69478-0K010iMAGA10,MAGH10..IDNP202211

main69478-0K020iMAGA10,MAGH10..IND202212

74811GHANDLE, DOOR PULL

main74811-0K040-C2iMAGH10..(H,M)..(IND,VN)202211

BLACK,TRIM2#,4#

main74811-0K040-C2iMAGA10..L,M;MAGH10..L..IND;MAGH10..GCC,IDN,PH,TH202211

BLACK,TRIM2#

main74811-0K040-C2iMAGA10..L,M;MAGH10..L..IND;MAGH10..GCC,IDN,PH,TH202211

BLACK,TRIM4#

75129CCUSHION, REAR LICENCE PLATE

main75129-13020iMAGA10,MAGH10202211

76811AGARNISH, BACK DOOR, OUTSIDE

main76811-VT901iMAGA10,MAGH10..IND202212

PAINT REQ.

main76811-VT902iMAGA10,MAGH10..IDNP202211

PAINT REQ.

76812GARNISH, BACK DOOR, OUTSIDE LOWER

main76812-VT010iMAGA10,MAGH10..L..IND202212

main76812-VT030iMAGH10..(H,M)..IND202212

main76812-VT040iMAGA10,MAGH10..IDNP..L202211

main76812-VT060iMAGA10,MAGH10..L..IDN202211

INDONESIA PACKAGE

76817CLIP, BACK DOOR OUTSIDE GARNISH

main62217-13010iMAGA10,MAGH10202211

76817FCLIP, BACK DOOR OUTSIDE GARNISH, NO.2

main90467-05172iMAGA10,MAGH10202211

76817GCLIP, BACK DOOR OUTSIDE GARNISH, NO.3

main90467-T0019iMAGA10,MAGH10202211

76826ARETAINER, BACK DOOR GARNISH, NO.1

main76826-VT010iMAGA10,MAGH10..IND202212

main76826-VT020iMAGA10,MAGH10..IDNP202211

76839ACOVER, BACK DOOR GARNISH

main76839-VT010iMAGA10,MAGH10..IDNP202211

9010506344

main90105-06344

90159T0036

main90159-T0036

9016740057

main90167-40057

9017906362

main90179-06362

9018906244

main90189-06244

9046705172

main90467-05172

9046709232

main90467-09232

90467T0019

main90467-T0019

9095001844

main90950-01844

90950T1001

main90950-T1001

31 parts on this diagram · 3 diagrams in section
