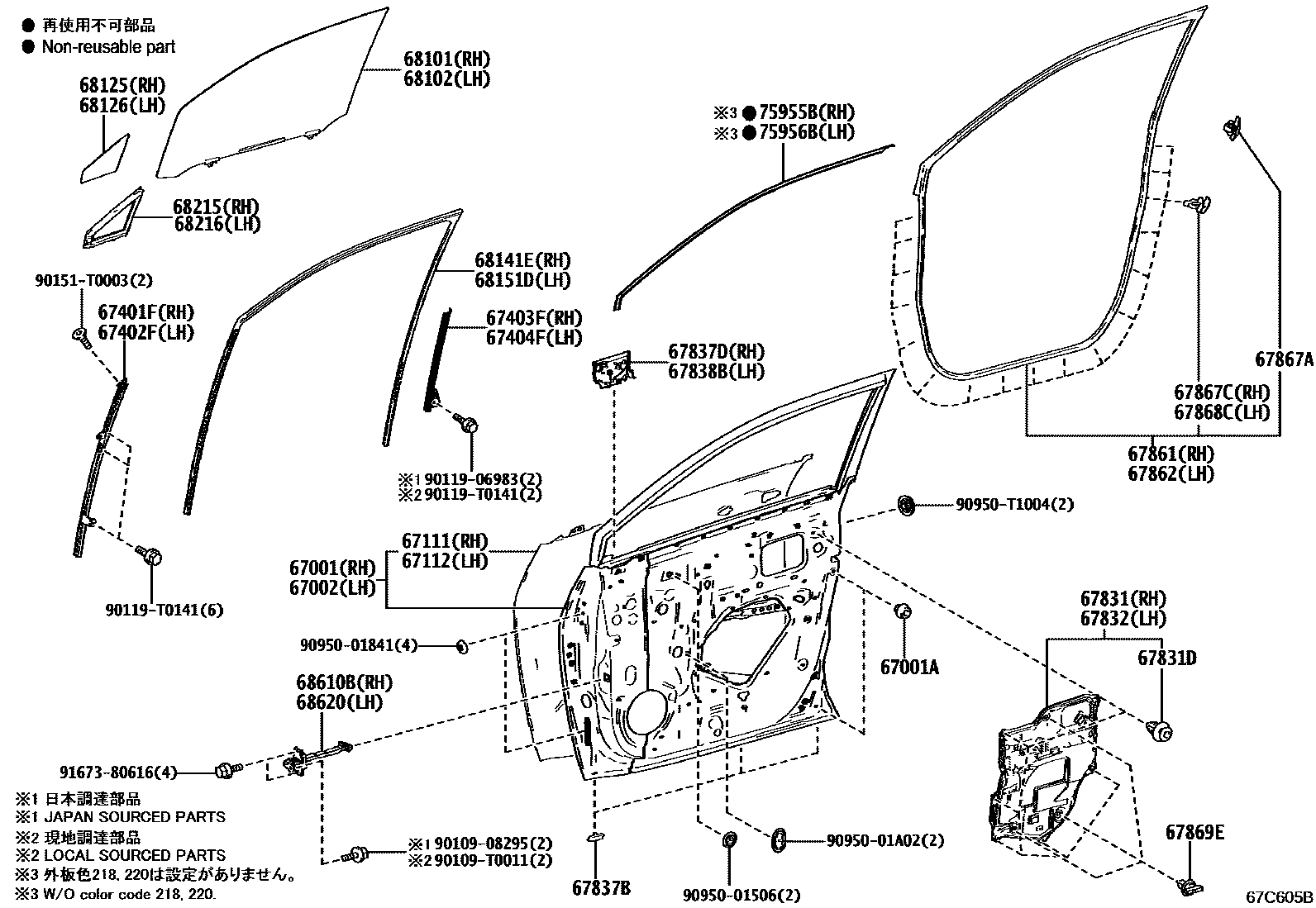

FRONT DOOR PANEL & GLASS
67001PANEL SUB-ASSY, FRONT DOOR, RH
67001ACUSHION, FRONT DOOR PANEL
67002PANEL SUB-ASSY, FRONT DOOR, LH
67111PANEL, FRONT DOOR, OUTER RH
67112PANEL, FRONT DOOR, OUTER LH
67401FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH
67402FFRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH
67403FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER RH
67404FFRAME SUB-ASSY, FRONT DOOR, REAR LOWER LH
67831COVER, FRONT DOOR SERVICE HOLE, RH
67831DCLIP(FOR FRONT DOOR SERVICE HOLE COVER)
67832COVER, FRONT DOOR SERVICE HOLE, LH
67837BSEAL, FRONT DOOR DUST PROOF
67837DSEAL, FRONT DOOR VENT, RH
67838BSEAL, FRONT DOOR VENT, LH
67861WEATHERSTRIP, FRONT DOOR, RH
67862WEATHERSTRIP, FRONT DOOR, LH
67867ACLIP, DOOR WEATHERSTRIP(FOR FRONT DOOR)
67867CRETAINER, FRONT DOOR WEATHERSTRIP, RH
67868CRETAINER, FRONT DOOR WEATHERSTRIP, LH
67869ECLIP, FRONT DOOR WEATHERSTRIP
68101GLASS SUB-ASSY, FRONT DOOR, RH
68102GLASS SUB-ASSY, FRONT DOOR, LH
68125GLASS, FRONT DOOR FIX WINDOW, RH
68126GLASS, FRONT DOOR FIX WINDOW, LH
68141ERUN, FRONT DOOR GLASS, RH
68151DRUN, FRONT DOOR GLASS, LH
68215WEATHERSTRIP, FRONT DOOR FIX WINDOW, RH
68216WEATHERSTRIP, FRONT DOOR FIX WINDOW, LH
68610BCHECK ASSY, FRONT DOOR, RH
68620CHECK ASSY, FRONT DOOR, LH
75955BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER RH
75956BTAPE, BLACK OUT FRONT DOOR, OUTER UPPER LH
0 OR 1PIECE,REF.ILL.
9010908295
main90109-08295
90109T0011
main90109-T0011
9011906983
main90119-06983
90119T0141
main90119-T0141
90151T0003
main90151-T0003
9095001506
main90950-01506
9095001841
main90950-01841
9095001A02
main90950-01A02
90950T1004
main90950-T1004
9167380616
main91673-80616
43 parts on this diagram · 2 diagrams in section
